Description
Description

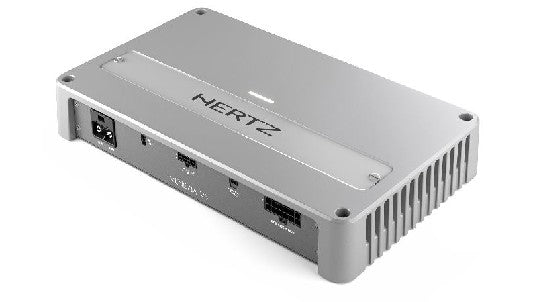

Venezia V6 24V option is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation – enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 24V is fully protected by short-circuit, overload, and thermal protections – with auto-resetting.
Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
Balanced fully-differential input circuitry to reject electromagnetic disturbances.
Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

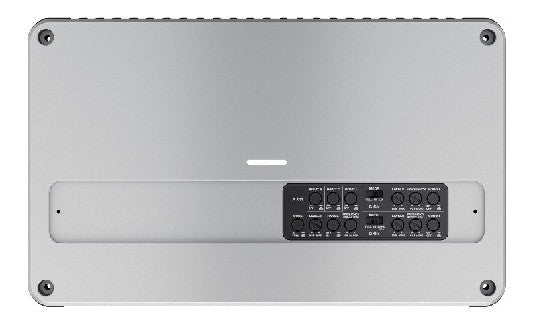

Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
Short-circuit, overload, and thermal protections with auto-resetting.
Plug&Play Input and Output connections with safe-lock.
Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
Specifications
Identification
| MPN | 78250036 |
|---|---|
| Barcode | 8018823138949 |
Power
| Channel Configuration | 6 - 5 - 4 - 3 (Configurable) |
|---|---|
| Amplifier Class | D-Class |
| Power per Channel (6ch @ 4Ω) | 160 W x 6 |
| Power per Channel (6ch @ 2Ω) | 290 W x 6 |
| Power (5ch @ 4Ω) | 160 W x 4 + 580 W x 1 |
| Power (4ch @ 4Ω) | 160 W x 2 + 580 W x 2 |
| Power (3ch @ 4Ω) | 580 W x 3 |
| Total RMS Power | 1740 W @ 28.8 VDC, 1% THD |
Audio Performance
| Frequency Response | 10 Hz – 42 kHz |
|---|---|
| THD | <0.06% @ 100 Hz, 4Ω |
| Signal-to-Noise Ratio | 100 dB (A-weighted @ 1V) |
| Input Sensitivity | 0.2 – 5 Vrms |
Power Supply
| Operating Voltage | 22 – 33 VDC |
|---|
Dimensions
| Length | 330 mm (13 in.) |
|---|---|
| Width | 300 mm (11.18 in.) |
| Height | 200 mm (7.87 in.) |
| Depth | 170 mm (6.7 in.) |
| Weight | 3.72 kg (8.2 lb) |
Certifications & Protection
| Protection Rating | IPX2 (Vertical Installation, Connections Facing Down) |
|---|---|
| Salt Fog Resistance | ASTM-B117 Compliant |
