Hertz Audio HMP Series 600w 4-Channel Amplifier - HMP 4D
Regular price
$39999
Total:
Unit price
SKU:
HTZ/78270020
Regular price
$39999
Total:
Unit price
Description
Description

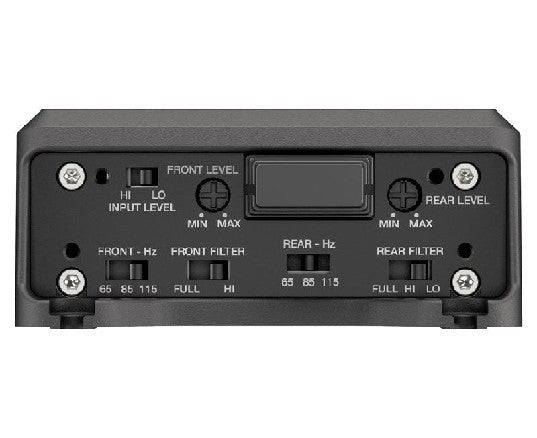

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 4D amplifier is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.
Specifications
Specifications
Identification
| MPN | 78270020 |
|---|---|
| Barcode | 8018823122146 |
Power
| Channel Configuration | 4 - 3 - 2 (Configurable) |
|---|---|
| Power (4ch @ 4Ω) | 50 W x 4 |
| Power (4ch @ 2Ω) | 65 W x 4 |
| Power (3ch @ 4Ω) | 50 W x 2 + 130 W x 1 |
| Power (2ch @ 4Ω) | 130 W x 2 |
| Minimum Load | 2 Ω (4ch) / 4 Ω (2ch) |
Audio Performance
| Frequency Response | 10 Hz – 30 kHz |
|---|---|
| THD | 0.2% @ 100 Hz, 4Ω |
| Signal-to-Noise Ratio | 95 dB (A-weighted @ 1V) |
| Damping Factor | 45 @ 100 Hz |
| Input Sensitivity (Low) | 0.2 – 5 V |
| Input Sensitivity (High) | 0.8 – 20 V |
Power Supply
| Operating Voltage | 11 – 15 VDC |
|---|---|
| Fuse | 1 x 15 A |
| Standby Current | 0.04 mA |
Dimensions
| Length | 223 mm (8.78 in.) |
|---|---|
| Width | 100.5 mm (3.96 in.) |
| Height | 43.6 mm (1.72 in.) |
| Weight | 1.35 kg (2.98 lb) |
