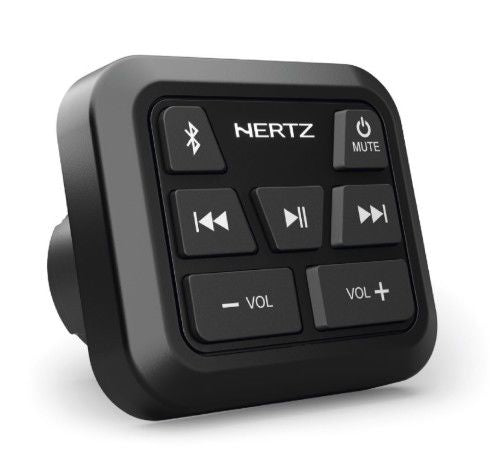

Hertz Audio HMR BT Bluetooth Receiver
Description
Description
Thanks to the IP67 water resistance rating, the HMR BT Bluetooth® audio controller/receiver is ideal for small boat and Powersports applications. When connected directly to an amplifier, it can be used as a stand-alone source unit/receiver or it can provide Bluetooth® connectivity to any source unit with line-level inputs. The white LED backlit push-button controls are always well visible at any hour of the day.
Ready to have some serious fun with the HMR BT Bluetooth® Audio Controller/Receiver? HMR BT features Bluetooth® v5.0 and Qualcomm® apt audio codec, assuring hi-performance wireless audio with a connection range of up to 35 ft. (10 m), allowing your smartphone to be kept safely away from water.
Specifications
Specifications
Identification
| MPN | 78333015 |
|---|---|
| Barcode | 8018823138475 |
Power
| Operating Voltage | 8 - 28 VDC |
|---|---|
| Fuse | 2 A |
Connectivity
| Bluetooth | 5.0 - Qualcomm aptX Low Latency, CD-Quality Streaming |
|---|---|
| Maximum Connection Range | 10 m / 30 ft. |
| Remote Control Compatibility | HMC U1 |
| Remote Out Voltage | 8 - 24 VDC |
Audio Outputs
| Line Outputs | 1x Stereo RCA (L+R) |
|---|---|
| Preamp Output Voltage / Impedance | 4V RMS / <100 Ω |
| Frequency Response | 20 Hz - 18 kHz (±1 dB) |
| Signal-to-Noise Ratio (@ 4Vrms, THD <1%) | 93 dB (20 Hz - 20 kHz) |
Dimensions
| Mounting Hole Diameter | 1.77 in. |
|---|---|
| Mounting Method | Panel Mount (4 Screws) or U-Bracket |
Certifications & Protection
| Front Panel Protection Rating | IP67 |
|---|---|
| Operating Temperature Range | -10°C - 50°C |
