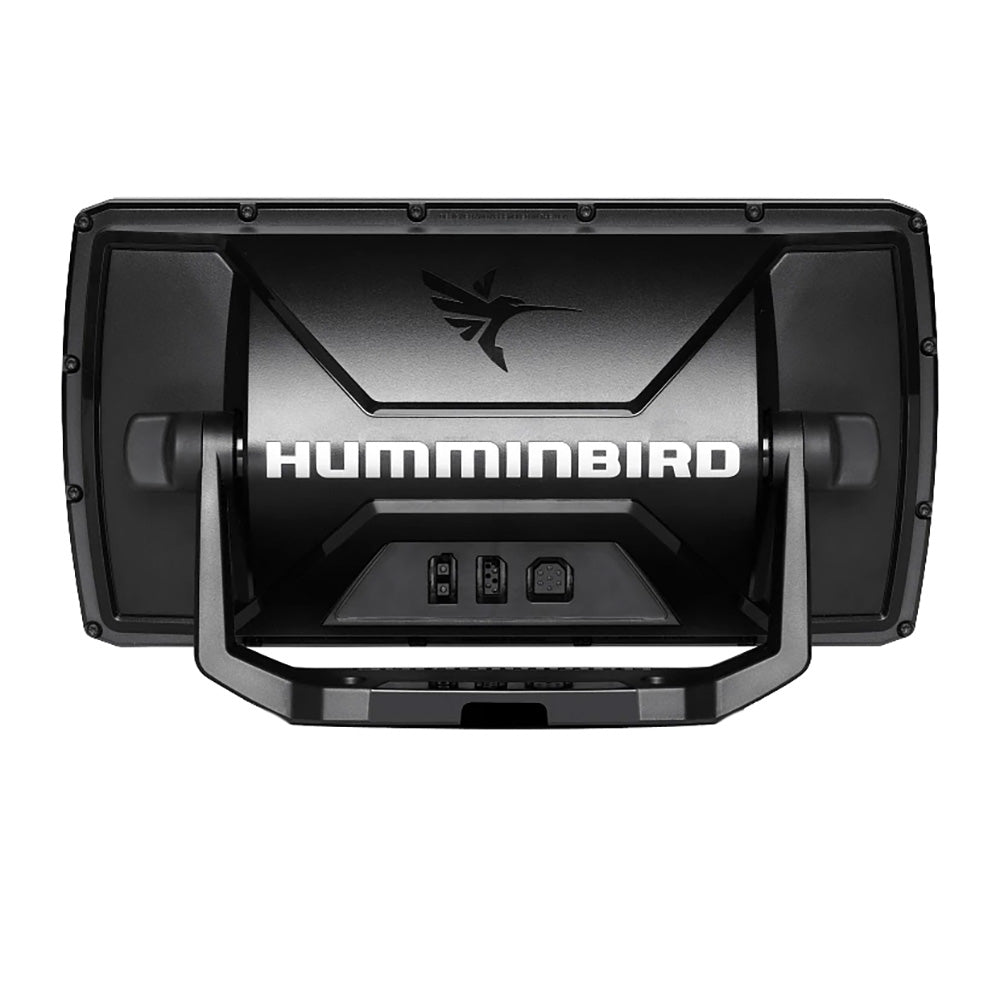

Humminbird HELIX 7 GPS CHIRP SI G4
Description
Description

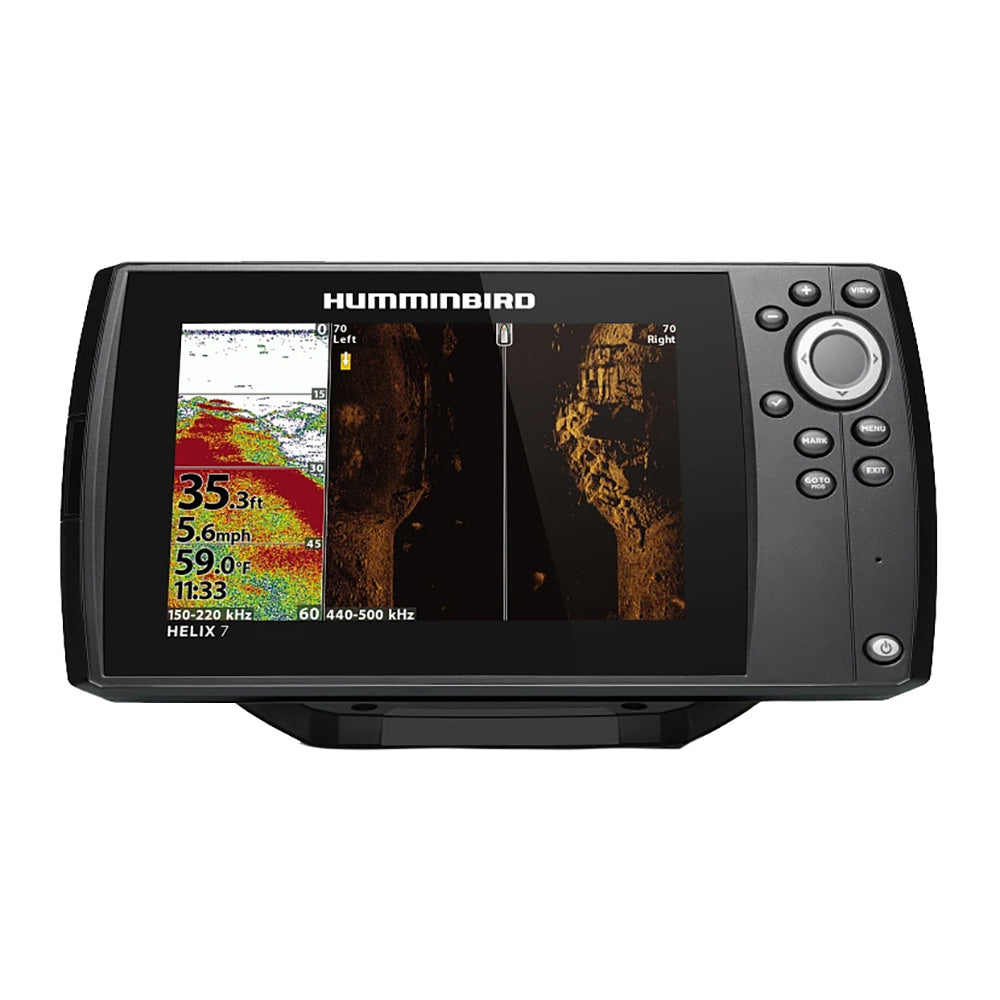

HELIX 7 GPS CHIRP SI G4
The HELIX 7 SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.
Features:
- Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition.
- CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
- Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
- Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
- Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
- 1-Year Limited Warranty
Specifications
Specifications
Identification
| MPN | 411920-1 |
|---|---|
| Barcode | 082324058288 |
Lighting
| Display Size - Diagonal | 7" |
|---|---|
| Display Type | Color TFT |
General
| Display Pixel Matrix | 1024H x 600V |
|---|---|
| Transducer Included | XNT 9 HW SI T |
| Compatible With | Minn Kota US2 Sonar, AIS, AutoPilot |
| Features | Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 53 kHz, 50/Low Airmar CHIRP |
| Live Sonar-Coverage | 20 degrees x 120 degrees |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455 kHz |
| CHIRP - Imaging Frequencies Supported | 455 kHz (420-520 kHz) |
| Interface | Keypad Control |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 45, 50/20,000 |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Target Separation | 2.5" |
| Upgradable Software | Yes |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
Physical
| Depth-Sonar | 3,500' (optional 50 kHz), 1,200 ft (standard transducer) |
|---|---|
| Depth-Down Imaging | 400 ft (455 kHz) |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54 in W x 5.8 in H x 3.68 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 10.54 in W x 5.44 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| Display Colors Grayscale | 16-Bit |
Performance
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz) |
|---|---|
| Speed | Included |
Electrical
| Power Draw | 800 mA |
|---|---|
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Noise Rejection | 10 Steps |
Certifications & Protection
| Interference Rejection | 6 Modes |
|---|---|
| Warranty | One-Year Warranty |
