XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™

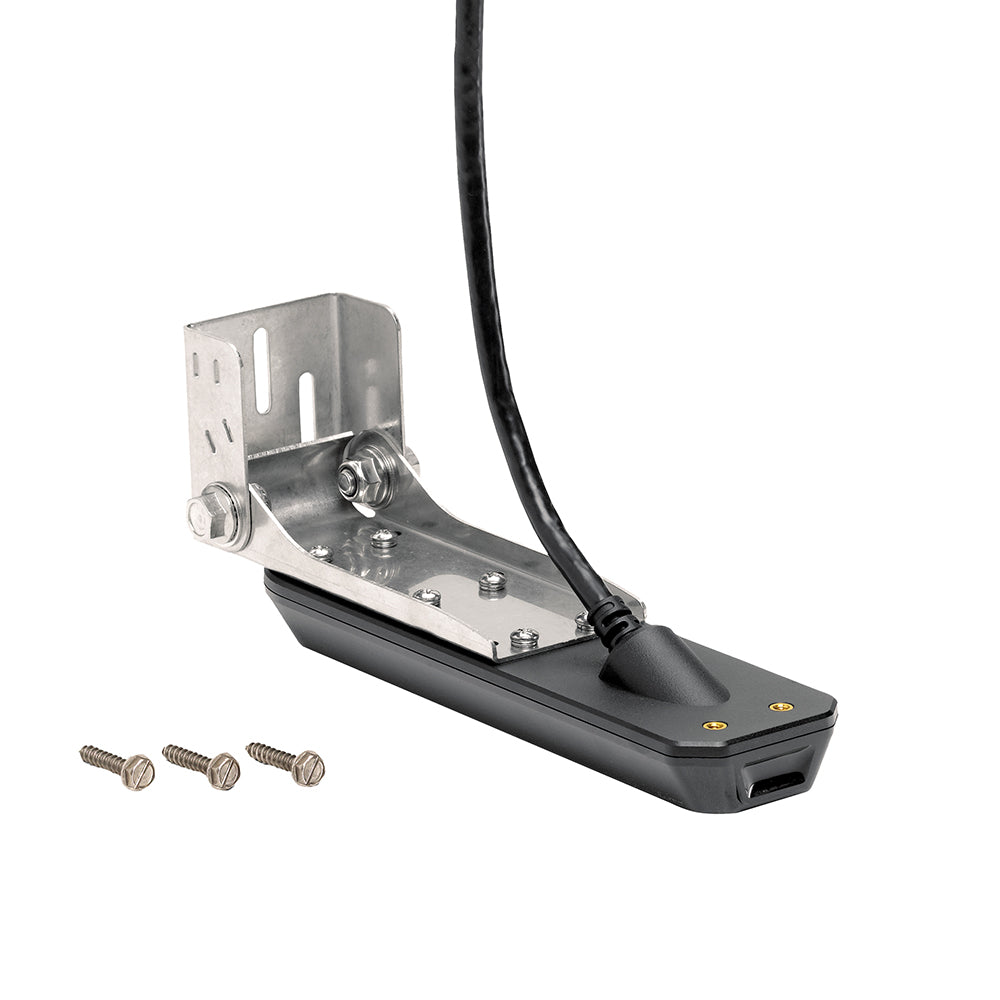

MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.
Features:
- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
Specifications
Specifications
Identification
| MPN | 710292-1 |
|---|---|
| Barcode | 082324053252 |
General
| Dual Spectrum CHIRP Frequencies | Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz |
|---|
Physical
| Dual Spectrum CHIRP Max Depth | 1200ft (365m) |
|---|---|
| MEGA Down Imaging Frequencies - Max Depth | 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) |
Performance
| MEGA Side Imaging Frequencies - Max Range (side-to-side) | 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) |
|---|
