A DMA-optimized, long excursion woofer design and excellent power handling ensures your music will come through loud and clear at speed, or at anchor.
A 0.8-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-650-X Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold as a pair.
Specifications
Specifications
Identification
| MPN | 010-03089-00 |
|---|---|
| Barcode | 699440937122 |
Dimensions
| Size | 6.5" |
|---|---|
| Diameter | 6.90" (175 mm) |
| Depth | 3.94" (100 mm) |
| Tweeter Size | 0.8" (20 mm) |
Mounting Dimensions
| Mounting Depth Clearance | 3" (76 mm) |
|---|---|
| Frontal Grille Protrusion | 0.94" (24 mm) |
| Mounting Hole | 5"-5.25" (127-133 mm) |
| Bolt Hole Circle | 6.13" (156 mm) |
Audio
| Speaker Type | Coaxial |
|---|---|
| Continuous Power Handling (RMS) | 75 W |
| Sensitivity (SPL @ 1 W/1 m) | 89.5 dB |
| Frequency Response (+/- 3 dB) | 55 Hz-25 kHz |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power (RMS) | 25-150 W/Channel |
| Speaker Connections | Spade Connectors |
| LED Lighting | No |
Materials
| Color | White Classic |
|---|---|
| Cone Material | Injection-molded, mica-filled polypropylene |
| Tweeter Type | Silk Dome |
Warranty/Certifications
| Warranty | 3 Years |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
JL Audio
010-03089-00
JL Audio

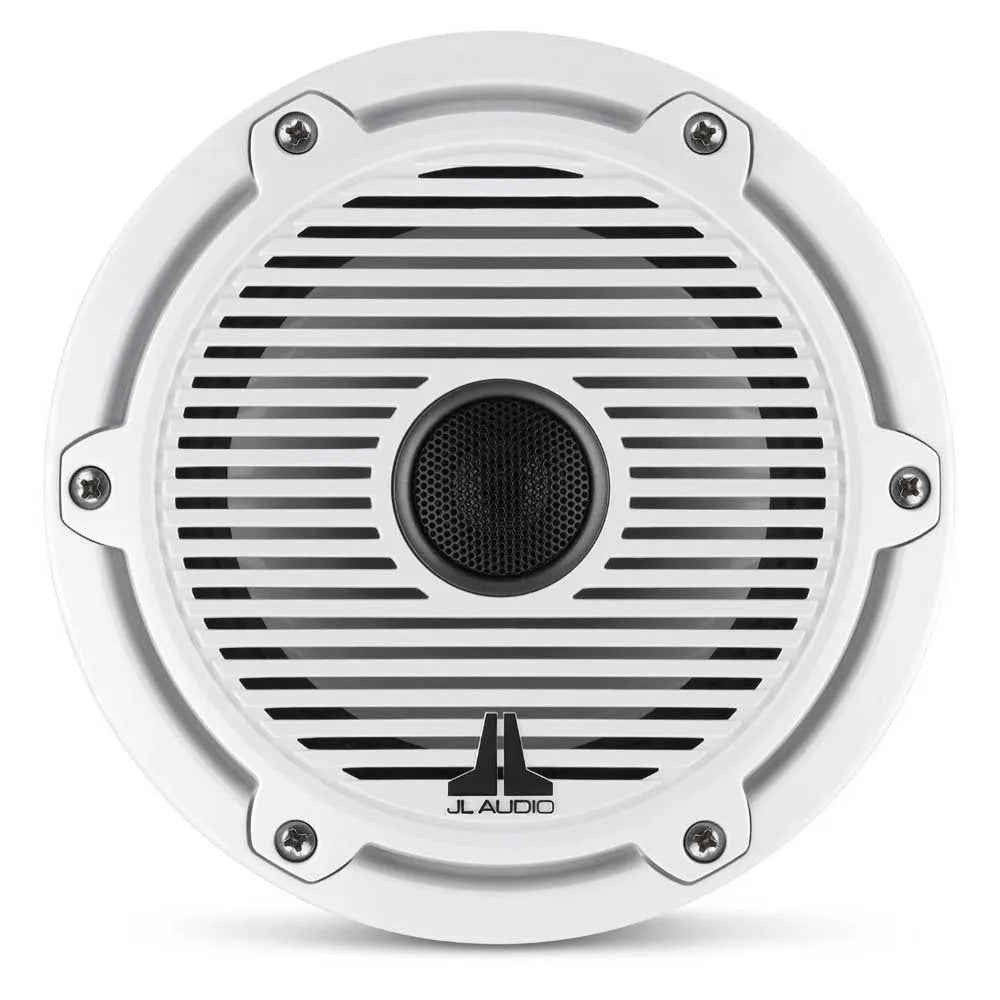

JL Audio M6 Series 6.5" Marine Coaxial Speakers w/Gloss White Classic Grille - M6-650X-C-3Gw
