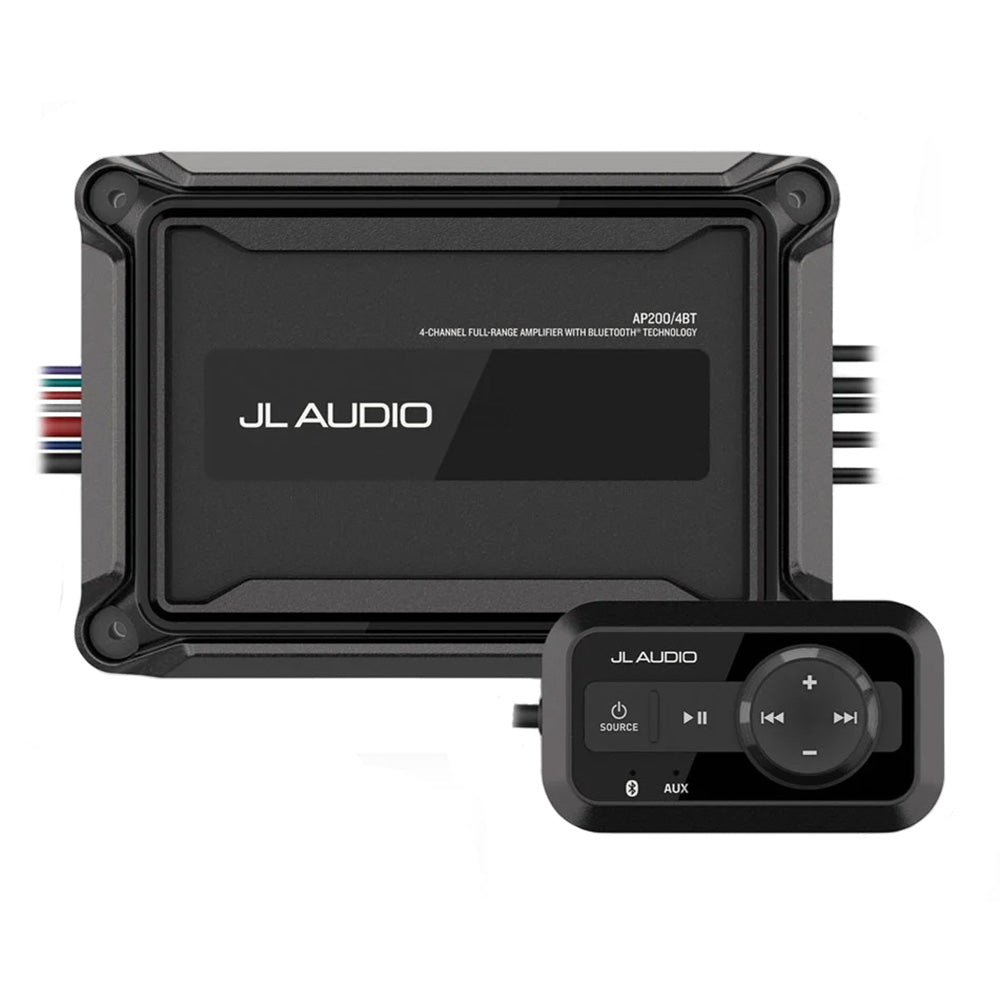

AP 4 Channel Compact Marine Amplifier with Bluetooth® - AP200/4BT
POWER THE MOMENT
With this tough and ultracompact 4-channel amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.
- Efficient Class-D Design
- Stream Audio with Bluetooth Technology
- Includes Wired Remote
- Ignition Protected and IP67-Rated (Excluding Cables)
- Compact Build
Class-D Amplifier Technology
The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
Stream On The Go
This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface-, or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski, or overland vehicle.
Rugged Design
The included remote is IPX7-rated, and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
Specifications
Specifications
Identification
| MPN | 010-03431-00 |
|---|---|
| Barcode | 729218924549 |
General
| Channels | 4 |
|---|---|
| Physical Height | 1.85" |
| Physical Width | 7.28" |
| Physical Depth | 4.9" |
| Operating Voltage | 9-16 VDC |
| Water and Dust Rating | IP67 |
Audio
| Amplifier Class | Class D |
|---|---|
| RMS Power @ 4 OHM | 40 W x 4/100 W x 2 (Bridged) |
| RMS Power @ 2 OHM | 4 Channel: 50 W x 4 |
| Frequency Response | 20hz - 20kHz |
| Input Sensitivity | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Input Impedance | 11 kΩ (High) 20 kΩ (Low) |
| Current Consumption (idle) | 700-750mA |
| Fuse Rating | 35A |
| Recommended Fuse Types | AFS, AGU, or MaxiFuse™ |
| Min. Copper Power/Ground Wire | 4 awg Wire |
| Protection Circuits | Input under/over voltage, Over temperature, Output short circuit |
