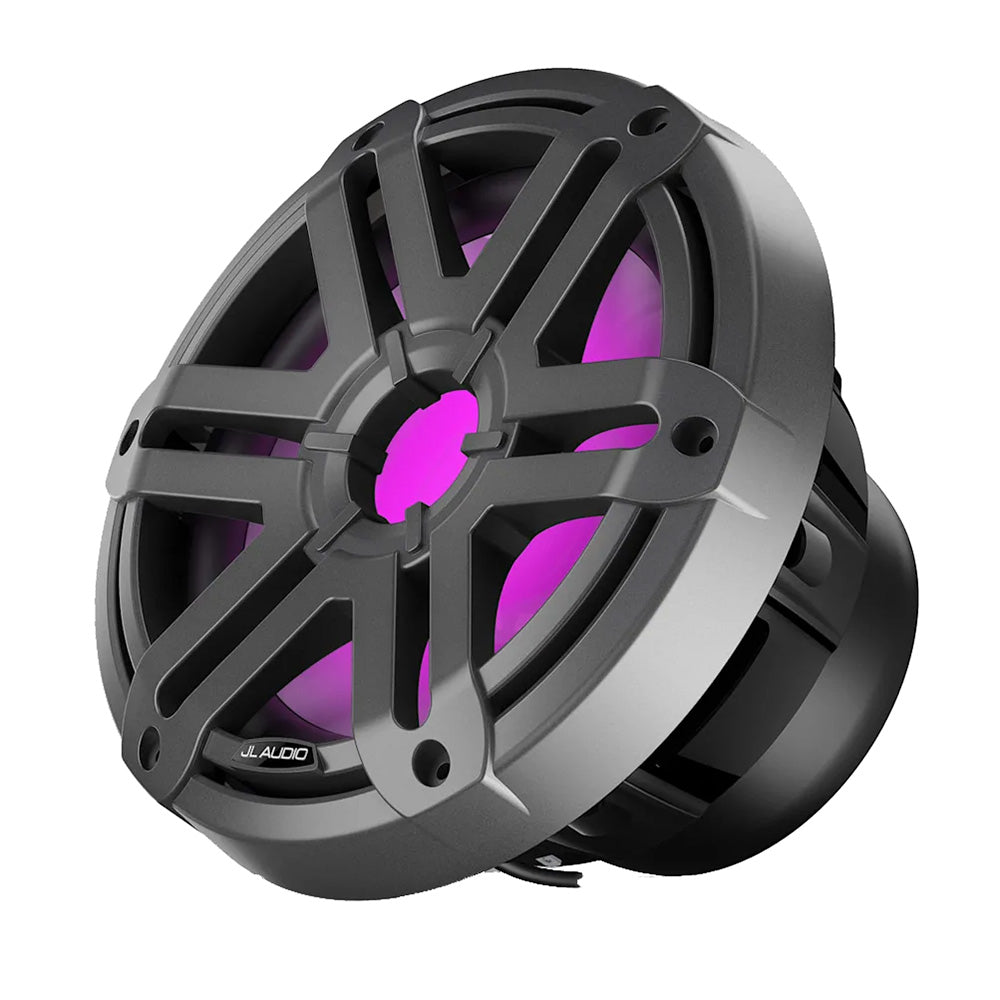

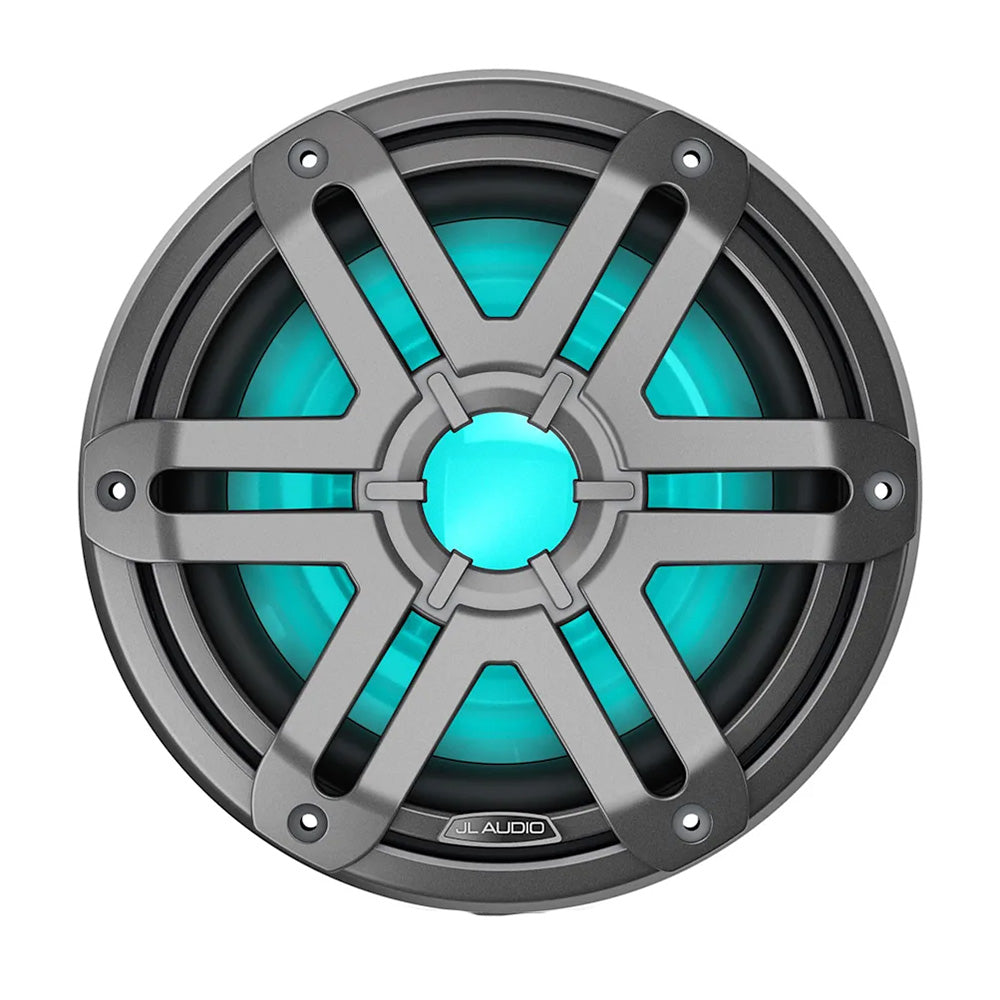

M200 Marine Subwoofer 10" with LED & Grey Sport Grille
Enhance your experience on the water with JL Audio M200 subwoofers, which bring M-series bass for less.
Features:
- 250-WATT RMS POWER HANDLING
- RGB LED LIGHTING
- LONG-EXCURSION DESIGN DELIVERS DEEP AND POWERFUL BASS
- INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)
- MARINE-GRADE CONSTRUCTION
BUILT TO IMPRESS
This 10-inch subwoofer features an injection-molded polypropylene cone and rubber surround with a marine-grade synthetic spider to keep the cone under control for tight bass response.
RGB LED LIGHTING
Enhance your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or the ActiveCaptain® app.
INCREDIBLE PERFORMANCE
With 250-watt RMS power handling and a long-excursion design, this subwoofer delivers powerful and deep bass with less distortion.
CUSTOMIZABLE GRILLE OPTIONS
Match the look of your vessel with white or gray color options along with interchangeable grilles (sold separately).
SALT AND SUN PROTECTED
Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun.
INFINITE BAFFLE DESIGN
M200 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind them.
Mounting Dimensions:
General:
Networking & Connections:
Specifications
Specifications
Identification
| MPN | 010-04759-01 |
|---|
Physical
| Mounting depth clearance | 5.16" (131 mm) |
|---|---|
| Mounting hole | 8.75" (222 mm) |
| Bolt hole circle | 9.72" (247 mm) |
| Sizes | 10" |
| Color | Gray Sport |
| Physical dimensions (Diameter) | 10.84" (275 mm) |
| Physical dimensions (Depth) | 5.16" (131 mm) |
| Weight | 10.69 lbs (4.85 kg) |
Audio
| Frontal grille protrusion | 1.85" (47 mm) |
|---|---|
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Recommended amplifier power (RMS) | 250 W |
| Cone material | Injection-molded, polypropylene |
| Speaker connections | Spade connectors |
Certifications & Protection
| Warranty | 3 years |
|---|
General
| Water and dust rating | IPX6 |
|---|---|
| Compass-safe distance | 116" (295 cm) |
| LED connection | Flying lead with waterproof connector, 4-conductor 20 AWG wire |
Performance
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
|---|---|
| Nominal impedance | 4 Ω |
Lighting
| LED lighting | yes (RGB) |
|---|
Electrical
| LED supply voltage | 10 - 14.4 VDC |
|---|---|
| LED load current @ 14.4 VDC (max) | 220 mA |
