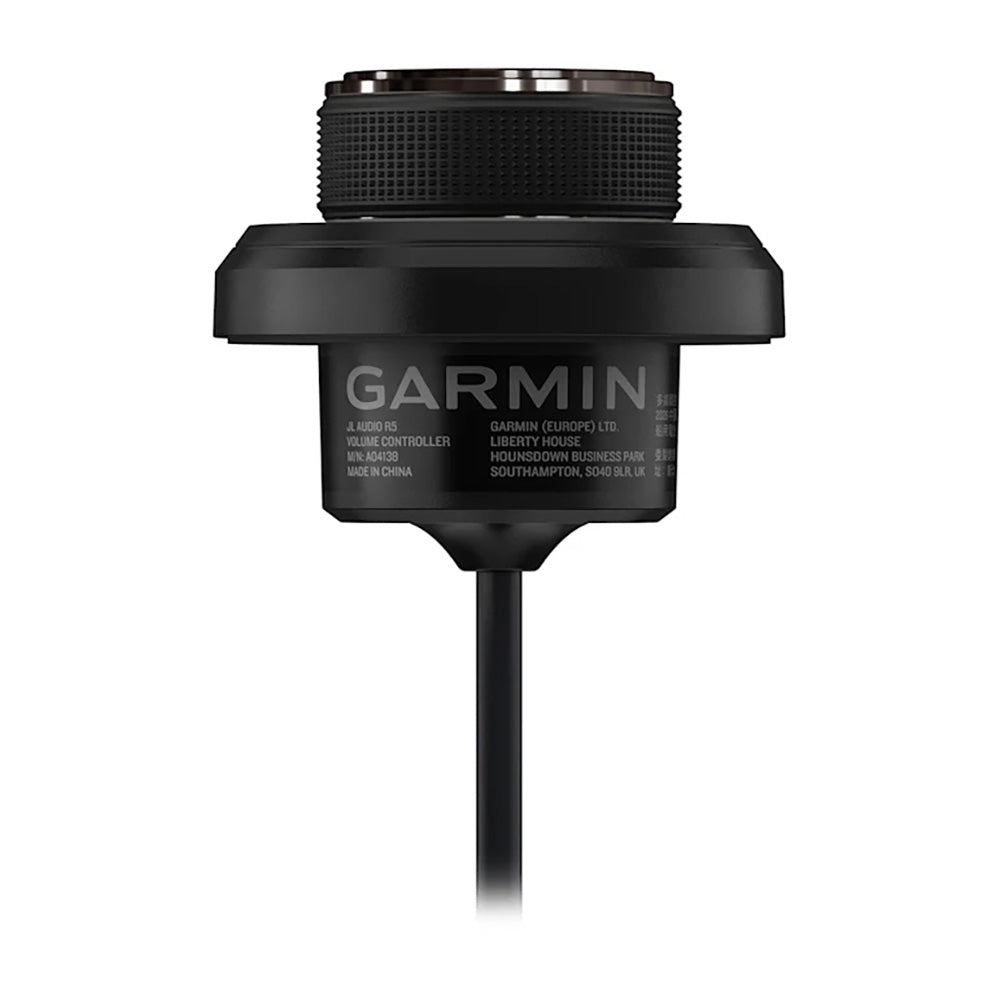

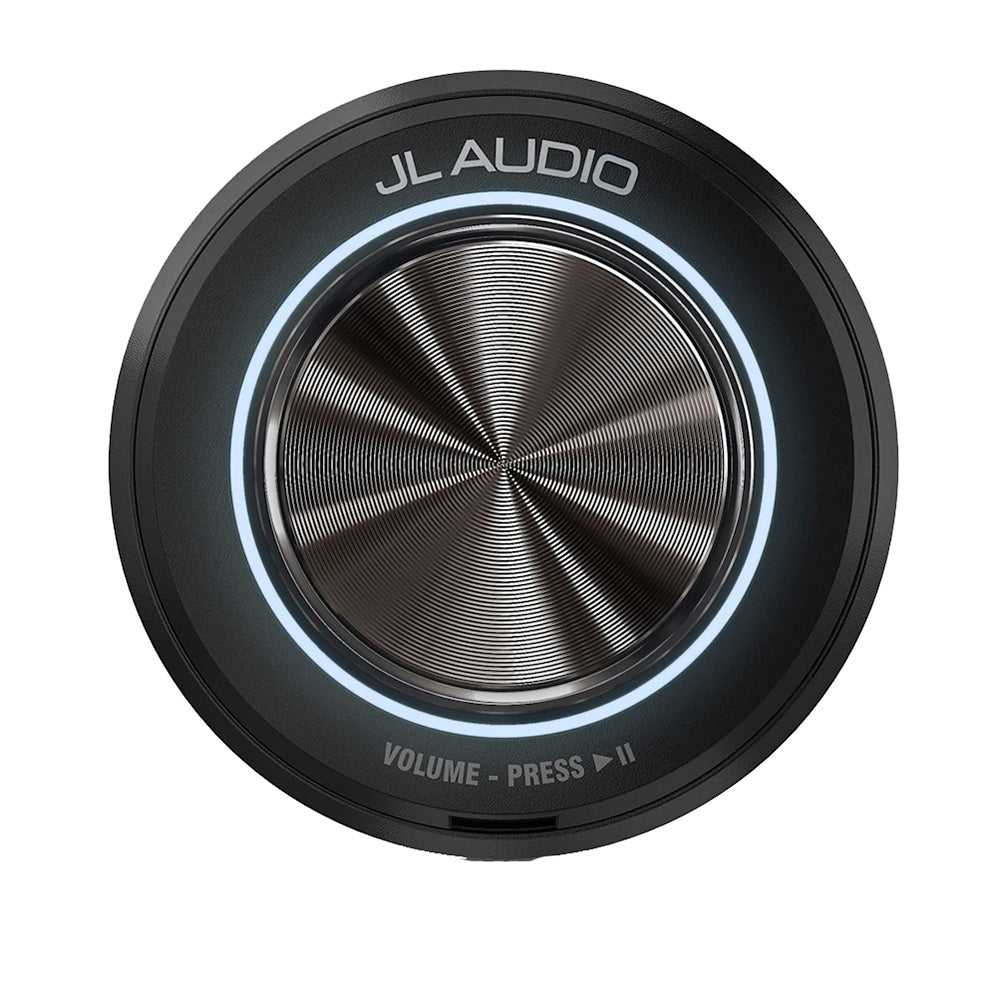

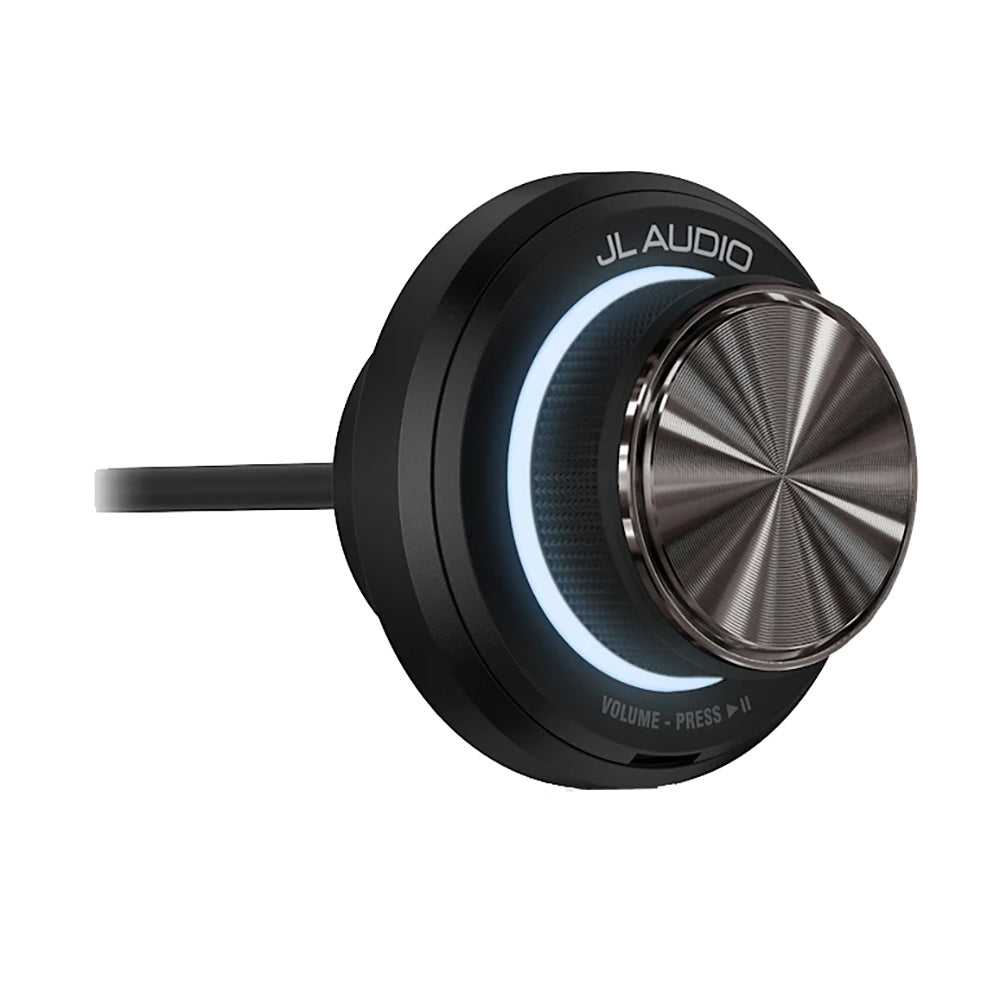

R5 Single Stereo Volume Controller
This easy-to-use volume controller can be front-mounted on your boat’s dash, and it controls all audio zones of a single head unit via a large single knob.
Features:
- LARGE SINGLE-KNOB CONTROL
- CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
- ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT
- PLAY OR PAUSE WITH THE PUSH OF A BUTTON
- REQUIRES A SINGLE 1.5-INCH HOLE FOR INSTALLATION
- IPX7-RATED FOR MARINE ENVIRONMENTS
General:
Networking & Connections:
Specifications
Specifications
Identification
| MPN | 010-04790-00 |
|---|
Certifications & Protection
| Warranty | 1 year |
|---|
Physical
| Physical dimensions (Height) | 2.35" (60 mm) |
|---|---|
| Physical dimensions (Width) | 2.35" (60 mm) |
| Physical dimensions (Depth) | 2.04" (52 mm) |
| Control surface dust/water rating (when properly installed) | IPX7 |
Performance
| Operating temperature range | 32° F to 122° F (0° C to 50° C) |
|---|
Electrical
| Current draw (max) | 110 mA |
|---|---|
| Power Input | 10.8-16 VDC |
General
| Compass-safe distance | 3.94" (100 mm) |
|---|
Control & Connectivity
| NMEA 2000® ports | 1 (Micro-C connector) |
|---|---|
| NMEA 2000® LEN | 2 (100 mA) |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
Garmin
Garmin NMEA 2000 Backbone Cable (10M)
010-11076-02
Garmin
Garmin NMEA 2000 Backbone Cable (2M)
010-11076-00
Garmin
Garmin NMEA 2000 Backbone Cable (6M)
010-11076-01
Garmin
Garmin NMEA 2000 Backbone/Drop Cable (1 Ft.)
010-11076-03
Garmin
010-11442-00
Garmin
010-11078-00
Garmin
Garmin NMEA 2000® 4-Port Backbone Kit
010-11442-10
Garmin
Garmin NMEA 2000® Backbone/Drop Cable (4M)
010-11076-04
Garmin
Garmin NMEA 2000® Backbone/Drop Cables (Right Angle) - 1'
010-11089-01
Garmin
Garmin NMEA 2000® Multi-Port T-Connector
010-11078-01
JL Audio
010-02983-00
JL Audio

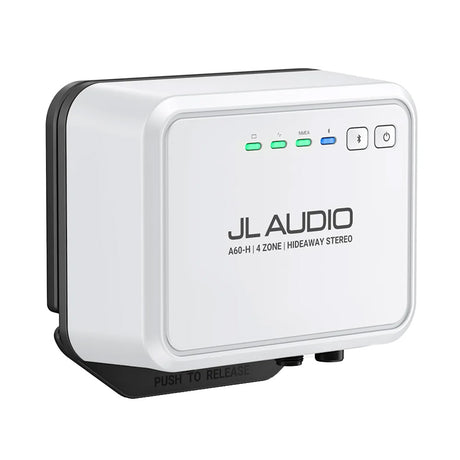

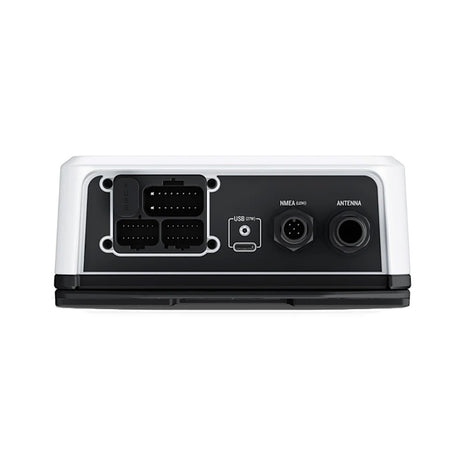

JL Audio A60-H Hideaway Marine Head Unit
