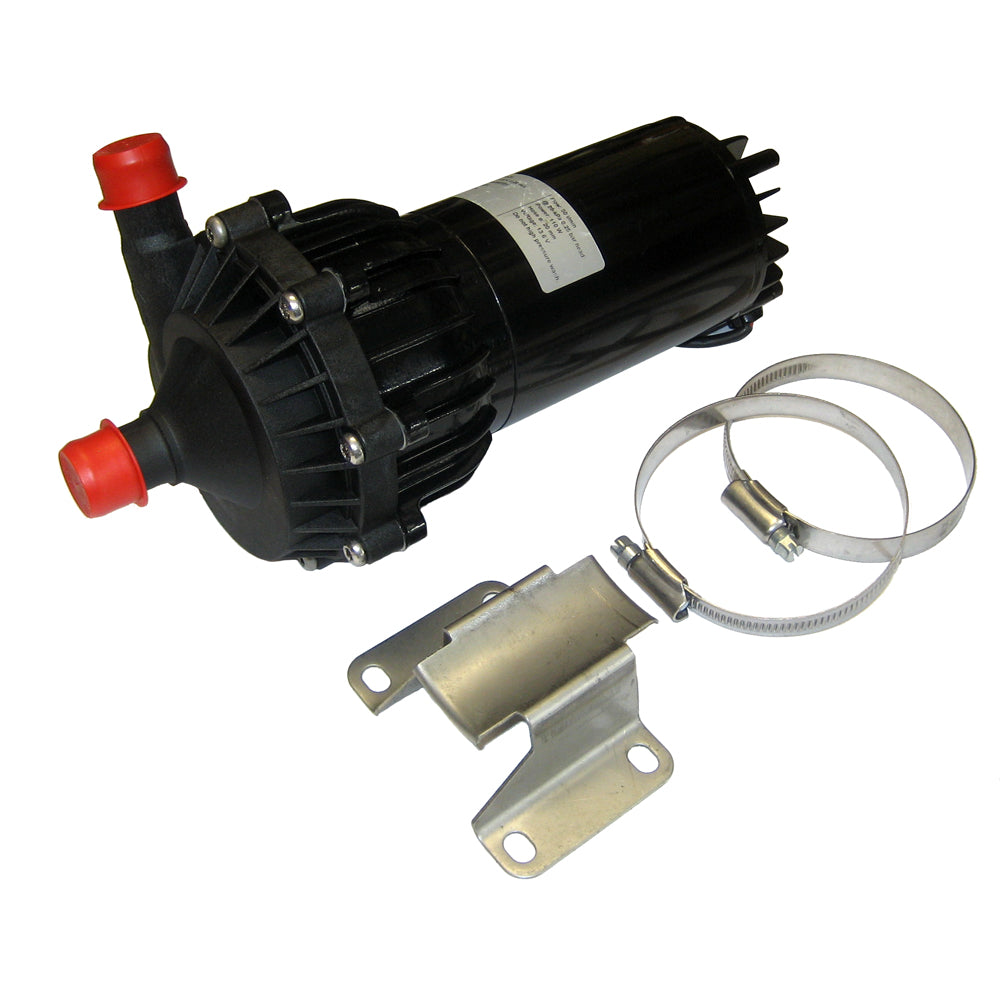

CM90P7-1 13.6V CIRCULATION PUMP D20
CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.
Specifications
Specifications
Identification
| MPN | 10-24750-09 |
|---|---|
| Barcode | 7330717013172 |
General
| System Pressure | -0.3 to 3.0 bar; stationary max. 4.0 bar |
|---|---|
| Liquid | Water/glycol mixture; max. 60% glycol, fresh and salt water |
| Dry running | 30 minutes |
| Capacity | 17.2 GPM |
| Ports | 3/4" |
Certifications & Protection
| Motor service life | More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor |
|---|
Physical
| Dimensions | 244mm L x 120mm W x 150mm H |
|---|---|
| Weight | 6.6lbs |
