KICKER 4 x 100W Full-Range Amplifier
Sale price
$49999
Regular price
$54999
Total:
Unit price
SKU:
KIC/48PXA4004
Sale price
$49999
Regular price
$54999
Total:
Unit price
Description
Description

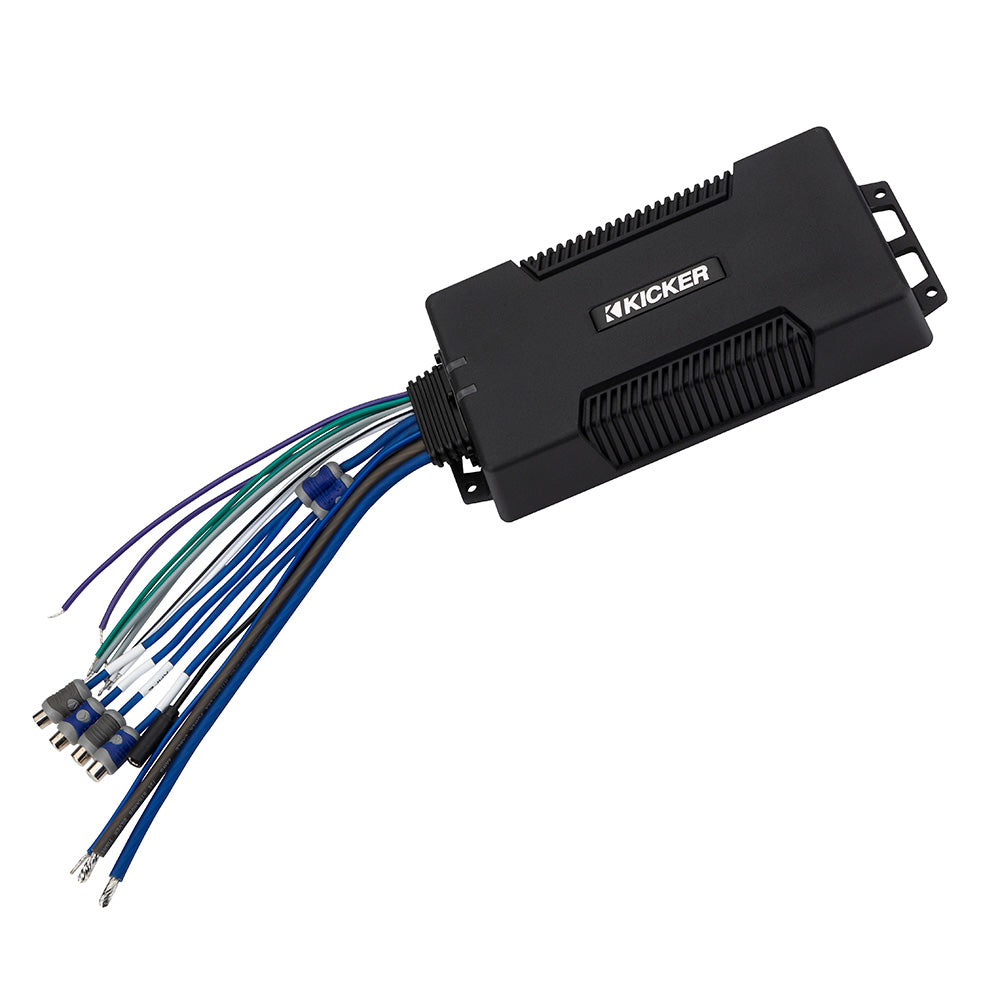

4 x 100W Full-Range Amplifier
Completely re-engineered, the PXA400.4 supplies big power to your speakers, in a compact, waterproof design for the trickiest installs.
Features:
- Waterproof amplifier design with IP66 and IP67 certifications
- Ideal for UTVs, off-road vehicles, hot rods, or space-challenged vehicles
- High-efficiency Class-D technology
- Huge power from a small footprint – rated at 800 watts Dynamic Power!
- Dual turn-on modes (choice of DC offset or 12v trigger)
- Includes inline power and ground couplers that need no soldering or crimping
- Stainless-steel mounting hardware included
Specifications
Specifications
Identification
| MPN | 48PXA4004 |
|---|---|
| Barcode | 713034088479 |
Dimensions
| Dimensions (H x W x D) | 1.77" x 9.76" x 4.53" (45 x 248 x 115 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 4 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 100 W x 4/200 W x 2 (Bridged) |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 100 W x 4 |
| Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD) | - |
| Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD) | - |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 10 Hz-20 kHz |
| Input Voltage Range @ RCA Inputs | 125 mV-5 V (low level); 1 V-40 V (high level) |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Channels 1 & 2 | High-Pass |
| Filter Slope(s): Channels 1 & 2 | 24 dB/octave |
| Filter Frequency Range: Channels 1 & 2 | 80 Hz or 120 Hz |
| Filter Mode(s): Channels 3 & 4 | High-Pass |
| Filter Slope(s): Channels 3 & 4 | 24 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 80 Hz or 120 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 10-16 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 60 A (external) |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 8 AWG |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
