KICKER 600W Mono Subwoofer Amplifier
Sale price
$39999
Regular price
$42999
Total:
Unit price
SKU:
KIC/48PXA6001
Sale price
$39999
Regular price
$42999
Total:
Unit price
Description
Description

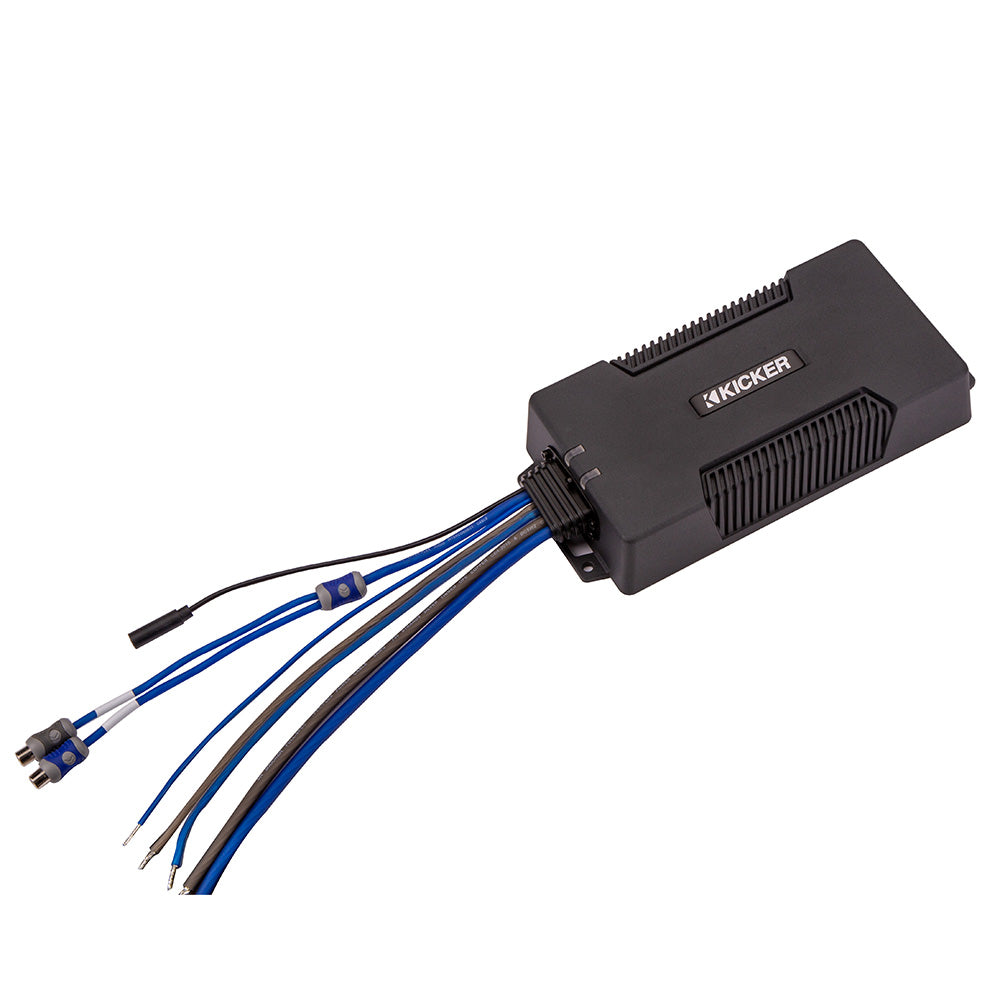

600W Mono Subwoofer Amplifier
Completely re-engineered, the PXA600.1 mono amp supplies big power to your subwoofer, in a compact, waterproof design for the trickiest installs.
Features:
- Waterproof amplifier design with IP66 and IP67 certifications
- Ideal for UTVs, off-road vehicles, hot rods, or space-challenged vehicles
- High-efficiency Class-D technology
- Huge power from a small footprint – rated at 850 watts Dynamic Power!
- One-Ohm stable
- Dual turn-on modes (choice of DC offset or 12v trigger)
- Includes inline power and ground couplers that need no soldering or crimping
- Stainless-steel mounting hardware included
Specifications
Specifications
Identification
| MPN | 48PXA6001 |
|---|---|
| Barcode | 713034088486 |
Dimensions
| Dimensions (H x W x D) | 1.85" x 9.76" x 4.53" (47 x 248 x 115 mm) |
|---|---|
| Weight | - |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 1 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 300 W x 1 |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 500 W x 1 |
| Rated Continuous (RMS) Power (14.4 V input @ 1 Ohm < 1% THD) | 600 W x 1 |
| Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD) | - |
| Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD) | - |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | - |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | - |
| Frequency Response (+0, -1dB) | 25 Hz-200 Hz |
| Input Voltage Range @ RCA Inputs | 125 mV-5 V (low level); 1 V-40 V (high level) |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | 0 to +6 dB @ 40 Hz |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Subwoofer Channel | Low-Pass |
| Filter Slope(s): Subwoofer Channel | 12 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 60 Hz, 80 Hz, 100 Hz or 120 Hz |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 10-16 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 80 A (external) |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | 4 AWG |
General
| Water/Dust Protection Rating | - |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | - |
|---|---|
| Warranty | - |
