Lenco 12" x 12" Standard Performance Trim Tab Kit w/o ...
Description
Description

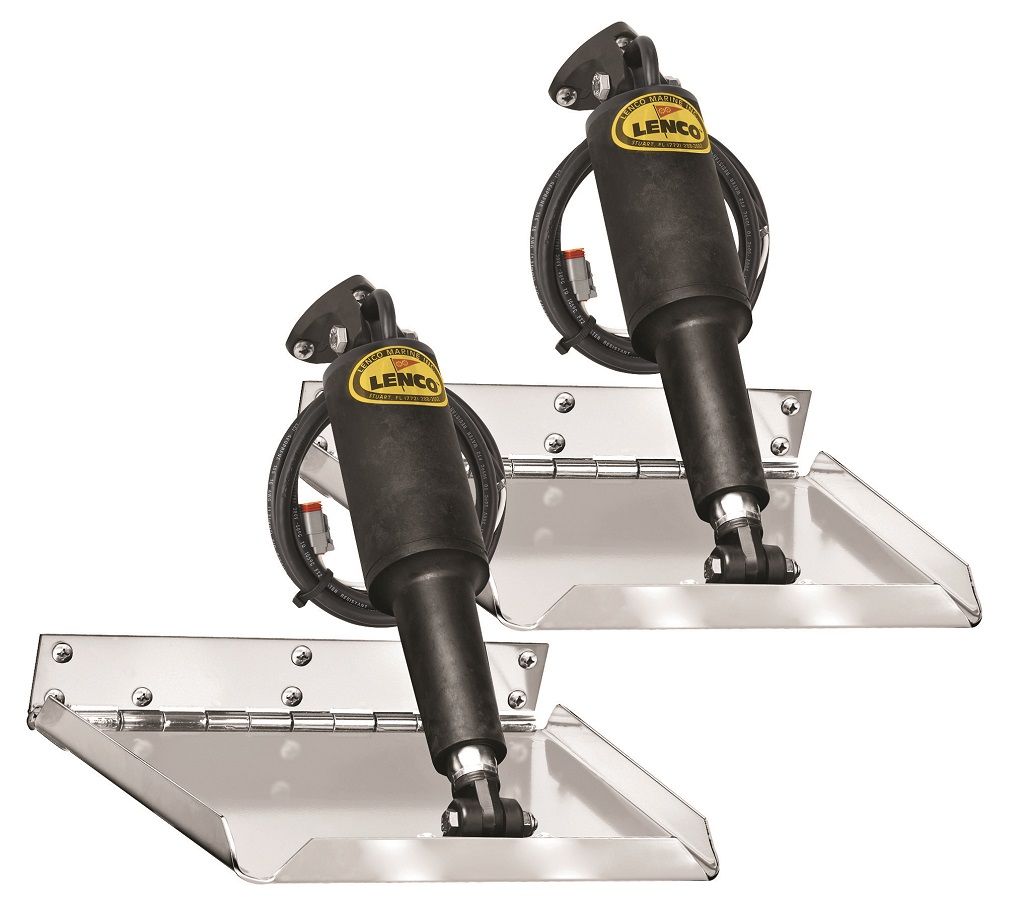

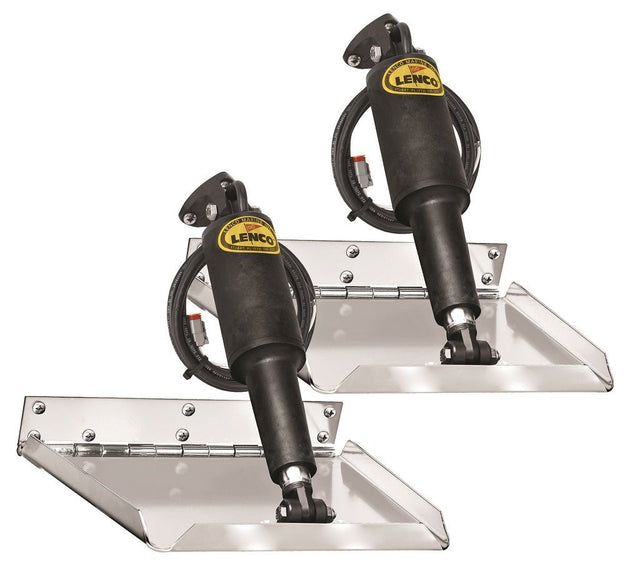

12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit- 12V
Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades
Kit Contents:
- 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
- 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 2 each of #15085-001 (#116) upper mounting bracket with gland seal
- 2 each of #50014-001 (#119) lower mounting bracket
- 1 each of the Lenco owner’s / installation manual
- All necessary stainless steel mounting hardware
Specifications
Specifications
Identification
| MPN | 15037-101 |
|---|---|
| Barcode | 874847004596 |
Physical
| Suggested Boat Length | 18' to 32' |
|---|---|
| Length of Tab | 12" |
| Width of Tab | 12" |
| Minimum Transom Height | 11" |
| Finish | Electro-Polished |
General
| Blades | 12 Gauge Stainless Steel |
|---|---|
| Class | Fuel Efficient |
| Compatibility | Any Boat |
| Actuators | 12-volt |
Control & Connectivity
| Switch Kit | Sold Separately |
|---|
Certifications & Protection
| Compliance | CE Certified |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
