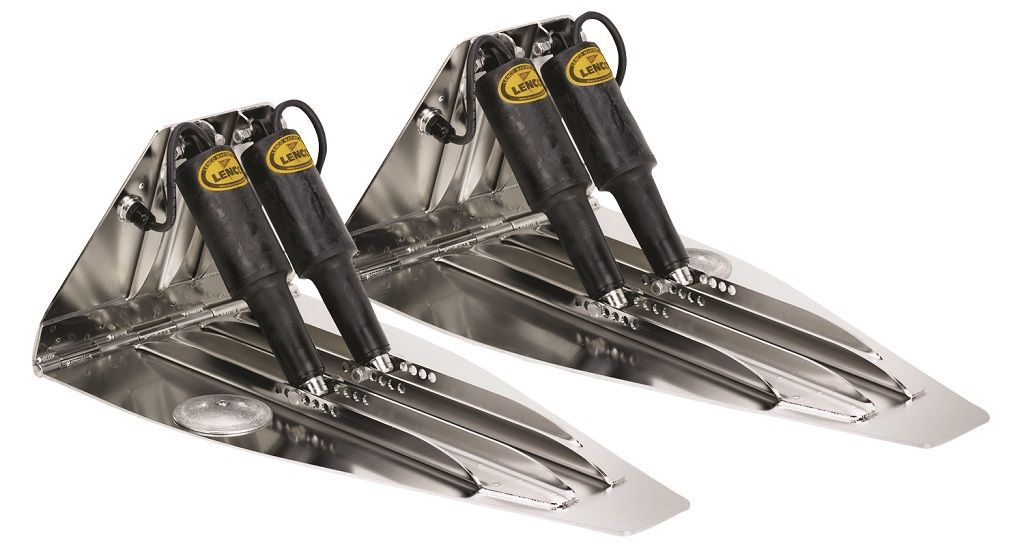

21" x 14" High Performance Trim Tab Kit w/o Switch Kit-12V - Dual Actuator
Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.
Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.
Kit Contents:
- 2 each of stainless steel trim tab planes
- 4 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs
- Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.
The following to be supplied by customer:
- Boat mounting hardware supplied by customer
- Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
required. To order the lengths of your choice see the Lenco Accessories Section.
Specifications
Specifications
Identification
| MPN | 15050-101 |
|---|---|
| Barcode | 874847004725 |
Physical
| Suggested Boat Length | 24' to 42' |
|---|---|
| Length of Tab | 21" |
| Width of Tab | 14" |
| Minimum Transom Height | 10.5" |
| Finish | Electro-Polished |
General
| Blades | 7 Gauge Stainless Steel |
|---|---|
| Class | Fuel Efficient |
| Compatibility | Any Boat |
| Actuators | 12-volt |
Control & Connectivity
| Switch Kit | Sold Separately |
|---|---|
| Switch Required | 15071-001 |
Certifications & Protection
| Compliance | CE Certified |
|---|
