Lewmar  |  SKU: LEW/49046056  |  Barcode: 743683002908

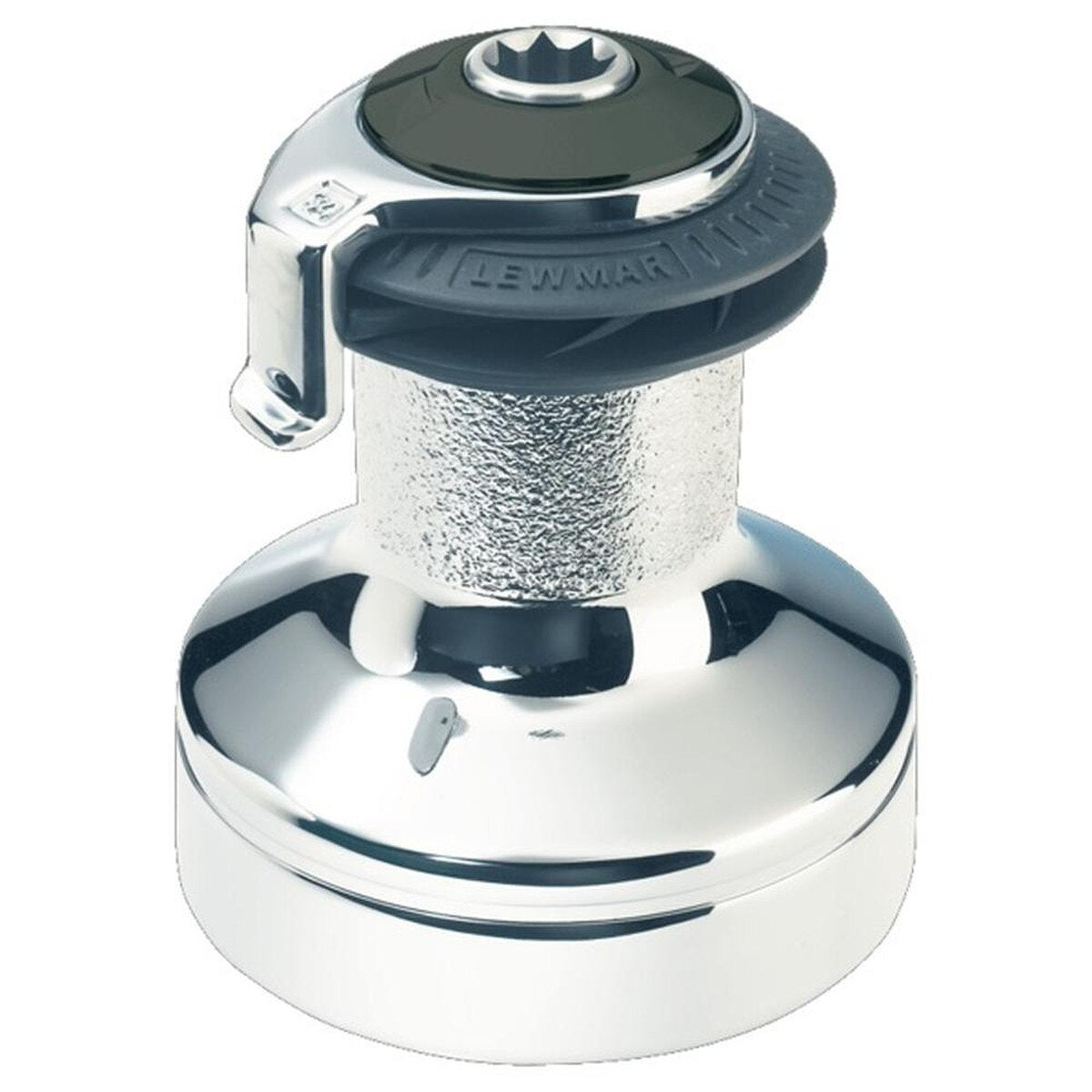

46CST Two Speed Self Tailing Winch - Chrome

Regular price $3,61995

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Lewmar Ocean 46CST Two-Speed Self-Tailing Winch — Chrome Bronze (49046056)

A polished, two-speed self-tailing sailboat winch built for serious sail loads — a meaningful step up in working load and line capacity from the 40ST.

Why It's Worth It
The two-speed gearbox gives you a high gear for quick trimming and a low gear (44.8:1 power ratio) for grinding in heavy loads, with a working load limit nearly 900 lbs higher than the 40ST. The Wavespring self-tailing jaws accept up to 9/16" line at this size, wider than the smaller models — relevant if you're running larger-diameter sheets or halyards. Lewmar's design lets you service the winch with no tools: unscrew the top cap by hand to access the drum and center stem. The chrome bronze finish gives this version a classic, polished look at the cost of roughly 5.5 lbs more than the aluminum equivalent.

Use
A manual, two-speed self-tailing winch sized for larger sailboats or primary winch positions carrying heavier sail loads. The minimum-friction feeder arm keeps line handling snag-free.

Specifications

  • MPN
    49046056
  • Physical
    Model: 46ST
    Drum Diameter: 3-7/16" (87mm)
    Base Diameter: 6-5/8" (168mm)
    Height: 7-9/16" (192mm)
    Entry Line Height: 3-5/16" (84mm)
    Line Size: 5/16"-9/16" (8-14mm)
    Weight: 21.3 lb (9.7 kg)
  • Other
    Gear Ratio: 2.4:1 (1st), 7.6:1 (2nd)
    Power Ratio: 13.9:1 (1st), 44.8:1 (2nd)
    Working Load Limit: 2,646 lb (1,200 kg)

Reviews (0)

In The Box

In The Box:

Winch with Drum

Package Dimensions/Shipping:

Qualifies for Ground Program

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 3yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
