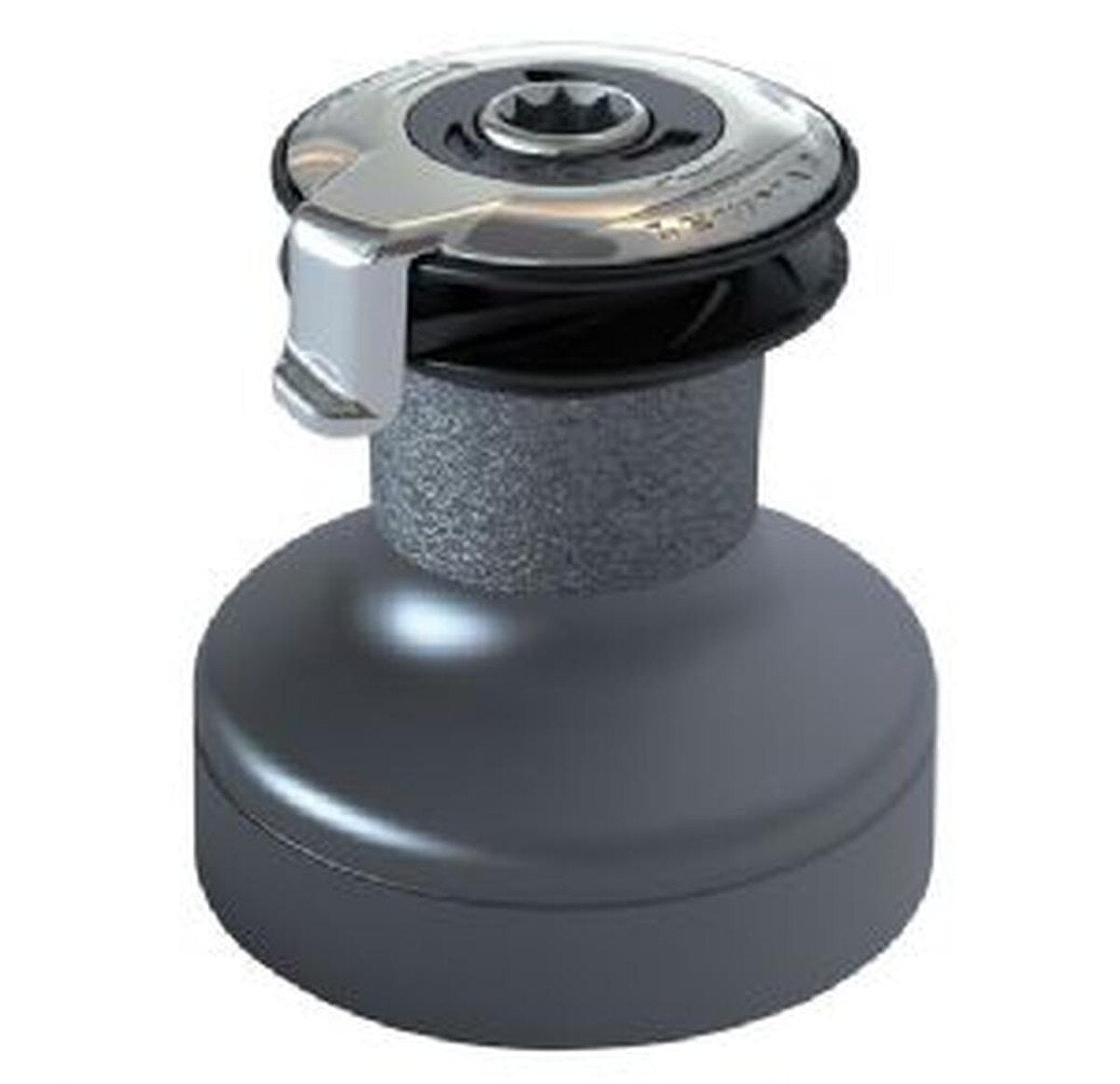

45ST Evo Two Speed Self Tailing Grey Winch

A newer winch line entirely — this is Lewmar's EVO series (Hodges/BOATiD), distinct from the Ocean Series winches we've covered. Confirmed directly from the official Lewmar EVO catalogue table: Model 45ST, Finish Alloy Grey, Gear Ratio 2.4:1 (1st), 7.6:1 (2nd), Power Ratio 13.9:1 (1st), 44.8:1 (2nd), Working Load Limit 2646 lb (1200 kg), Weight 15.6 lb (7.1 kg), Drum Diameter 3-7/16" (87mm), Base Diameter 6-5/8" (168mm), Height 7" (177.7mm), Entry Line height 3-5/16" (84mm), Line Size 5/16"-9/16" (8-14mm).

Note: Lippert's listing for this exact part number describes different specs (8-1/16" base, 9-11/32" tall, 2.8:1/11.2:1 gear ratio) — those figures don't match the official Lewmar catalogue table or match a larger EVO size, so that page appears to be a data error. I'm going with the manufacturer's own spec table.

Lewmar EVO 45ST Two-Speed Self-Tailing Winch — Aluminum Alloy, Grey (49545057)

An evolution of the classic Lewmar Ocean winch — a state-of-the-art self-tailing winch with user-friendly direction arrows and no-tools servicing.

Why It's Worth It
The EVO series builds on decades of Ocean winch design with refinements aimed at everyday usability: direction arrows molded into the winch make it obvious which way to turn, even for less experienced crew, and a cast stainless steel top-mounted feeder arm prevents rope traps above the Wavespring jaws while letting you adjust feed position for a smooth line path into the cockpit. No tools are needed to service it — just unscrew the top cap by hand to access the drum and gear train. Like the Ocean Series at this size, it's convertible to electric operation if you want to upgrade later.

Use
A manual, two-speed self-tailing winch sized for larger sailboats. Gear one handles major trim adjustments; gear two multiplies power for handling heavier loads with less effort on the handle.

In The Box:

Winch with Drum

Package Dimensions/Shipping:

Qualifies for Ground Program

Product Support:

Subscription Information:

Release Date:

Warranty: 3yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
