SKU:
LOP/101-009-FB-B
Regular price
$77754
Unit price
Description
Description

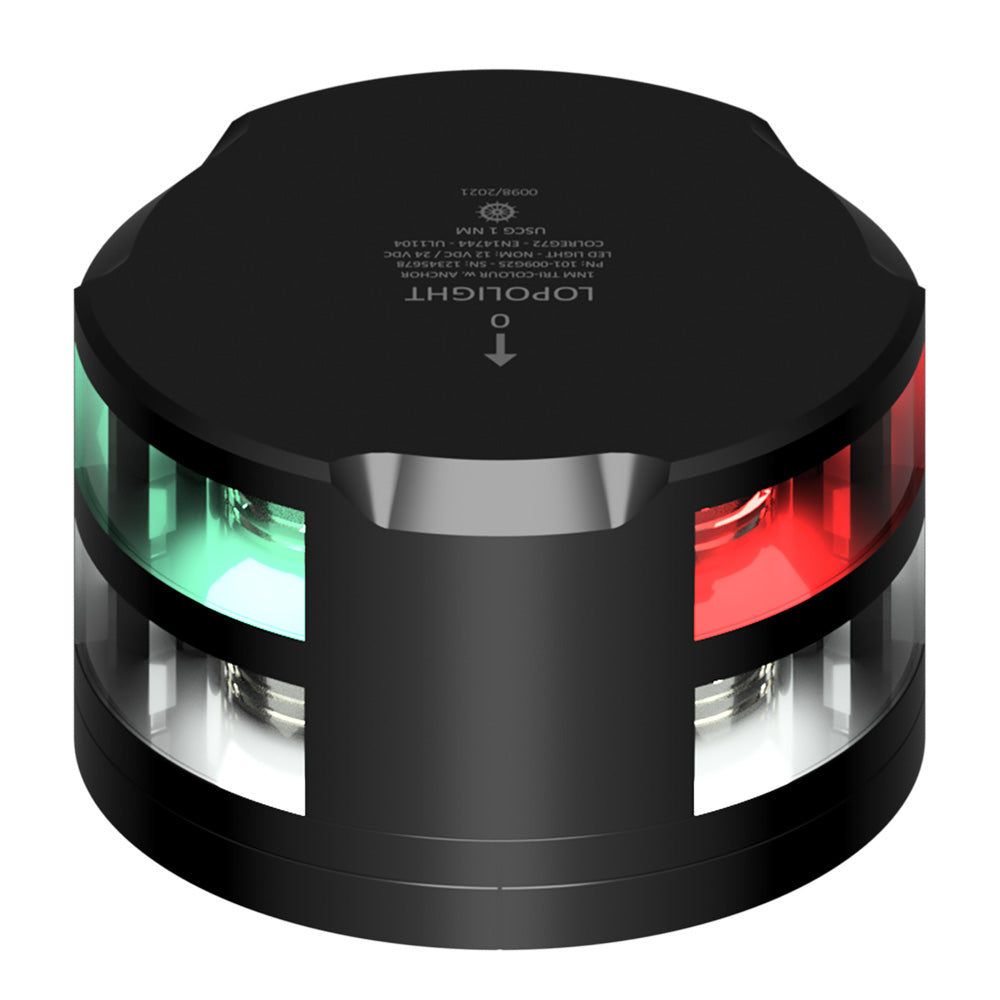

Tri-Color Anchor Light - 1NM - Black Housing with FB Base
This black tri-color anchor light is horizontally mounted and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Black anodized aluminum housing
- 0.75m cable is included
Specifications
Specifications
Identification
| MPN | 101-009-FB-B |
|---|
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | Red, green, and white |
| Dimensions Metric | Ø92,5mm x 68mm |
| Dimensions Imperial | Ø3.6" x 2.6" |
| Vessel Size | Under 12 meters |
General
| EAN | 5704438042698 |
|---|---|
| Min. Feed Wire Gauge | 0.5mm2 AWG22 |
| Visibility | 1NM |
| Included In the Package | 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide |
| IP rating | IP68 |
| Connection | 0.75m cable |
| Operating Temperature | -25 degrees C to 55 degrees C |
Electrical
| Current Consumption (mA @ 24VDC) | 81 |
|---|---|
| Current Consumption (mA @ 12VDC) | 150 |
| Operating Voltage | 10-32VDC |
| Power Draw (W) | 2.6 |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
