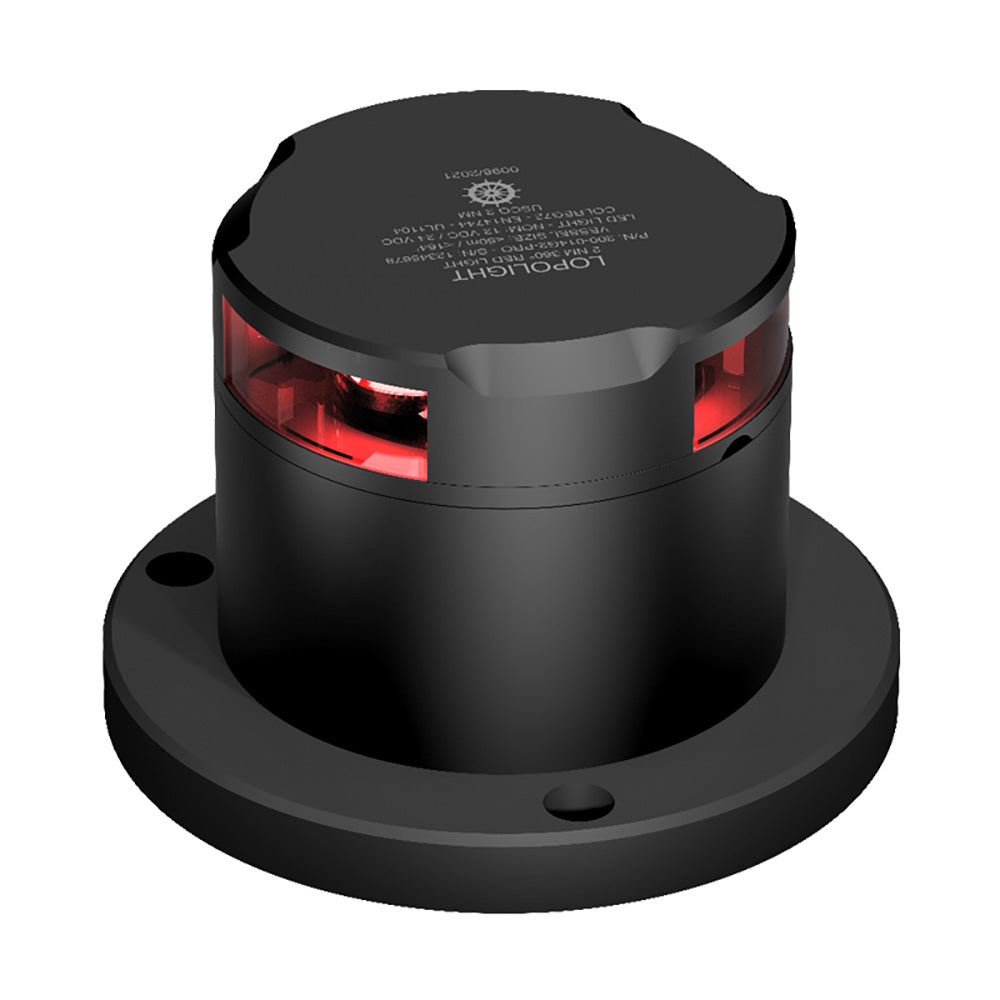

Lopolight 360-Degree Red Nav Light w/De-Icing Function - Black Housing
Regular price
$1,35851
Unit price
SKU:
LOP/200-014G2-PRO-I
Regular price
$1,35851
Unit price
Description
Description
360-Degree Red Nav Light with De-Icing Function - Black Housing
This 360-degree navigation light has a red-light color and black housing while having up to 2 nautical miles of visibility.
Features:
- Built-in de-icing function
- Horizontally mounted on a POM base (IP68)
- Side cable direction
- Included HDPE base plate
Specifications
Specifications
Identification
| MPN | 200-014G2-PRO-I |
|---|---|
| Barcode | 879343012137 |
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | Red |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Weight | 0.81 kg (35.27 oz) |
| Dimensions Metric | Ø92,5mm x 75mm |
| Dimensions Imperial | Ø3.6 x 2.9 |
| Vessel Size | Under 12M,12-20M,20-50M |
| Quality Cable Glands 2 Sizes Are Included | 7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter |
General
| EAN | 5704438019331 |
|---|---|
| Min. Feed Wire Gauge | 1.5mm2 AWG18 |
| Intensity | >5.4cd |
| Visibility | 2NM |
| Connection | Plug connector |
Certifications & Protection
| IP rating | IP68 |
|---|
Electrical
| Current Consumption (mA @ 24VDC) | 85 |
|---|---|
| Current Consumption (mA @ 12VDC) | 150 |
| Operating Voltage | 10-32VDC |
| Power Draw (W) | 2,1W (When de-icing 15W @24VDC) |
Performance
| Operating Temperature | -60 degrees C to 55 degrees C |
|---|
