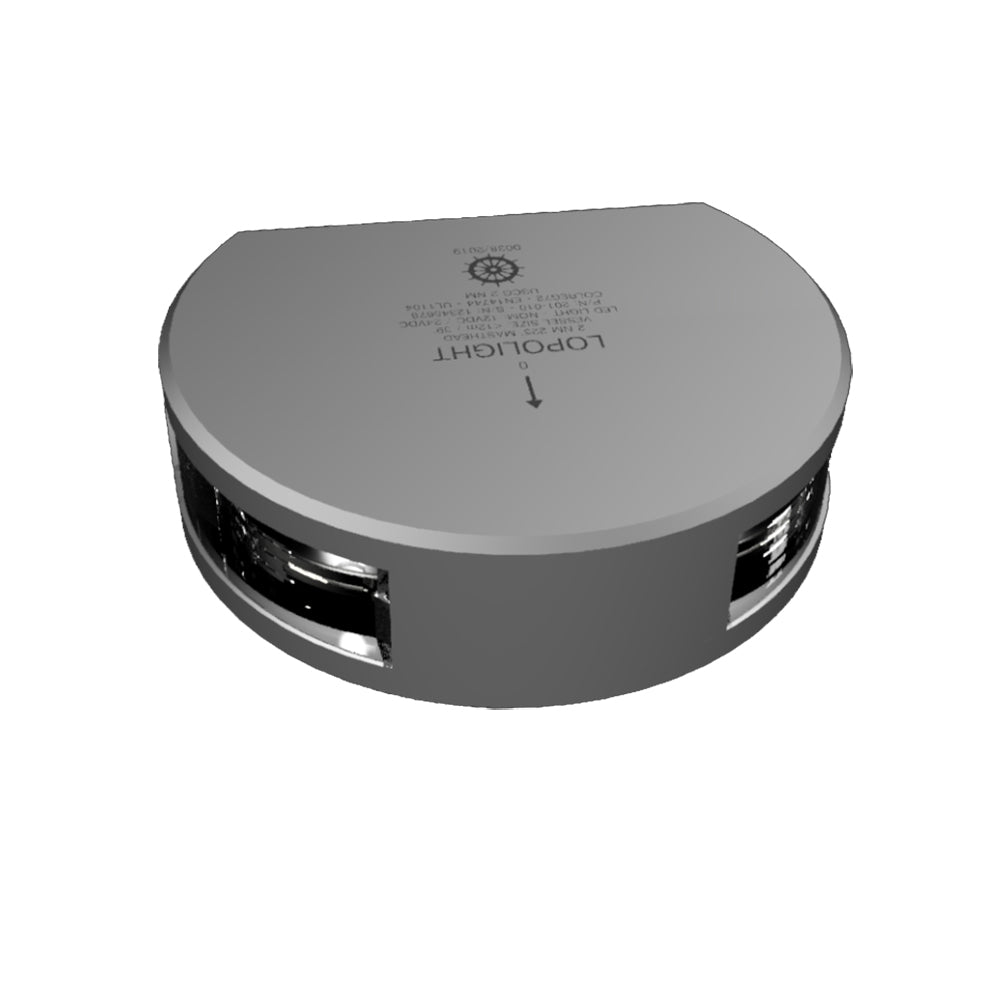

225° Masthead Light - Single - Silver Housing - Vertical Mount
This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.
The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.
The interior is completely filled with a special potting resin making it water- and vibration proof.
Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.
Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:
- COLREG72
- EN14744
- IEC 60945
- USCG (UL1104)
Specifications
Specifications
Identification
| MPN | 201-010 |
|---|---|
| Barcode | 879343010201 |
Physical
| Vessel size | <12m (<39.4’) |
|---|---|
| Mounting | Vertical |
General
| Visibility | >2 nautical miles |
|---|---|
| Intensity | >5,4cd |
| Number of LEDs | 2 |
| Light colour | White |
| Operating temperature | -25°C to +55°C |
| IP rating | IP68 |
Electrical
| Power consumption | 2,5 Watt; Current: 0,21A @12 VDC - 0,10A @24 VDC |
|---|---|
| Operating voltage | 10 - 32 VDC |
