SKU:
LOP/201-012-FB-B
Regular price
$71330
Unit price
Description
Description

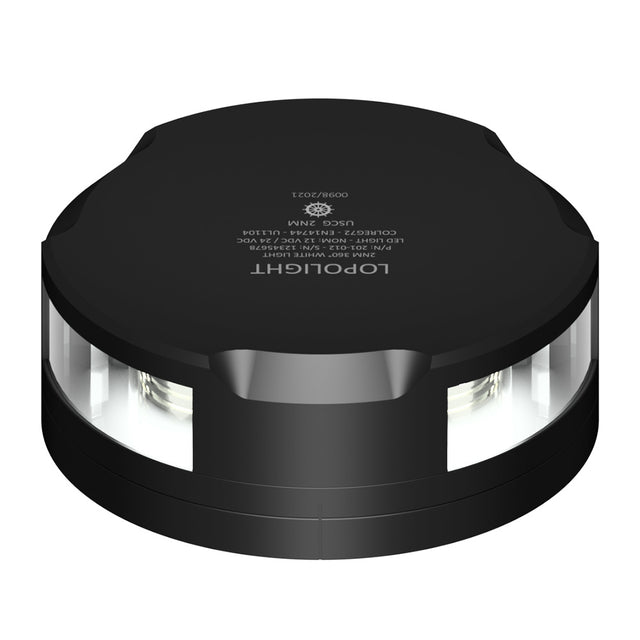

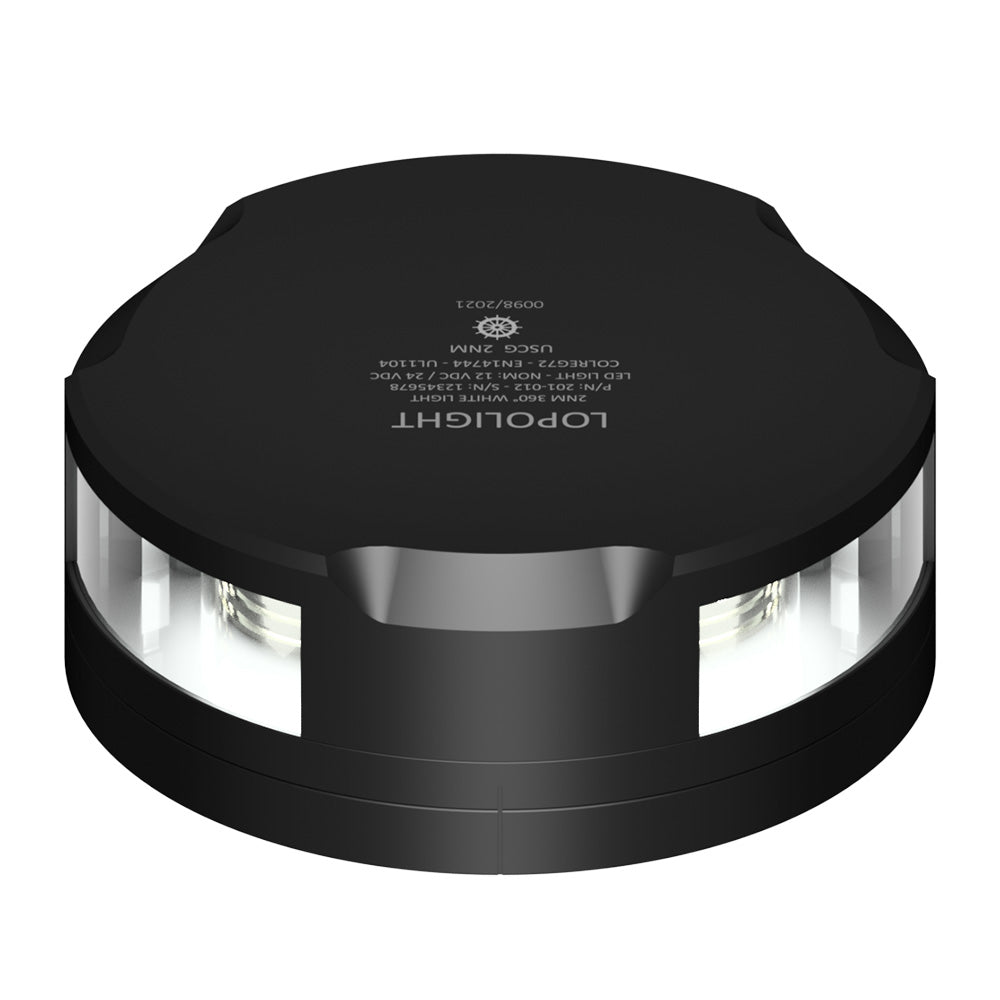

360-Degree Anchor Light - 2NM - Black Housing with FB Base
This black 360-degree anchor light is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Black anodized aluminum housing
- 0.75m cable is included
Specifications
Specifications
Identification
| MPN | 201-012-FB-B |
|---|---|
| Barcode | 879343042929 |
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | White |
| Dimensions Metric | Ø92.5mm x 36mm |
| Dimensions Imperial | Ø3.6" x 1.4" |
| Vessel Size | Under 12 meters, 12-20 meters, and 20-50 meters |
General
| EAN | 5704438042797 |
|---|---|
| Min. Feed Wire Gauge | 0.5mm2 AWG22 |
| Visibility | 2NM |
| Included In the Package | 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | 0.75m cable |
| Operating Temperature | -25 degrees C to 55 degrees C |
Electrical
| Current Consumption (mA @ 24VDC) | 110 |
|---|---|
| Current Consumption (mA @ 12VDC) | 167 |
| Operating Voltage | 10-32VDC |
| Power Draw (W) | 2 |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
