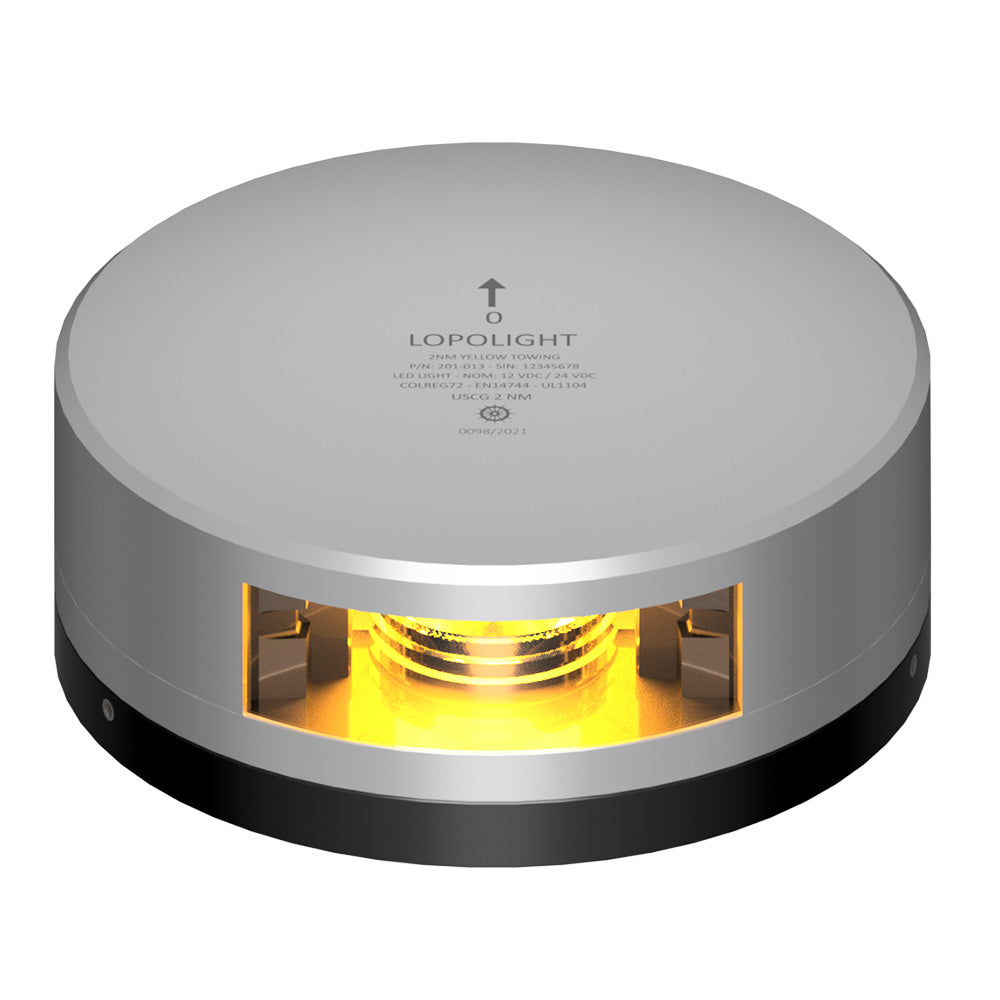

Yellow Towing Light - 2NM - Silver Housing with FB Base
This yellow towing light has a silver housing, is designed to be horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized aluminum housing
- 2.5m cable is included
Specifications
Specifications
Identification
| MPN | 201-013-FB |
|---|---|
| Barcode | 879343043582 |
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | Yellow |
| Dimensions Metric | Ø92.5mm x 36mm |
| Dimensions Imperial | Ø3.6" x 1.4" |
| Vessel Size | 20-50 meters |
General
| EAN | 5704438043459 |
|---|---|
| Min. Feed Wire Gauge | 0.5mm2 AWG22 |
| Visibility | 2NM |
| Included In the Package | 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | 2.5m cable |
| Operating Temperature | -25 degrees C to 55 degrees C |
Electrical
| Current Consumption (mA @ 24VDC) | 71 |
|---|---|
| Current Consumption (mA @ 12VDC) | 124 |
| Operating Voltage | 10-32VDC |
| Power Draw (W) | 1.7 |
