SKU:
LOP/300-114G2-PRO-I
Regular price
$1,80093
Unit price
Description
Description

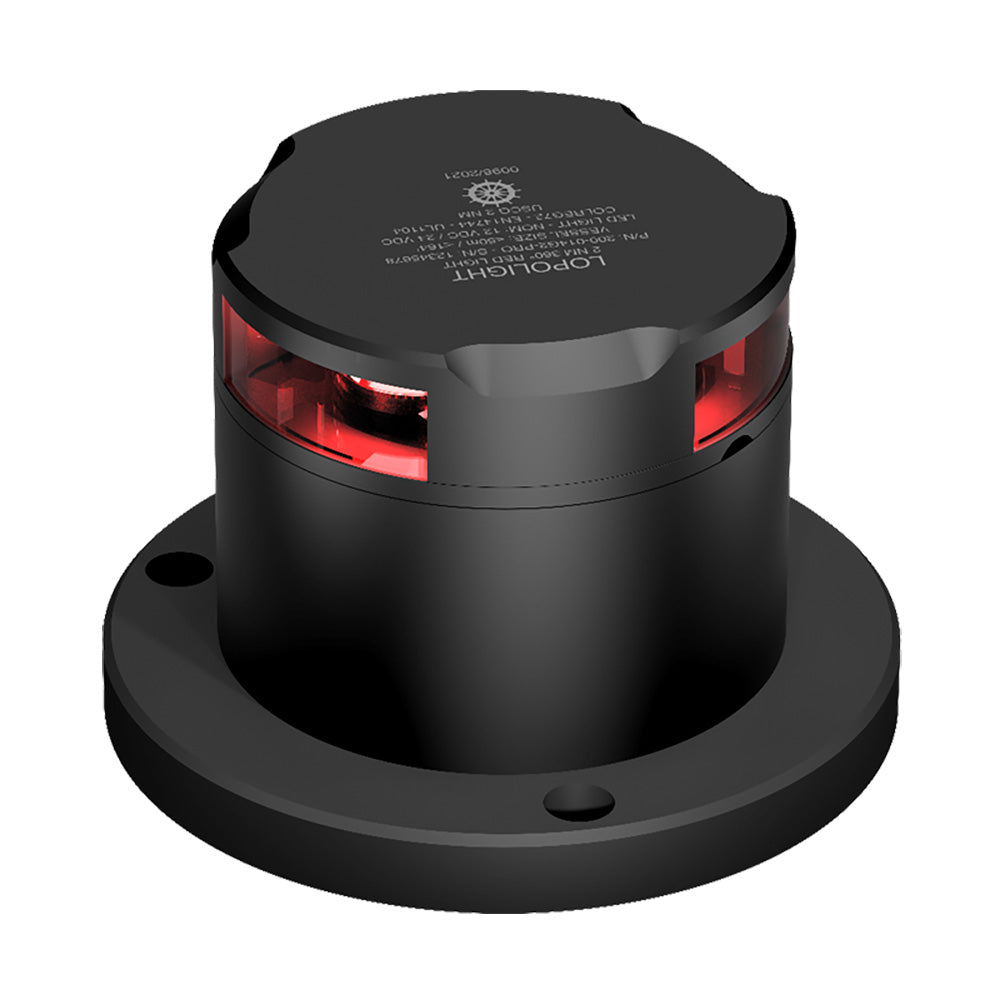

3nm 360° Red Ice-Class Black Anodized Light
Features:
- Built-in De-icing function
- Horizontally mounted on 400-037 alu base (IP68)
- Cable direction side
- Includes HDPE base plate
- Quality cable glands - 3 sizes included:
- 9-17mm (3/8"-11/16") cable diameter
- 7-13mm (1/4"-1/2") cable diameter
- 4.5-10mm (5/32"-3/8") cable diameter
Specifications
Specifications
Identification
| MPN | 300-114G2-PRO-I |
|---|---|
| Barcode | 879343012441 |
General
| Certification | This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support. This Navigation Light conforms to USCG Commandant instructions M16672.2. |
|---|---|
| Compliant with relevant sections of | MIL-STD-461G, - MIL-STD-901E, - MIL-STD-167-1A, - MIL-STD-1399/300-1 |
| Intensity | >15cd |
| Visibility | 3nm |
| Operating temperature | -60°C to 55°C |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| EAN | 5704438012448 |
| IP rating | IP68 |
| Connection | Plug connector |
| Min. feed wire gauge | 1.5mm2 AWG18 |
Physical
| Dimensions imperial | Ø3.6" x 3.5" |
|---|---|
| Mounting | Horizontal |
| Vessel size | Over 50M |
| Weight (Kg) | 1.14 Kg |
| Weight (Oz) | 40.21 Oz |
Control & Connectivity
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Electrical
| Operating Voltage | 20-32VDC |
|---|---|
| Power draw (W) | 2,9 |
| Current consumption (mA @ 12VDC) | 210 |
| Current consumption (mA @ 24VDC) | 120 |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
