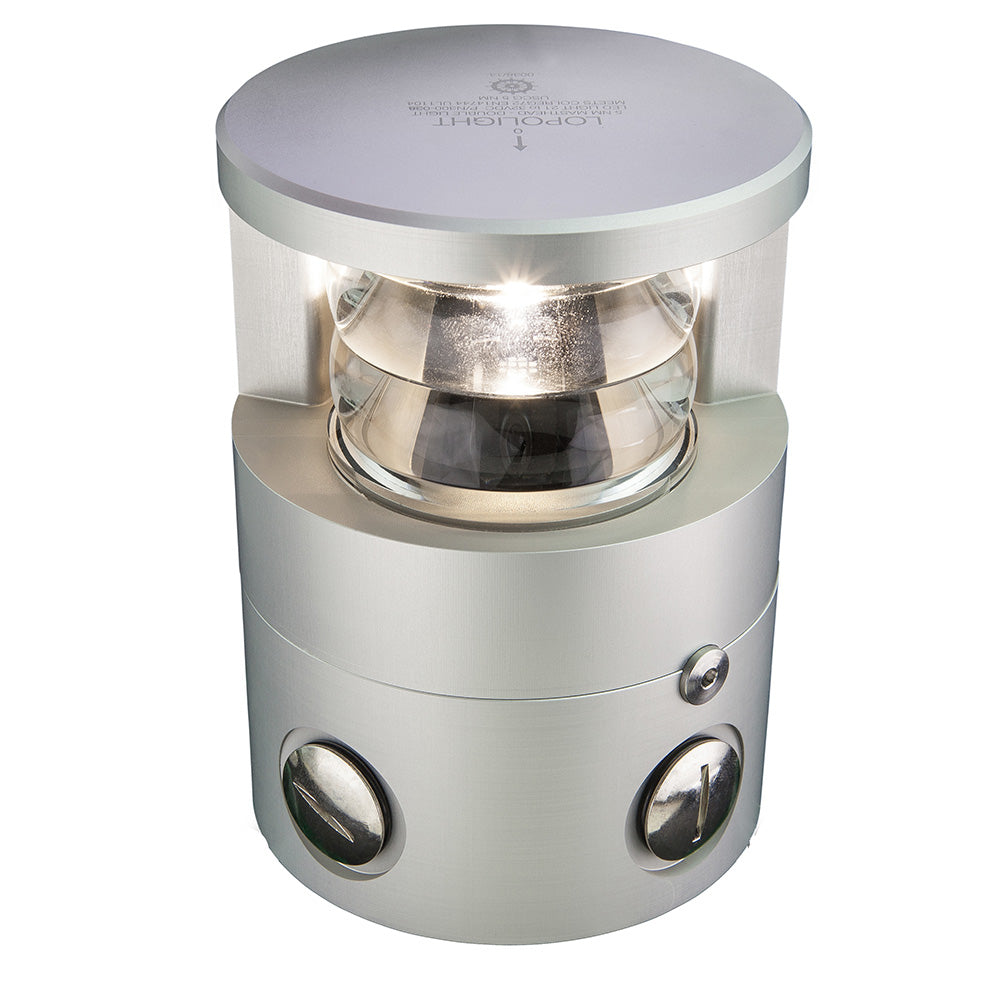

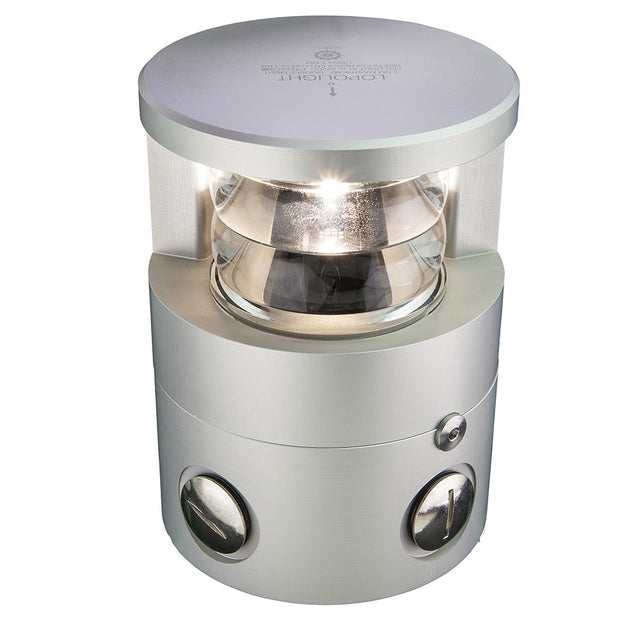

Lopolight 225° Double Masthead Light - 6NM - Silver Housing
Regular price
$4,13015
Unit price
SKU:
LOP/300-138
Regular price
$4,13015
Unit price
Description
Description
225° Double Masthead Light - 6NM - Silver Housing
The double LED light consists of two (2) individual lights which can be activated separately. One is dedicated as the primary, the other the secondary. The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within. The interior is completely filled with a special potting resin making it water and vibration-proof.
Specifications
Specifications
Identification
| MPN | 300-138 |
|---|
Physical
| Light Color | White |
|---|---|
| Dimensions Metric (mm) | 92 diameter, 5mm x 128mm |
| Dimensions Imperial (inch) | 3.6" diameter x 5" |
| Mounting | Horizontal |
| Materials | Silver anodized aluminum 25u PMMA lens, A4 stainless steel screws, epoxy, polyurethane |
Certifications & Protection
| Certification | This Navigation Light is certified by DNV |
|---|---|
| IP Rating | IP68 |
General
| Intensity | >94cd |
|---|---|
| Visibility | 6 Nautical miles |
| EAN | 5704438007086 |
| Connection | Plug connector |
Control & Connectivity
| Approved to | COLREG72, EN14744, IEC, 60945, IACS, E10, USCG, ABS, M.E.D., DNV, LR |
|---|
Performance
| Operating Temperature | -25°C to 55°C |
|---|
Electrical
| Operating Voltage | 20-32VDC |
|---|---|
| Power Draw (W) | 13 |
| Current Consumption (mA @ 12VDC) | 0 |
