Lowrance  |  SKU: LOW/000-16226-001  |  Barcode: 9420064132546

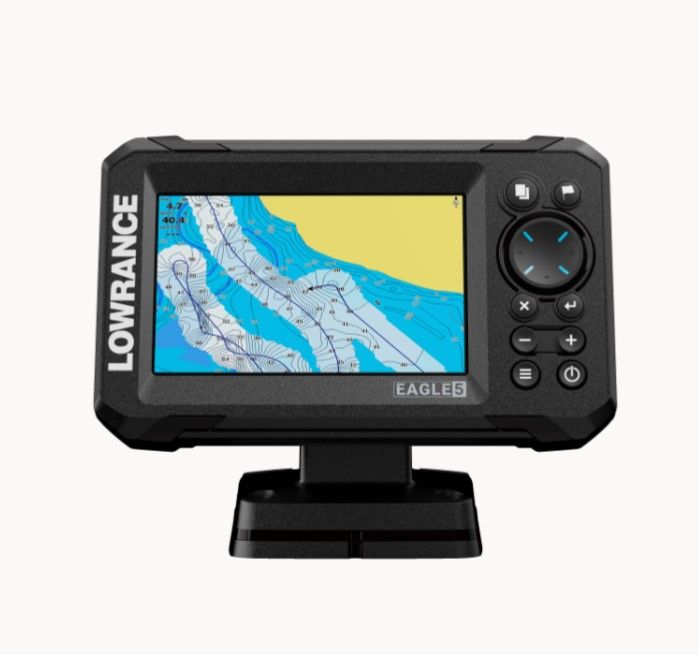

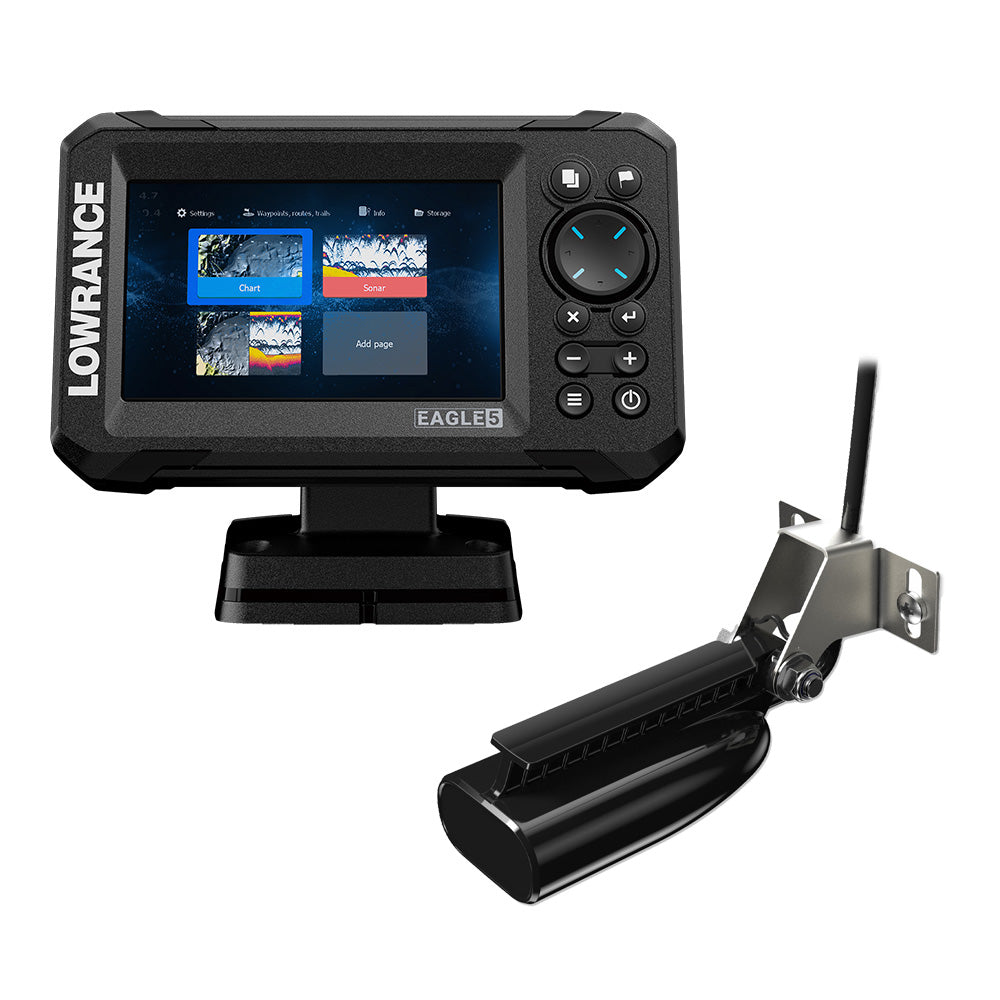

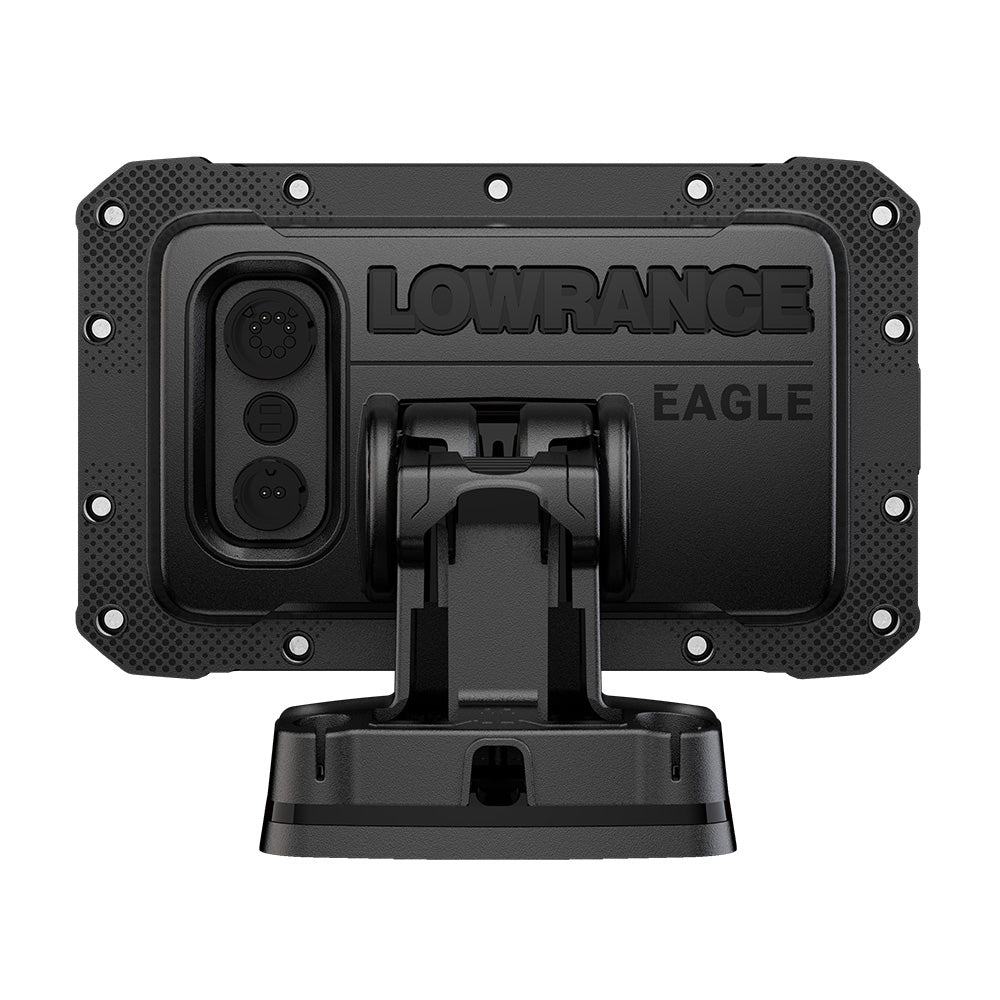

Eagle 5 + SplitShot Transducer

5" Chartplotter w/ Transducer & C-MAP Discover Charts

Regular price $39900

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model also comes bundled with high-resolution C-MAP® Discover OnBoard™ charts for the US and Canada.

SplitShot™ HD
Get the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

FishReveal™
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.

Autotuning Sonar
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.


C-MAP DISCOVER ONBOARD US/CANADA BUNDLE
Spend more time fishing and less time searching, with high-resolution C-MAP® Discover OnBoard charts included for the US and Canada. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.

GENESIS LIVE
Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.

Specifications

  • Product Series
    Eagle
  • MPN
    000-16226-001
  • Physical
    W: 7.16" (182.1 mm)
    H: 4.45" (113.2 mm)
    D:
    Weight: 0.99 lbs (0.45 kg)
  • Power
    Input: 12v DC
    Typical Draw:
    Max Draw: 280 mA
  • Screen
    Touchscreen: No
    Type: IPS
    Size: 5"
    Resolution: 800 x 480
  • Sonar
    Built-In Sonar: Yes

    Power Output:
    Traditional:

    Frequency:
    Traditional: 50,83,200 kHz
    DownScan: 455, 800 kHz
  • Connectivity
    Built-In GPS: Yes
    SD Cards: Yes - microSD (1)
    Wireless: No
    Network: No
    NMEA 0183: No
    NMEA 2000: No
    J1939: No
    Analog Video In: No
    HDMI In: No
    HDMI Out: No
    USB: No
    Sonar: Yes
  • Built-In Chart
    C-MAP Discover
  • IP Rating
    IPx7

Reviews (0)

In The Box

In The Box:

Eagle 5 Display
SplitShot HD Transducer
Bullet/SplitShot™ Transom Bracket
Power Cable, with fuse and connectors
Eagle 5 Bracket and mounting hardware
C-MAP Discover OnBoard™ charts for the US and Canada

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 1



* ALL WARRANTY IS THROUGH MANUFACTURE *
