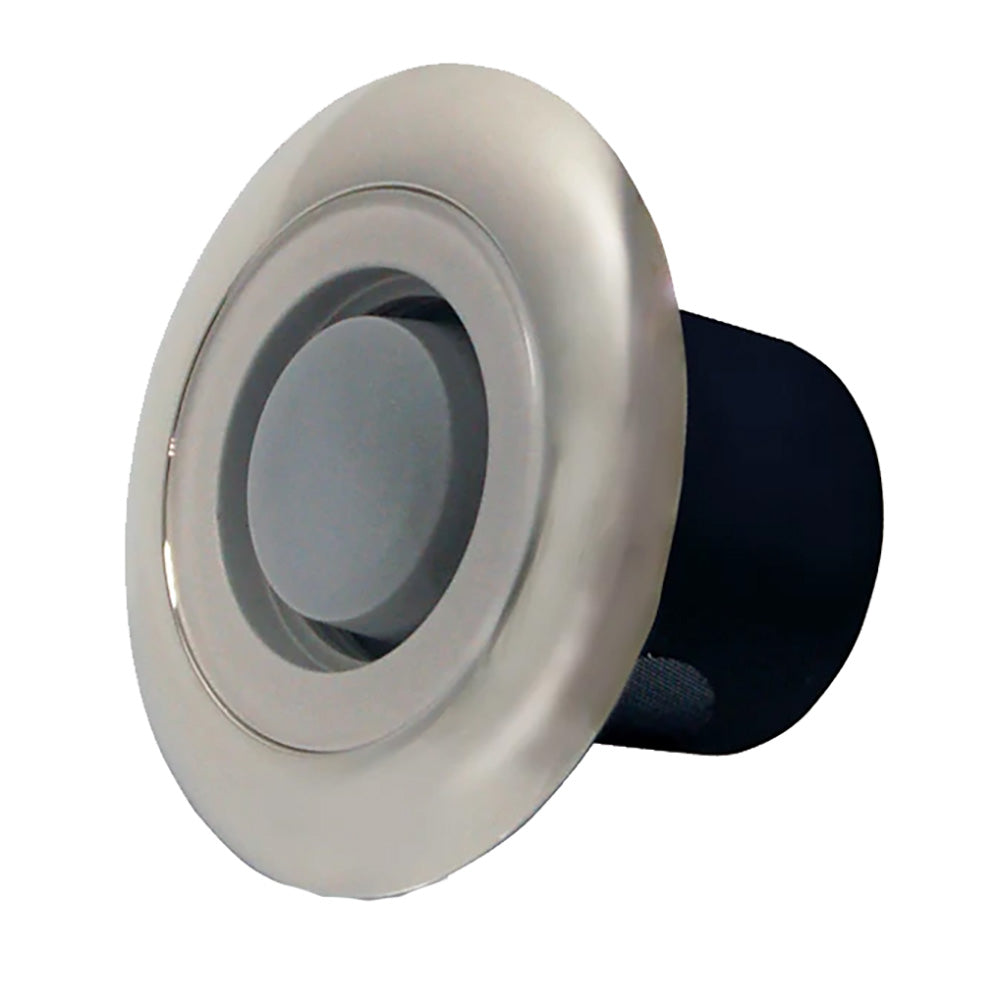

LUX CL25 Courtesy Light - CRGBW - Chrome Bezel
LUX Courtesy Lights are perfect for lighting external walkways, stairs, and architectural elements of a boat, while at the same time creating a warm and comfortable atmosphere.
The CL25 offers full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in a single courtesy light unit.
Completely sealed and IP68 rated, the CL25 is suitable for interior and exterior installation. Control by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.
Dimmable as standard and powered by the LUX Light Control Module.
Specifications
Specifications
Identification
| MPN | 010-04441-00 |
|---|---|
| Barcode | 847772002531 |
Certifications & Protection
| Ingress Protection | IP68 |
|---|---|
| Number of Downlights Per Control Module | 16 |
Electrical
| Supply Voltage Range | 10.5 - 31v DC |
|---|---|
| Max Current Draw | 0.1A/0.05A |
Physical
| Front Diameter (Bezel) | 45mm |
|---|---|
| Hold Diameter for Fitting | 25mm |
| Mechanical Installation | Screw fixings |
Control & Connectivity
| Control Options | Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
|---|
