Lumishore ECLIPSE Command Center
Description
Description

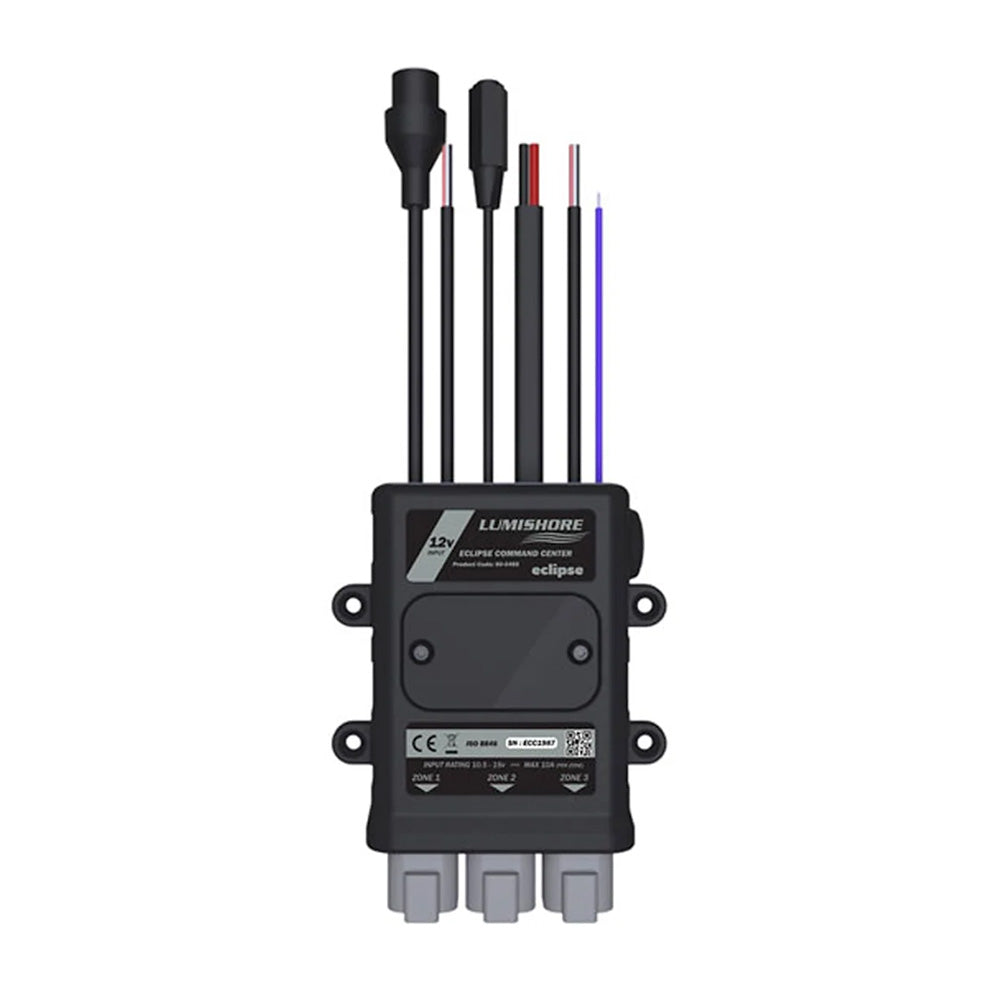

ECLIPSE Command Center
The ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.
This is the World’s first ultra-compact box to include built-in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights, and expansion modules available to increase that capability to up to 6 zones.
Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an Ethernet port. Or control your lighting zones via a simple switch.
Lumishore’s intuitive interface makes accessing and managing your lighting zones simple!
Specifications
Specifications
Identification
| MPN | 010-04486-00 |
|---|---|
| Barcode | 753759367190 |
Electrical
| Supply Voltage Range | 12V DC Only (10 - 15V DC) |
|---|---|
| Max Current Draw (12/24V DC) | 30A (3 Zones of 10A) |
| Surge Protection | Yes |
| Max Current Per Zone | 10A |
| Low Voltage Protection | Yes |
| Reverse Polarity Protection | Yes |
Control & Connectivity
| Number of Zones | 3 (add 3 more with expansion modules) |
|---|---|
| Max No. Lights Per Zone | 16 (total current draw must be 10A or less) |
Certifications & Protection
| Ingress Protection | IP67 |
|---|
Physical
| Simple Installation | Yes |
|---|---|
| Color Selection | Yes |
General
| Plug-and-Play Setup | Yes |
|---|---|
| Dimming | Yes |
| Sound-to-light | Yes |
| Strobe | Yes |
