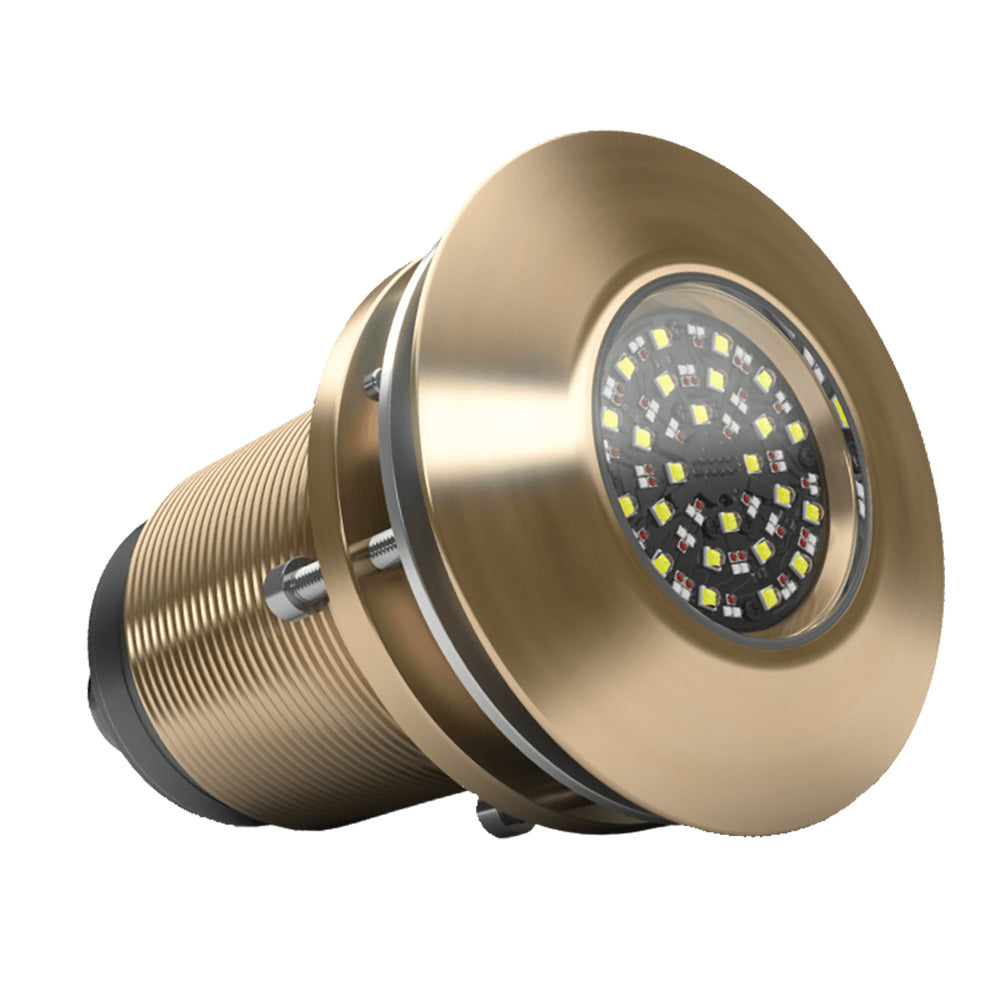

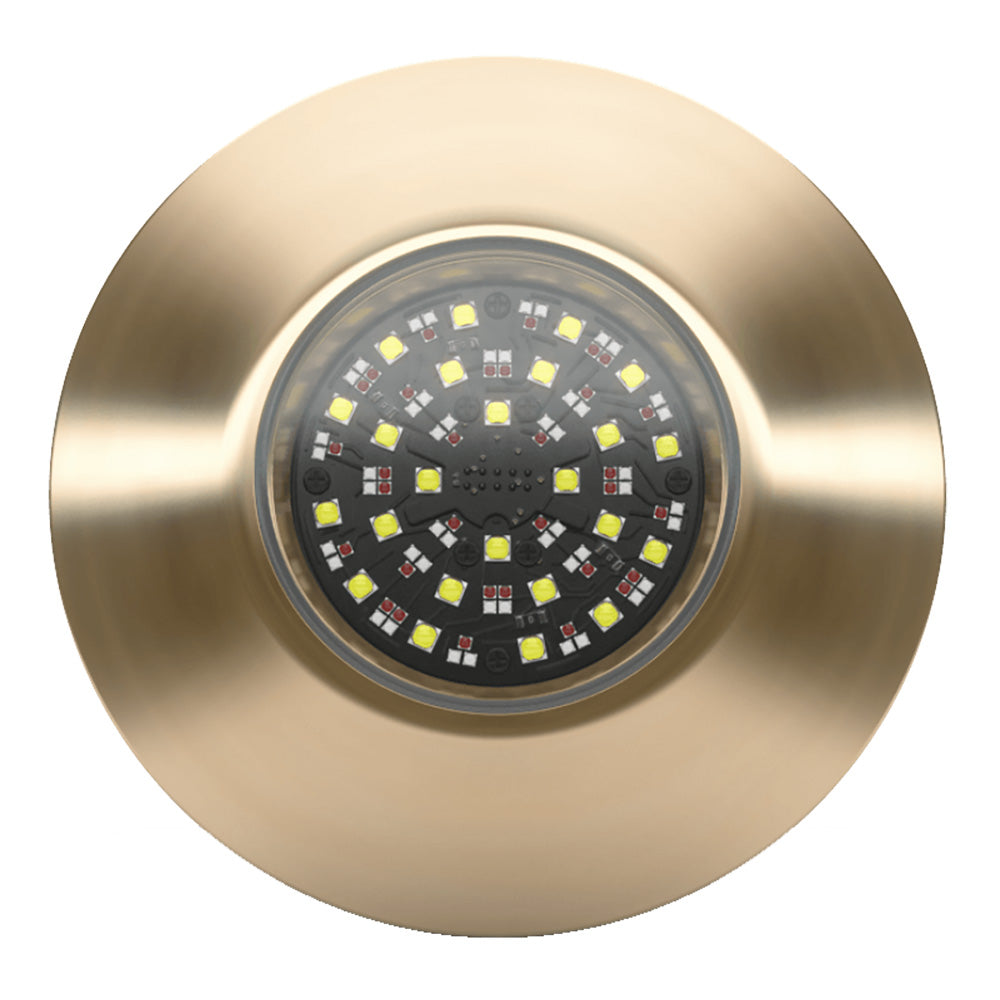

EOS TIX804 Interchangeable Thru-Hull
The TIX804 delivers a powerful 12,000 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Suitable for transom, side, and bottom mounting.
Specifications
Specifications
Identification
| MPN | 010-04532-00 |
|---|---|
| Barcode | 847772004085 |
Optical
| Lumens | 27,000 |
|---|---|
| Fixture Lumens (White) | 12,000 |
| Number & Type Of LED | White–24×10W / Green–24×3W / Blue–24×3W / Red–32×3W |
| LED Power - HICOB Array | Yes |
| Typical LED Life | 50,000+ Hours |
Certifications & Protection
| Warranty | 3 Years |
|---|
Control & Connectivity
| User Control Options | Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi) |
|---|
Physical
| Electrical Installation | Plug-and-Play Connections |
|---|---|
| Housing Type | Marine Bronze Body with Borosilicate Glass Lens |
