Mpower Bypass Module Jumper Wire

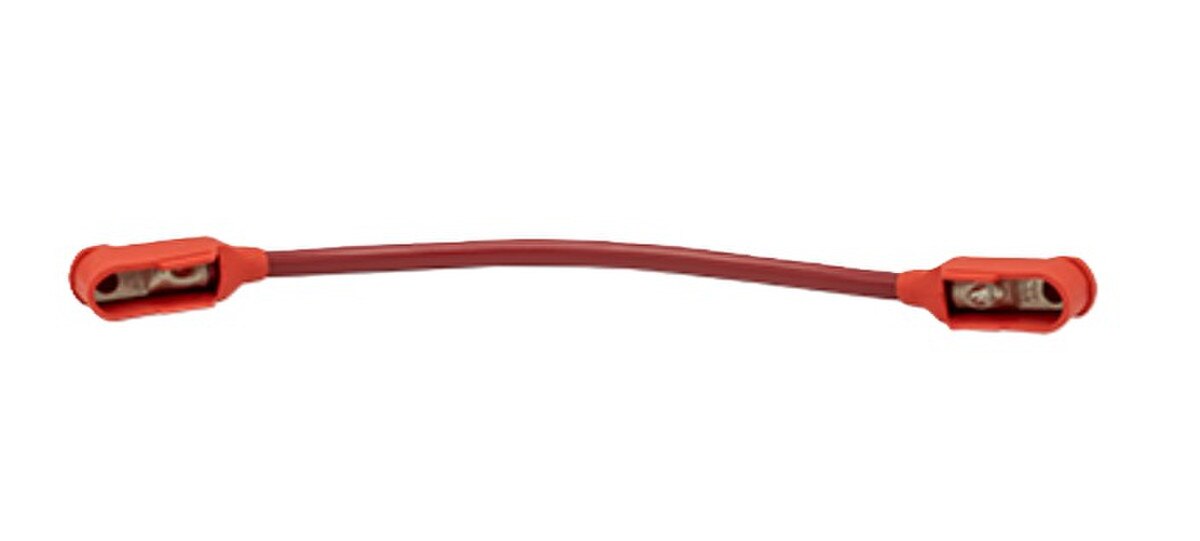

Maretron MPower CBMD12 Red Bypass Jumper Wire with Lugs (A3720)

A pre-terminated 6 AWG red jumper wire with lugs that connects the CBMD12 bypass module to the CLMD12's main DC (+) source — the power link between the two modules during bypass operation.

Why It's Worth It
When the CBMD12 is installed adjacent to the CLMD12, this jumper wire is the most direct and cleanest way to connect the CBMD12's power stud to the CLMD12's main DC (+) connection. Pre-terminated with lugs on both ends, it's a straight bolt-on connection — no cutting, stripping, or crimping required. The 6 AWG rating is sized to handle the CBMD12's 75A total current capacity. Red color coding prevents confusion with negative wiring.

Use
Install only when both the CBMD12 and CLMD12 are mounted adjacently. Connect one lug end to the CBMD12's 1/4"-20 power stud and the other to the CLMD12's main DC (+) connection. Sold separately as a standalone accessory, and also bundled in the CBMD12-R kit alongside the A3721 fuse pack.

In The Box:

Red 6 AWG Bypass Jumper Wire with Lugs

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
