Mpower Fuse Kit

Maretron MPower CBMD12 Fuse Pack (A3721)

A pre-assorted ATC fuse pack for the Maretron MPower CBMD12 bypass module — the fuses that protect each individual load circuit during manual bypass operation.

Why It's Worth It
The CBMD12's 12 ATC fuse slots each need a fuse sized to match the corresponding CLMD12 output channel's current rating — 5A for the 5A channels, 10A for the 10A channels. Rather than sourcing individual fuses separately and cross-referencing which value goes in which slot, this pre-assorted pack provides exactly the right mix for a complete CBMD12 installation, with two spare slots of additional fuses included as backups. The fuse slot markings on the CBMD12 eliminate the need to cross-reference a chart during installation.

Use
Install fuses into the CBMD12's ATC fuse slots to match each channel's current rating — refer to the CBMD12 installation manual for the fuse slot map. The correct fuse values per slot are: 4 x 5A (for 5A output channels), 7 x 10A (for 10A output channels), 3 x 15A (for 12A output channels). Sold separately as a standalone accessory, and also bundled in the CBMD12-R kit alongside the A3720 jumper wire.

In The Box:

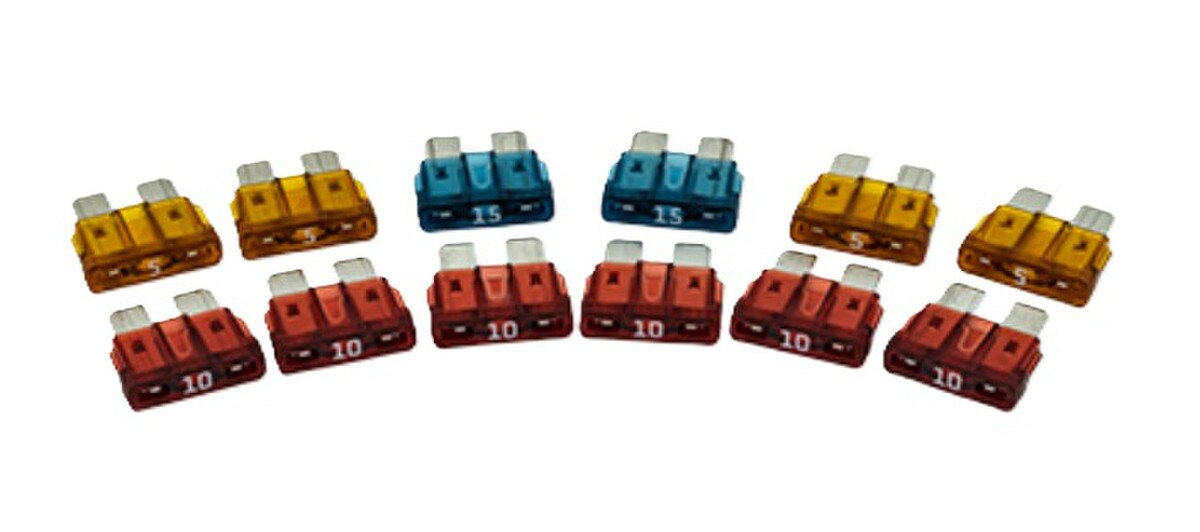

ATC Fuse Pack (14 Fuses Total)

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
