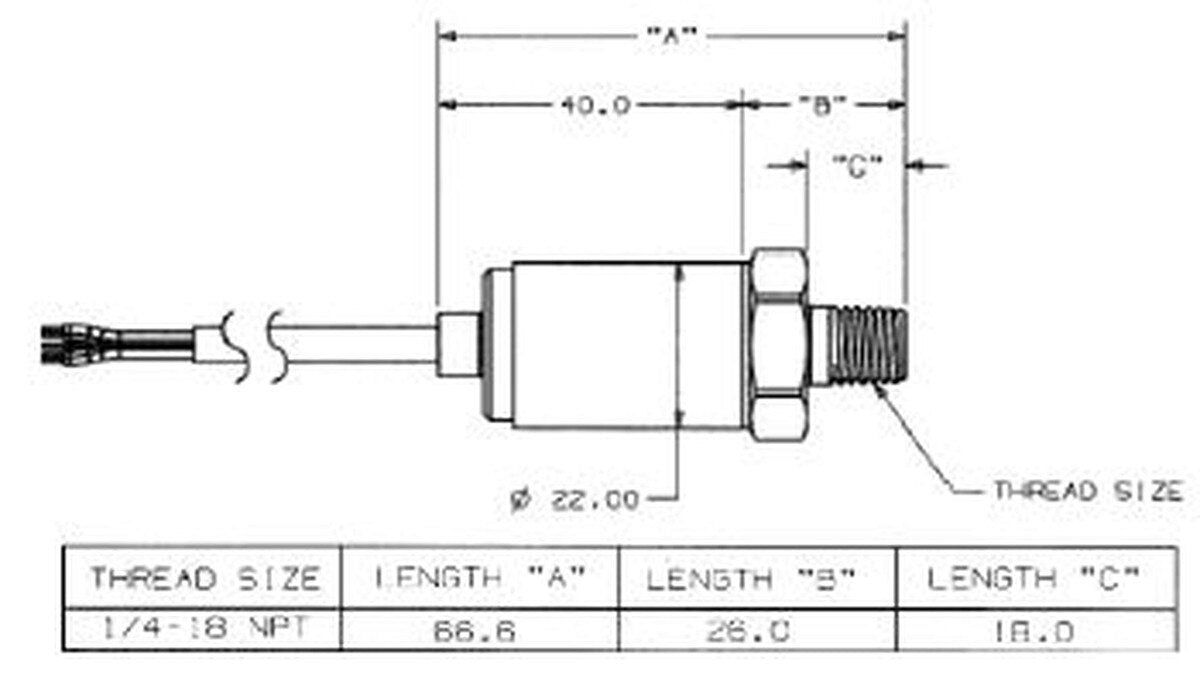

Pressure Transducer (0-1000 psi)

Maretron Pressure Transducer — 0 to 1,000 PSI, Gauge Type (PT-0-1000PSI-01)

A high-range gauge-type transducer that connects to a Maretron FPM100 Fluid Pressure Monitor to put pressure readings on your NMEA 2000 network — sized for high-pressure hydraulic steering, stabilizers, and similar high-pressure marine systems.

Why It's Worth It
For maximum accuracy, always use the transducer with the smallest range sufficient for your application — a 0-1000 PSI transducer on an 800 PSI hydraulic system gives you far better resolution than the 5000 PSI unit on the same circuit. This gauge-type transducer measures pressure relative to atmospheric (not absolute), and has a vent tube in the connecting cable to maintain that reference — keep the vent tube end dry and unkinked or readings will drift. At this pressure range, a PT-SNUB-01 pressure snubber is strongly recommended to protect the transducer from hydraulic spikes and surges.

Use
Thread into any 1/4" NPT female fitting. Install torque 133-177 in-lbs (15-20 Nm). Install a PT-SNUB-01 pressure snubber first when monitoring spike-prone systems such as hydraulics, then thread the transducer into the snubber's outlet. Connect the white wire to the positive (+) terminal and the brown wire to the negative (-) terminal of a free FPM100 channel. Not approved for use with gasoline.

In The Box:

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
