NMEA 2000 To USB Gateway

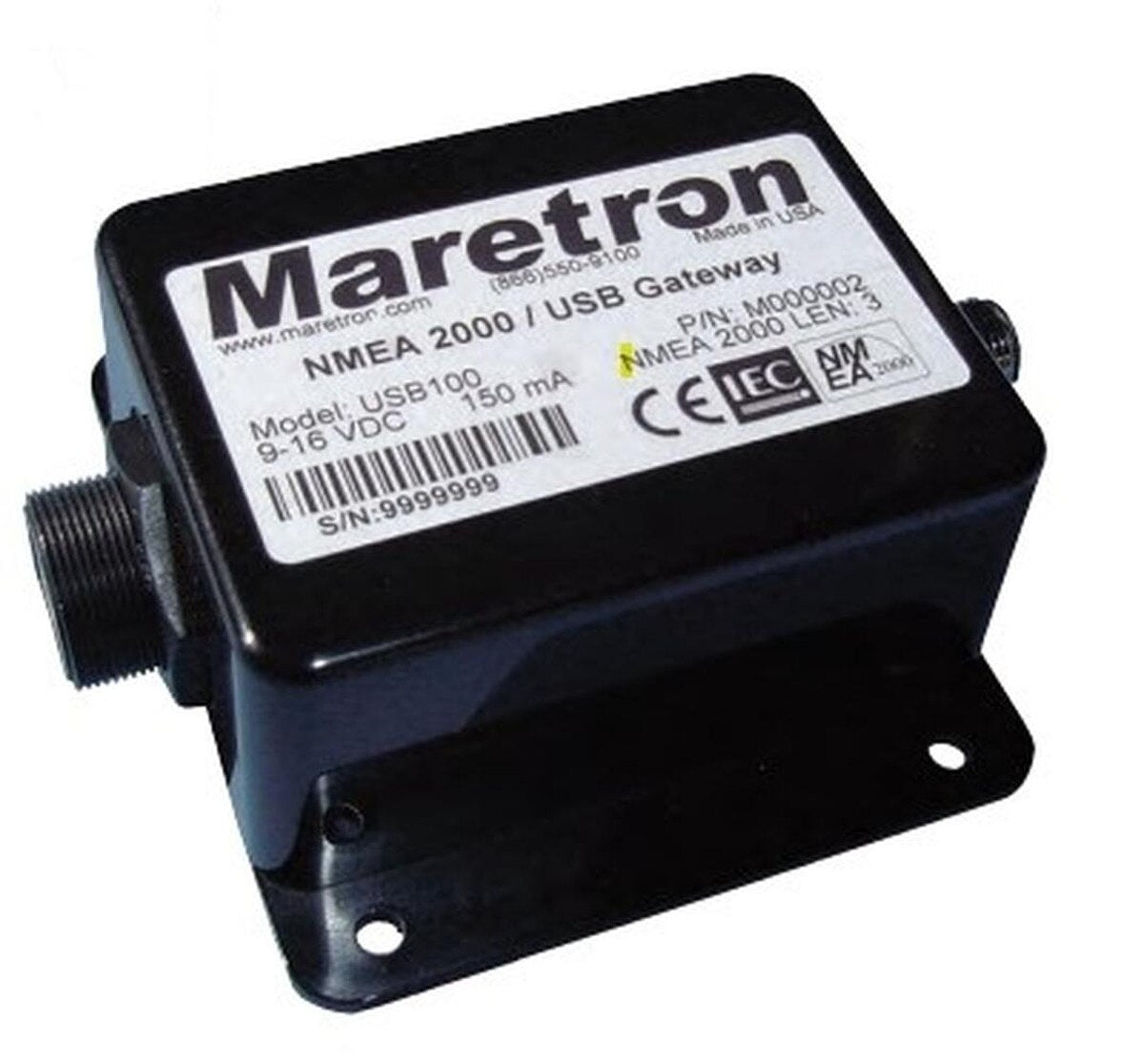

Maretron USB100-01 NMEA 2000 / USB Gateway

A single-cable bridge between your NMEA 2000 network and any Windows PC — connects navigation and vessel monitoring software to every instrument on the network without multiplexers or a maze of serial cables.

Why It's Worth It
Traditional PC navigation setups wire each instrument individually into a serial multiplexer, which is messy, expensive, and brittle. The USB100 replaces all of that with one Micro-C NMEA 2000 connection on one side and one USB cable to the PC on the other. Every device on the NMEA 2000 network becomes visible to the PC instantly — GPS, depth, speed, wind, heading, engine data, and more. For older navigation software that only understands NMEA 0183, the USB100 automatically translates NMEA 2000 messages into the equivalent NMEA 0183 sentences, so you can keep running software you already own while gaining access to the full NMEA 2000 network.

Use
Connects to the NMEA 2000 network via a single Micro-C connector. Plug the USB cable into any Windows PC to connect using Maretron's N2KView vessel monitoring software, N2KAnalyzer network diagnostic software, or any NMEA 0183-compatible navigation or charting program. Mounting orientation is flexible — horizontal, vertical, or upside down — and the IP67 housing handles damp locations without additional protection.

NMEA 0183 Sentences Translated
GPS data, Speed Over Ground (SOG), Course Over Ground (COG), vessel heading, rudder angle, depth, speed, distance log, weather, wind, Bearing Orig. to Dest. (BOD), Bearing to Waypoint (BTW), Distance to Waypoint (DTW), Velocity Made Good (VMG), ETA, Time to Go (TTG), Cross Track Error (XTE), Set/Drift, and more.
