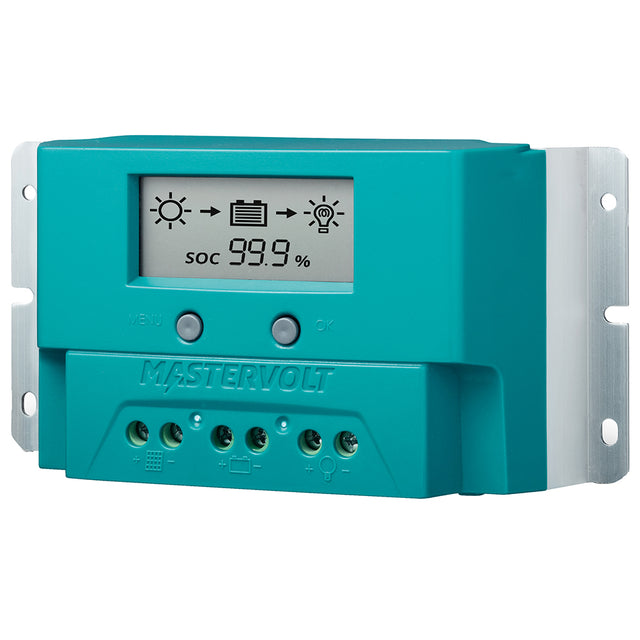

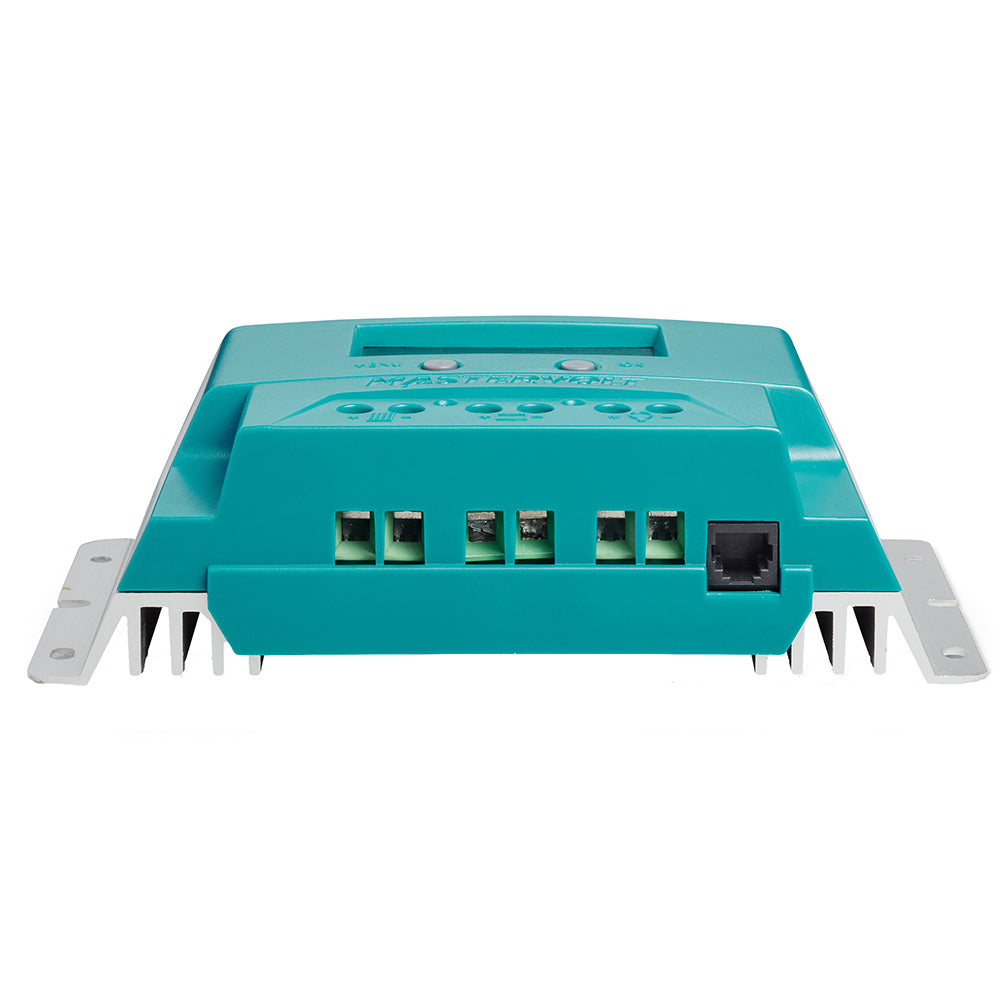

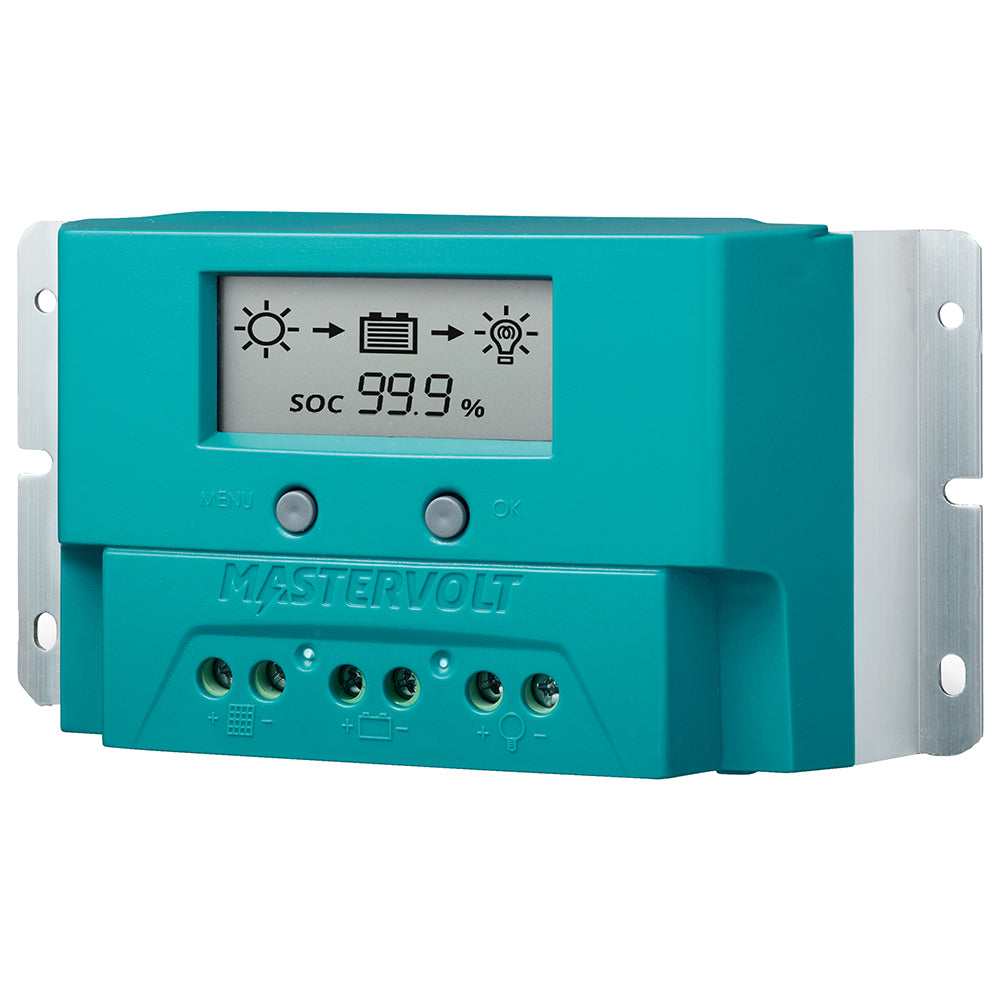

SCM40 PWM
Features:
- High efficiency: your batteries are charged quickly
- Capacity for solar panel configurations of up to 3600 Wp
- Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries
- Fast and flexible setting of battery type
- Battery temperature sensor for long lifespan
- Automatic 12V and 24V detection
- Switchable output
- Noiseless operation
- LCD display
- Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity
Specifications
Specifications
Identification
| MPN | 131824000 |
|---|---|
| Barcode | 816882022173 |
Electrical
| System Voltage Battery | 12/24V auto select |
|---|---|
| Max Charge Current at 25 degrees C/77 degrees F | 40A |
| Switchable Output (Max Current) | 40A |
General
| Battery Types | AGM, gel, wet, Lithium Ion |
|---|---|
| Battery Temp Sensor | Yes |
| Energy Comsumption (night) | 4 mA |
| Communication | PC-Link (optional) |
| Cooling | passive |
| Display/Read-Out | LCD display with battery state of charge, status output, battery setting |
