Maxwell RC10-8 Capstan 12V Windlass - 5/16" Chain & 5/8" Rope

RC10-8 Capstan 12V Windlass - 5/16" Chain & 5/8" Rope

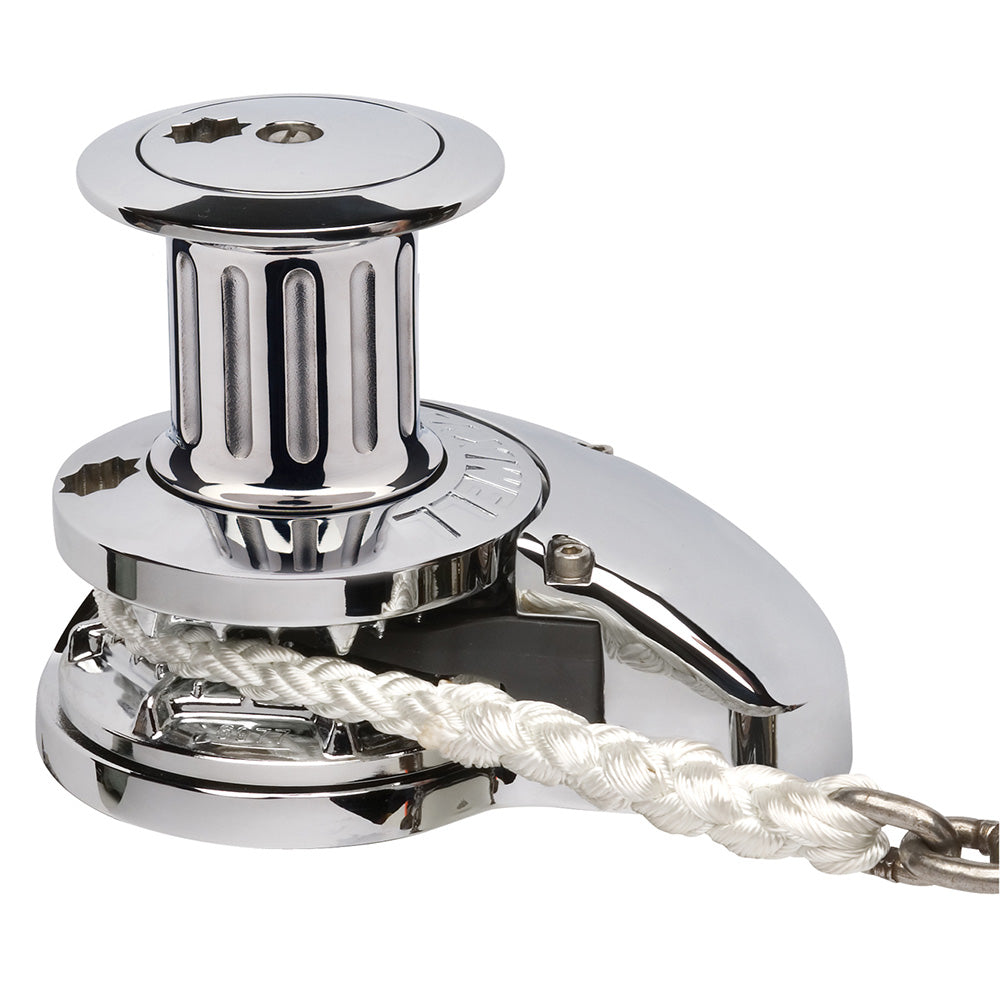

The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10-8 is a second-generation rope/chain windlass and is a favorite choice for cruising yachts, launches, pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.

The patented Wave Design™ rope/chain gypsy (chain wheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.

Features:

• Works just as effectively with all-chain rode
• The gearbox can be removed by hand and without tools for easy maintenance and inspection
• Full disassembly capability of the top works utilizing only the handle provided and an Allen key
• Manual override and ‘Free Fall’, using the emergency crank/clutch handle provided
• Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel
• Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gearbox and dual-direction solenoid
• The unique spacer tube design allows for installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal orientation in virtually all installation situations

In The Box:

Package Dimensions:

20" x 17" x 12"

Available Method: Ground

* ALL WARRANTY IS THROUGH MANUFACTURE *
