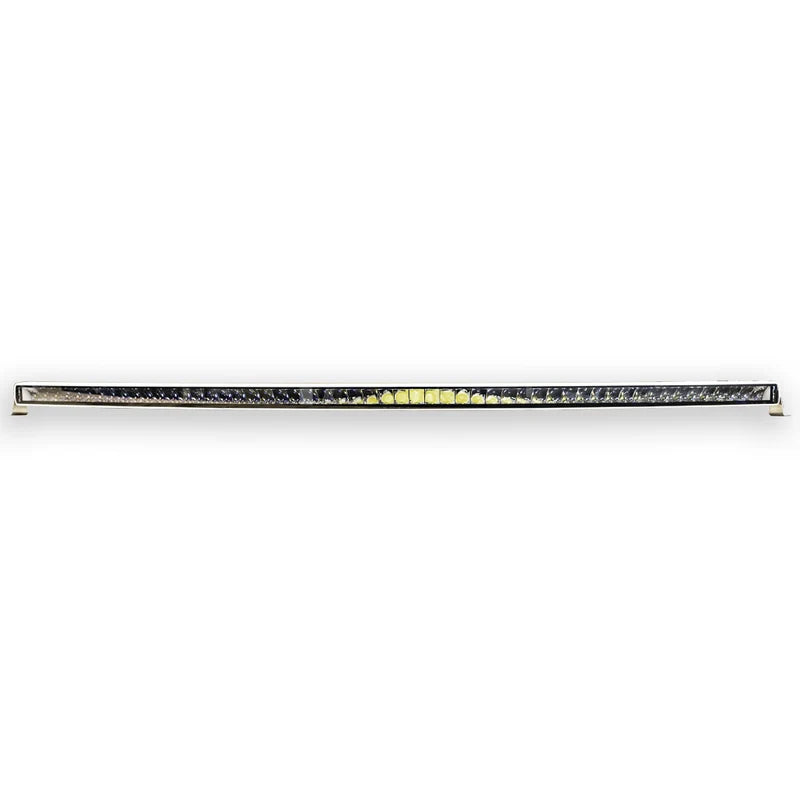

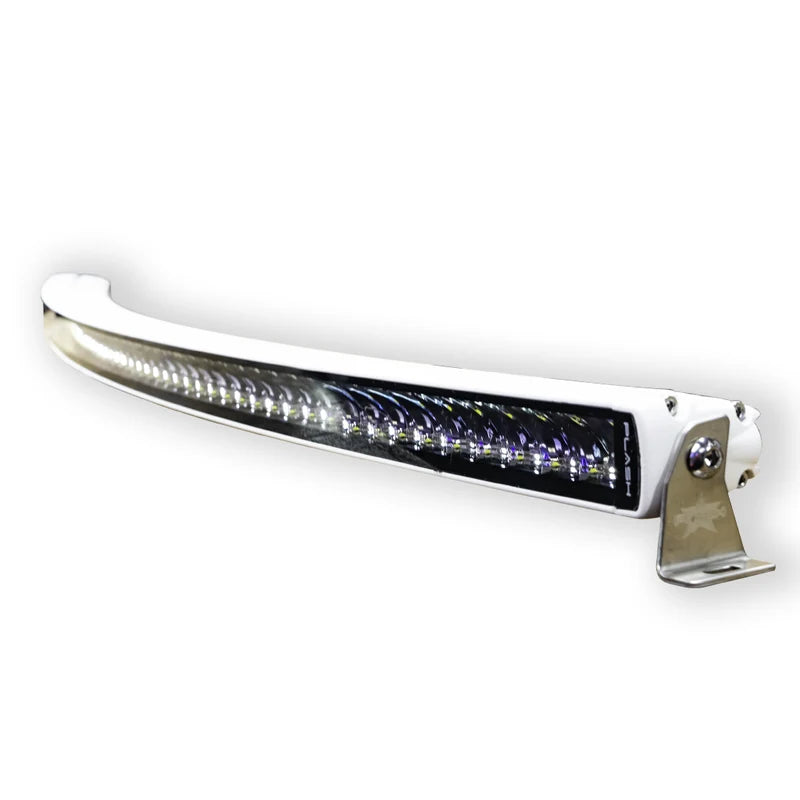

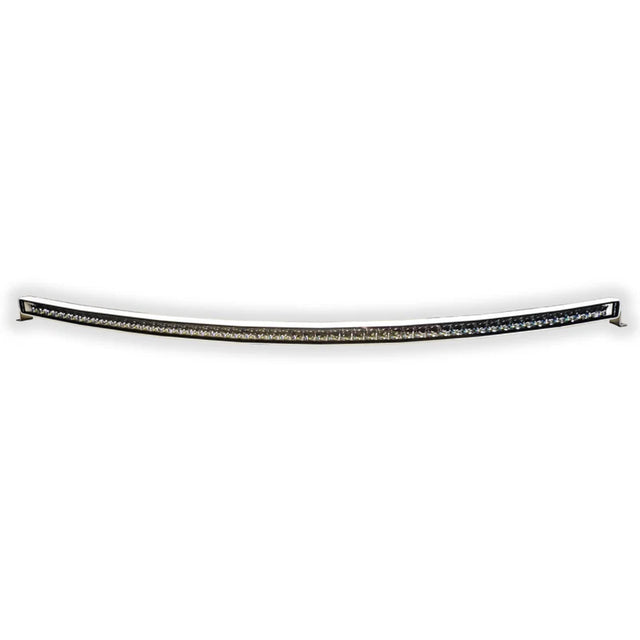

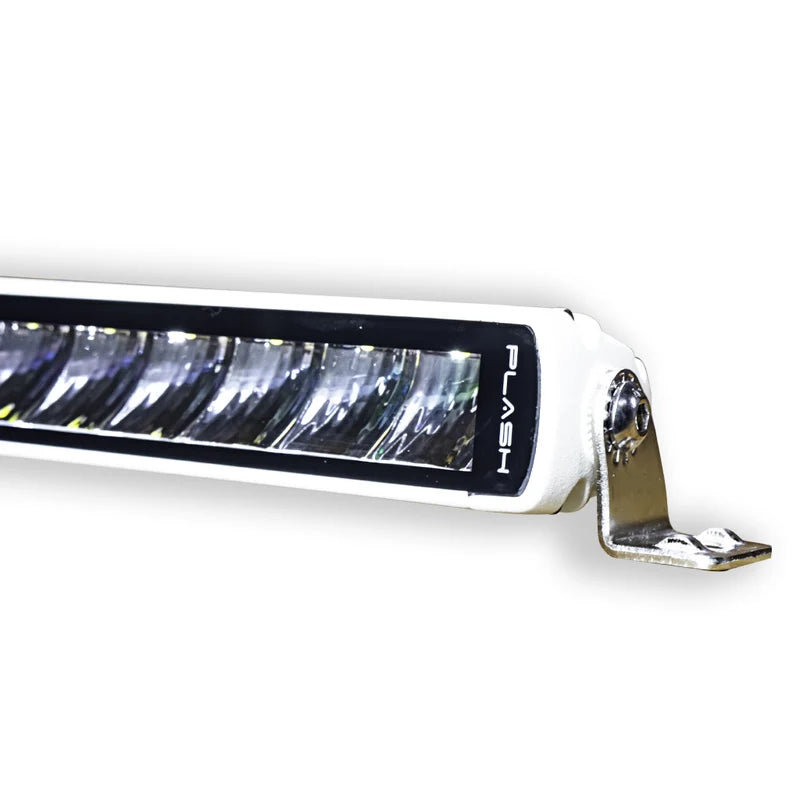

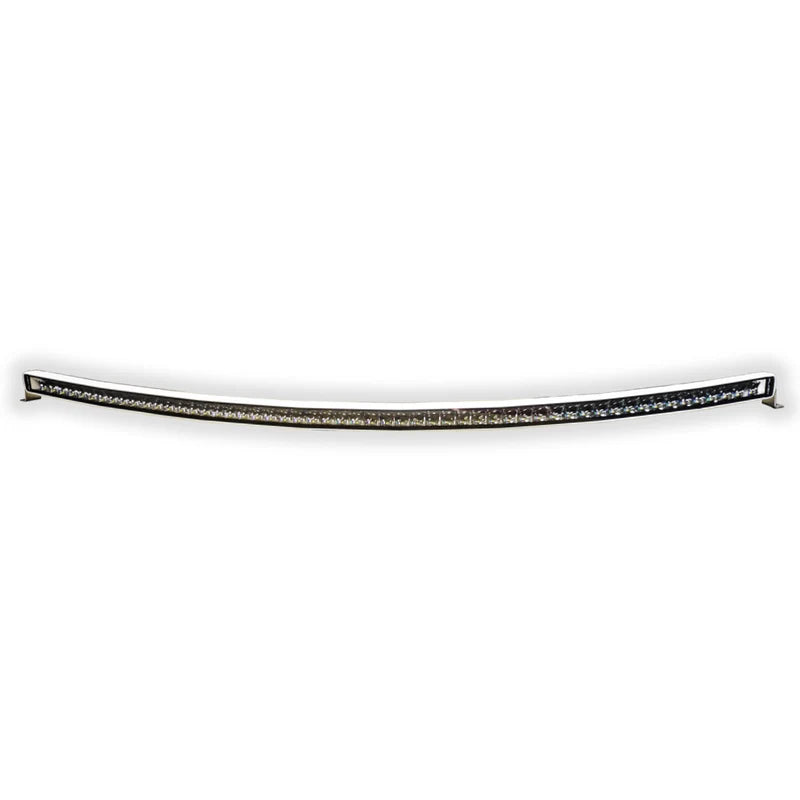

The Plashlights SRX2 50" curved single row LED light bar in marine white is made for center console boats. It throws light out toward the horizon instead of down onto the bow. A sharp cutoff line limits the light that falls below the mount point, and reflection off the bow stays low.
The body is a single extruded unit with isolated dissimilar metals and chrome-coated stainless hardware rated for salt spray. A pressed-fit assembly uses fewer fasteners, and a 9 ft marine-grade power wire is included.
Features
- About 22,680 lumens from premium 5W OSRAM CSHP LEDs
- Single row precision beam with a clean cutoff line
- IP67 rated, with chrome-coated stainless hardware
- Integrated temperature control to protect LED life
- Over/under voltage and reverse polarity protection
- Low RFI/EMC interference, safe for VHF and AIS equipment
- Lifetime warranty with registration
Specifications
Specifications
Identification
| MPN | SRX2-50-R-WHT |
|---|
General
| Series | SRX2 Single Row |
|---|---|

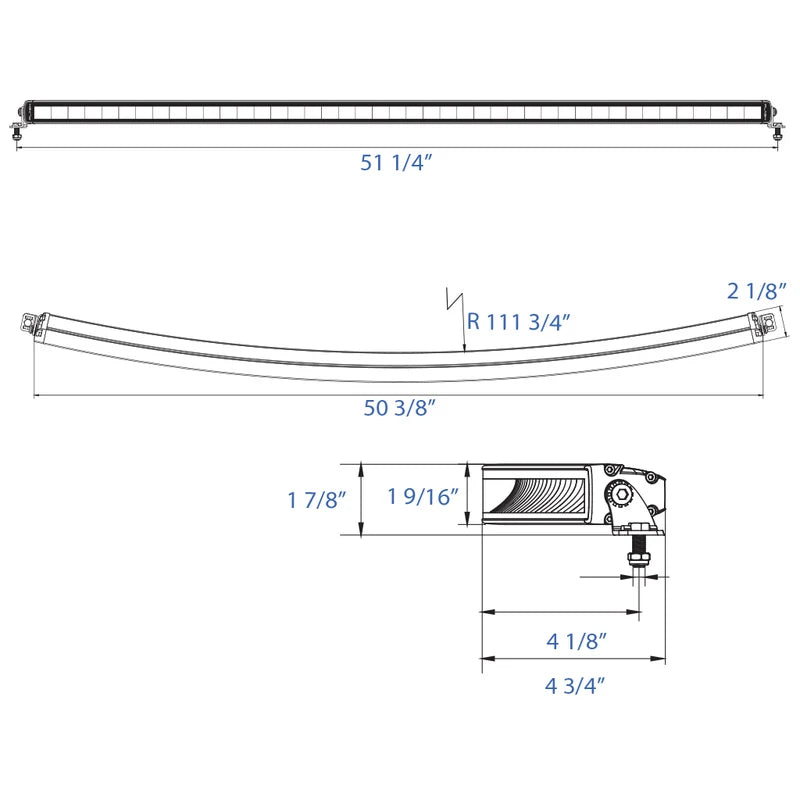

| Length | 50" curved |
| Housing Color | White |
| Beam | Combination, horizon-focused with sharp cutoff |
| Max Distance | 4,183 ft |
| Waterproof Rating | IP67 |
| Operating Temperature | -40°F to +145°F |
| Rated Life | 50,000 hours or 5 years of continuous use |
Light Output
| Lumens | Approx. 22,680 (varies by unit and voltage) |
|---|---|
| LEDs | 5W OSRAM CSHP |
| Color Temperature | 5700K cool white |
| Power | Approx. 270W |
Electrical Features
| Input Voltage | 9-32V DC |
|---|---|
| Current Draw | 19.2 A @ 12V DC; 10.1 A @ 24V DC |
| Protection | Over/under voltage and reverse polarity; integrated temperature control |
Construction
| Housing | Extruded 6063 aluminum, single-unit body |
|---|---|
| Lens | Scratch-resistant, high-impact polycarbonate |
| Hardware | Chrome-coated stainless steel |
| Mounting | 2 chrome-coated adjustable brackets |
| Power Wire | 9 ft copper-tinned marine-grade |
Compliance
| Interference | Low RFI/EMC; safe for VHF and AIS equipment |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
Lifetime (registration required)
* ALL WARRANTY IS THROUGH MANUFACTURE *
