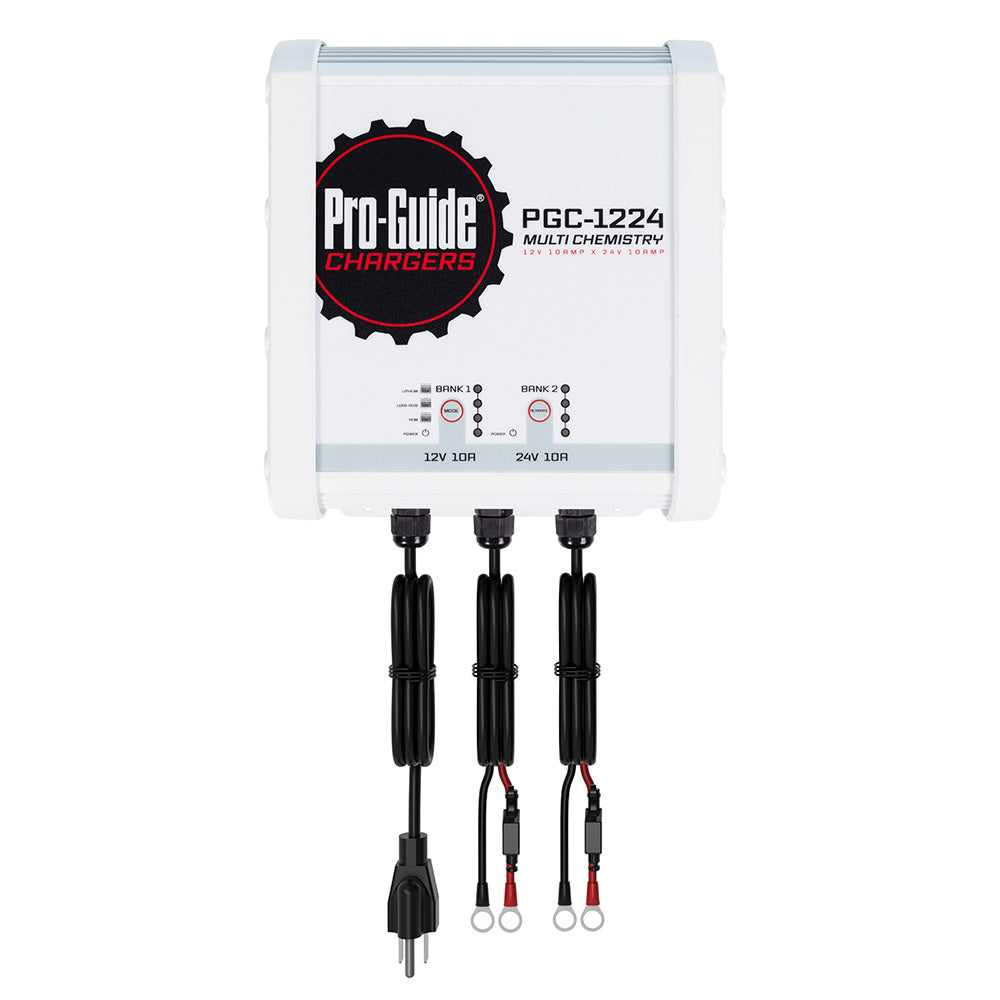

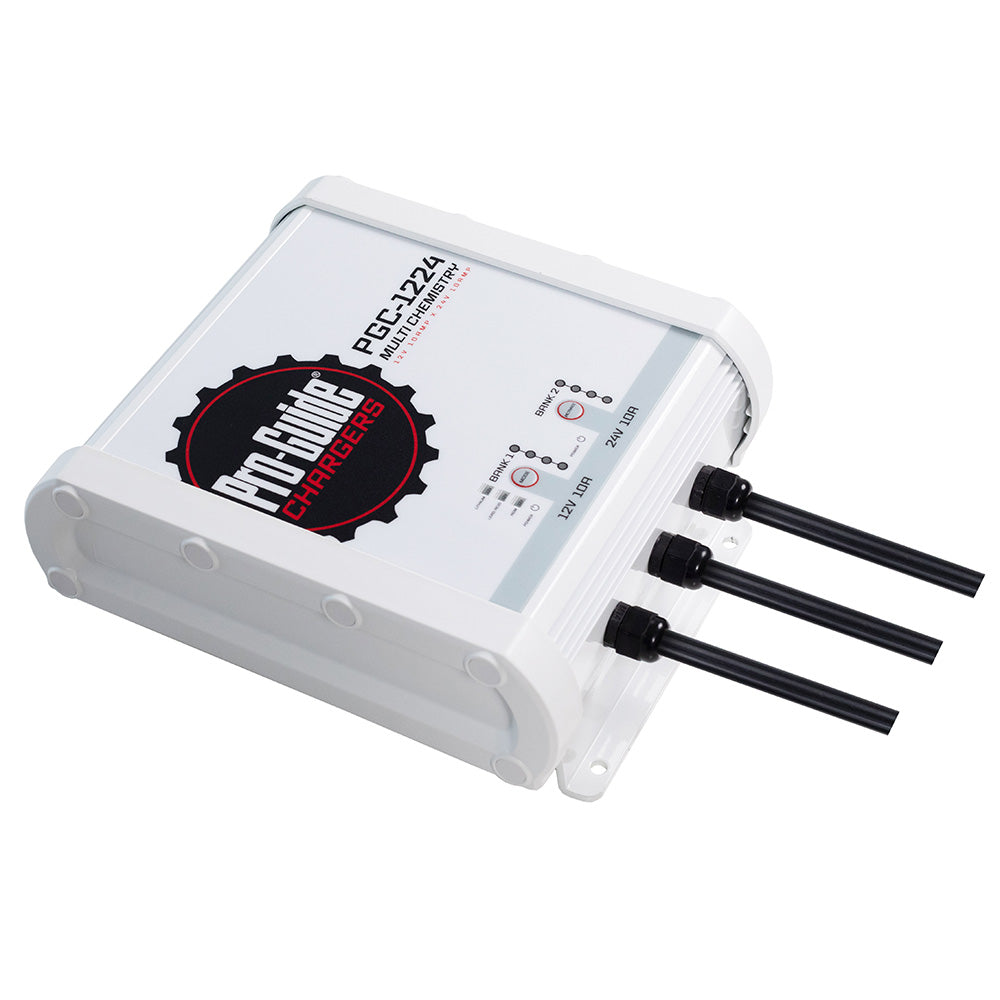

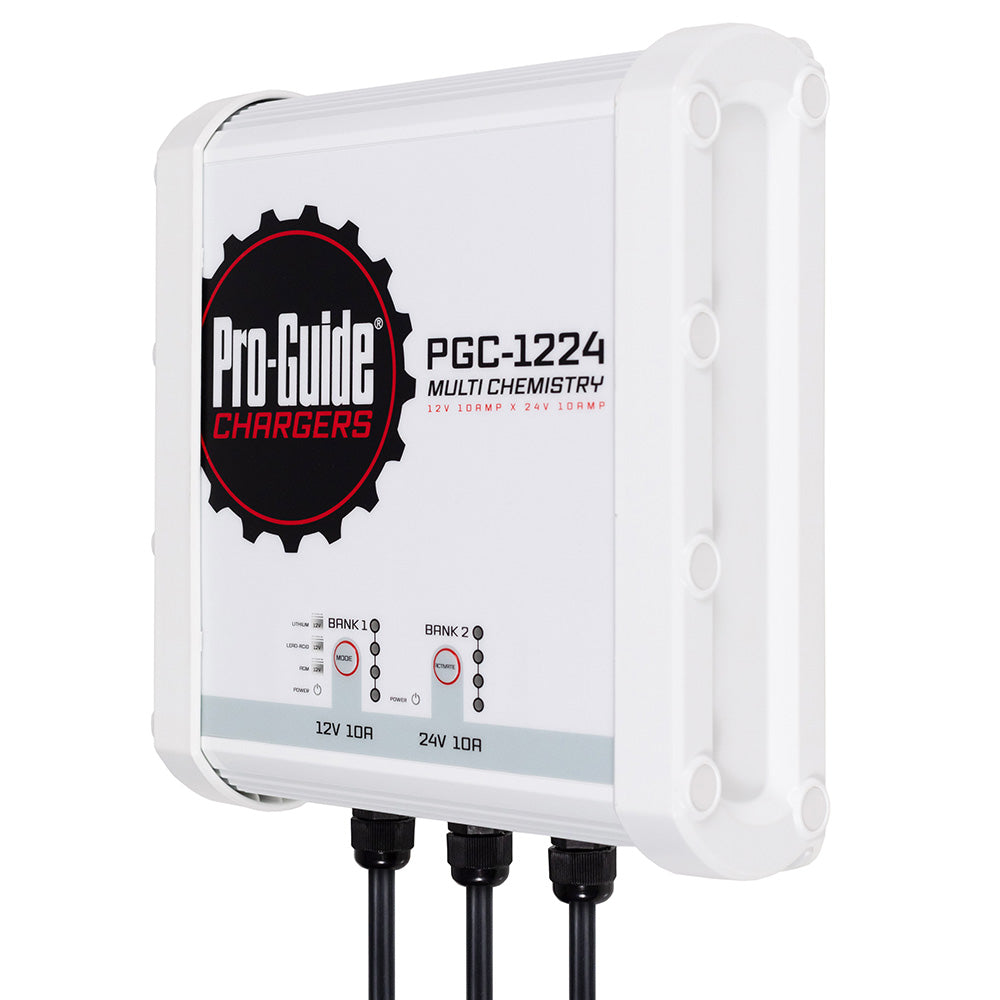

2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp
The Pro-Guide PGC-1224 is a 12V Lead Acid / AGM / Lithium & 24V Lithium on-board battery charger.
Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.
Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 24V Lithium Battery(s).
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.
Protection:
- Output Over-Voltage
- Output Over Current
- Output Short Circuit
- Output Reverse Polarity
- Over Temperature
Input:
Specifications
Specifications
Identification
| MPN | PGC-1224 |
|---|---|
| Barcode | 810145910795 |
Electrical
| Battery Type | 12V Lead Acid/AGM/Lithium & 24V Lithium |
|---|---|
| Output Voltage | DC 12V x 1 & DC 24V x 1 |
| Max Output Voltage | 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery & 28.8-29.2 for 24V Lithium Battery |
| Output Current | 10A x2 |
| Input Voltage | AC 110-120V |
| Input Current | <6A |
Physical
| Length | 8.19" |
|---|---|
| Width | 9.96" |
| Height | 3.86" |
| Weight | 14.3 lbs |
Certifications & Protection
| IP Rating | 68 |
|---|
Performance
| Frequency | 60Hz |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
