Raymarine  |  SKU: T70546

Axiom 2 XL 19

$9,99999
Package Type

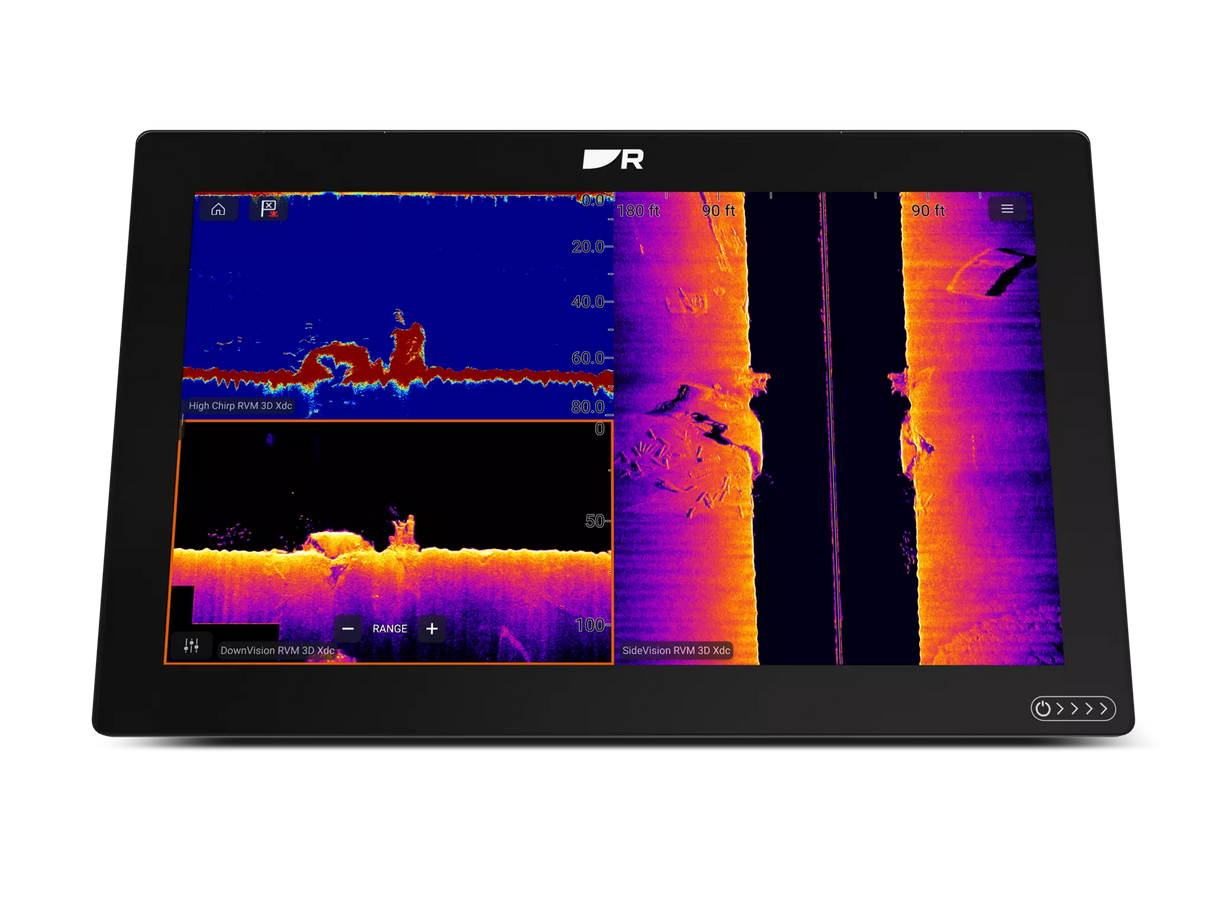

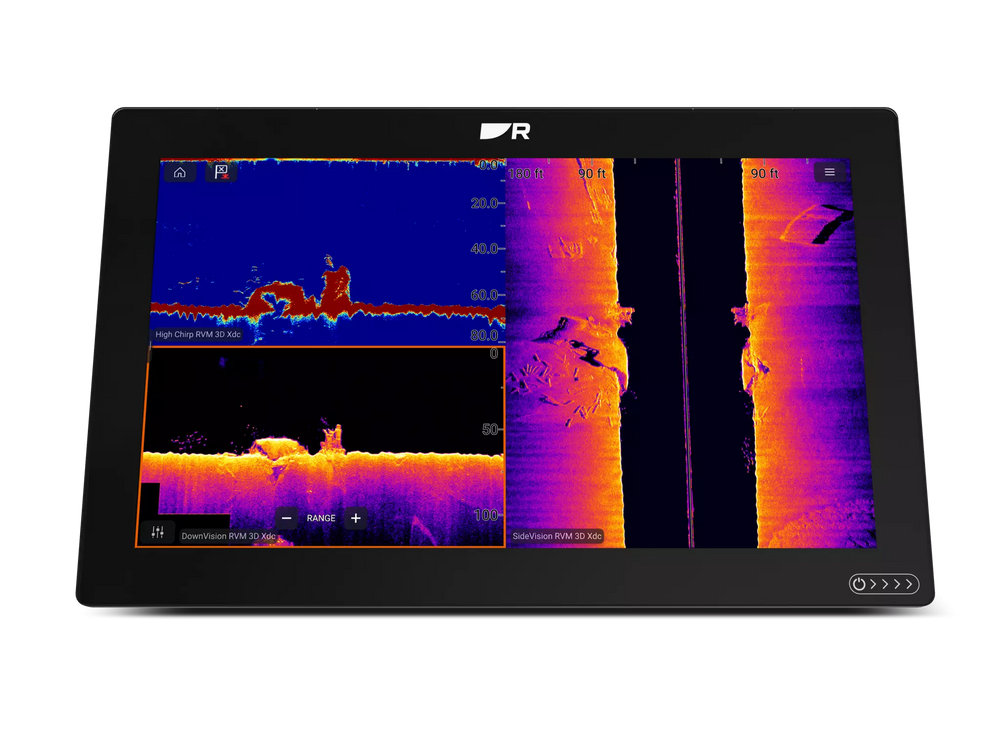

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

19" Chartplotter
Barcode: 723193844922
19.0 lb
  • Physical
    Dimensions:
    W: 18.18" (461.78 mm)
    H: 11.40" (289.44 mm)
    D: 6.89" (174.95 mm) (Including Cables)
    Weight: 16.76 lbs (7.6 kg)
  • Screen
    Touchscreen: Yes
    Size: 18.5"
    Resolution: 1920 x 1080
    IPS Display: Yes
  • Sonar
    Built In Sonar: No
    Requires Sonar Module
  • Power
    Power Input: 8-32v DC
    Power Draw: 8.98 A @ 12v
    Fuse: 15 A
  • Connections
    Wireless: Bluetooth 4.0, WiFi
    Physical Connections:
    - Power
    - RayNet Network (3)
    - DeviceNet (NMEA2000)
    - USB Accessory (Micro)
    - USB Touch (USB-A: Input, USB-B: Output)
    - HDMI Out
    - HDMI In
    - BNC Video In (2
    --Video1: Alarm/Video Cable
    --Video 2: On Power Cable
    - External GPS (TNC)
  • Other
    GPS: Internal (10 Hz)
    * Remote Card Reader Required *
  • Built-In Chart
    LightHouse NA
  • Water Rating
    IPx7
  • Temperature Range
    -25°C to +55°C (-13°F to 131°F)
