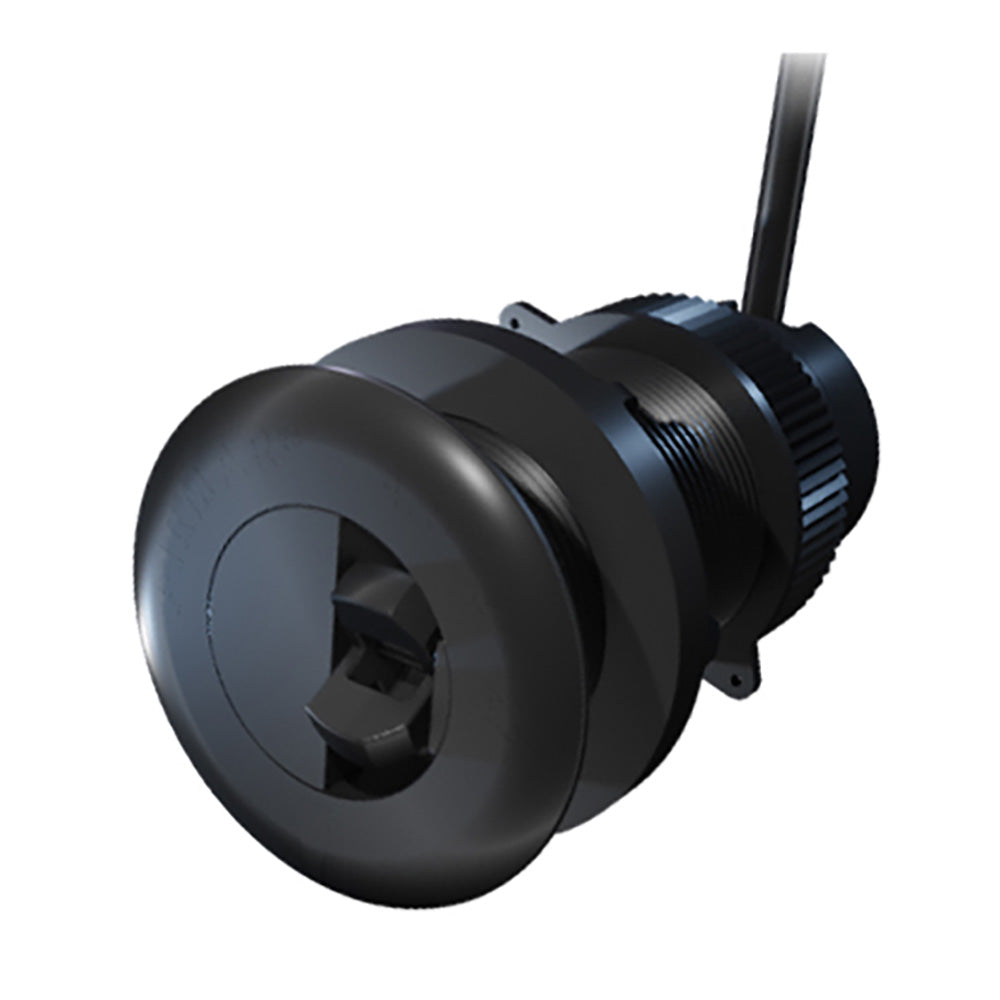

DST810 Gen2 0° Thru Hull
The DST810 Gen2 is a Smart™ Multisensor through-hull transducer that offers the depth, speed, and temperature functions in one compact thru-hull fitting. The low-profile, retractable sensor computes accurate depth, speed, and temperature data and communicates on a single NMEA200 data cable. The DST810 Gen2 also features an integrated vessel attitude sensor and Bluetooth technology that allows boaters a simple way to calibrate speed-through-water using Airmar’s CAST mobile app. The Gen2 paddle wheel design delivers improved speed accuracy from .3 to 45 knots. The DST810 Gen2 features and SeaTalkng connector for networking with Raymarine instruments and multifunction displays.
Specifications
Specifications
Identification
| MPN | E70667 |
|---|---|
| Barcode | 723193846148 |
Physical
| Material | Plastic |
|---|---|
| Max Depth (Ft) | 330 (100m) |
| Beam Width | N/A |
| Hull Material | Fibreglass/Aluminum |
Performance
| Frequency (kHz) | 235 kHz |
|---|
General
| Records | Depth, Speed Temperature, Heel, Trim |
|---|---|
| Note 1 | Cable Length (8ft) |
| Deadrise Angles | Up to 22° |
