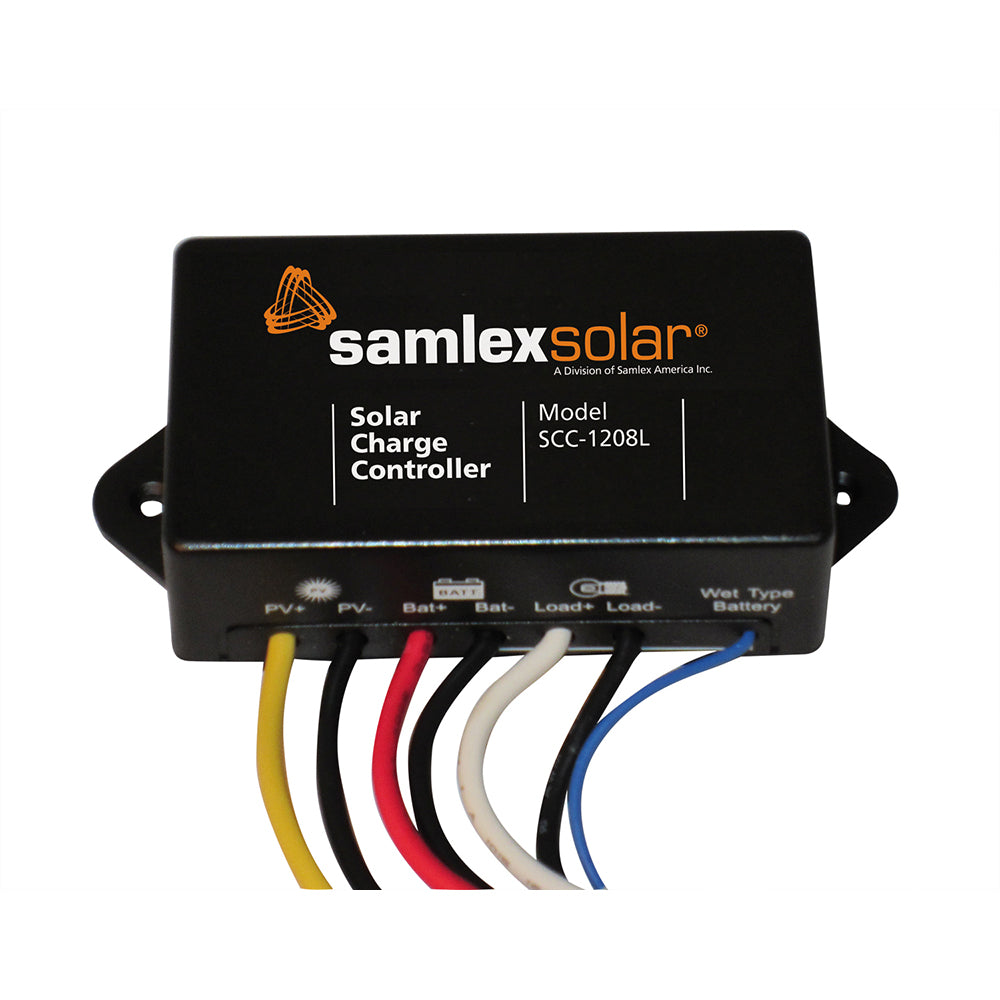

Solar Charge Controller - 12V - 8A
The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.
Features:
- Micro-controller based for automatic, intelligent operation
- Designed for 12V nominal solar panels and 12V battery systems
- 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
- For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
- Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
- Automatically turns on lights when dark and turns off during the day
- Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
- Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
- Wide operating temperature range of -40°C to + 60°C
Specifications
Specifications
Identification
| MPN | SCC-1208L |
|---|---|
| Barcode | 622988086939 |
Applications:
| Note 1 | Off-grid mobile rural systems |
|---|---|
| Note 2 | Rural electrification |
| Note 3 | Power supply for remote equipment |
| Note 4 | Monitoring systems for the oil & gas industry |
| Note 5 | Traffic, security, environment, and other remote monitoring and signaling systems |
| Note 6 | Water pumping systems |
