Scanstrut Ventura Series Quick Connect Cold Water w/Wash Down Kit
Description
Description

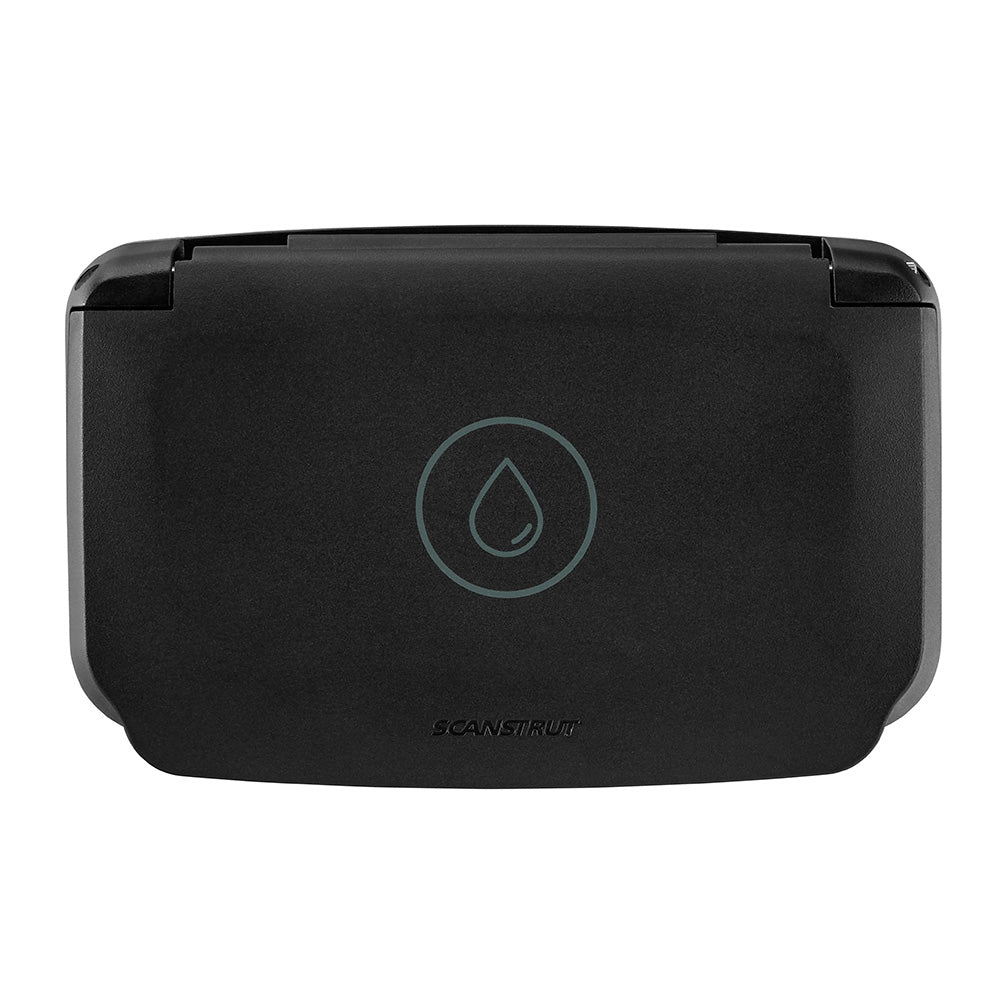

Ventura Series Quick Connect Cold Water with Wash Down Kit
Upgrade Your Onboard Experience with the Quick-Connect Cold Water Outlet & Wash Down Kit!
Keep your deck spotless and your gear shipshape with the Scanstrut Ventura Series Quick-Connect Cold Water Outlet, built for life on the water.
Whether you're rinsing off sandy feet after a beach day, washing down muddy bikes, hosing off the dog, or cleaning up after a long day on the trail, the Scanstrut Ventura Series Quick-Connect Cold Water Outlet has your back.
Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.

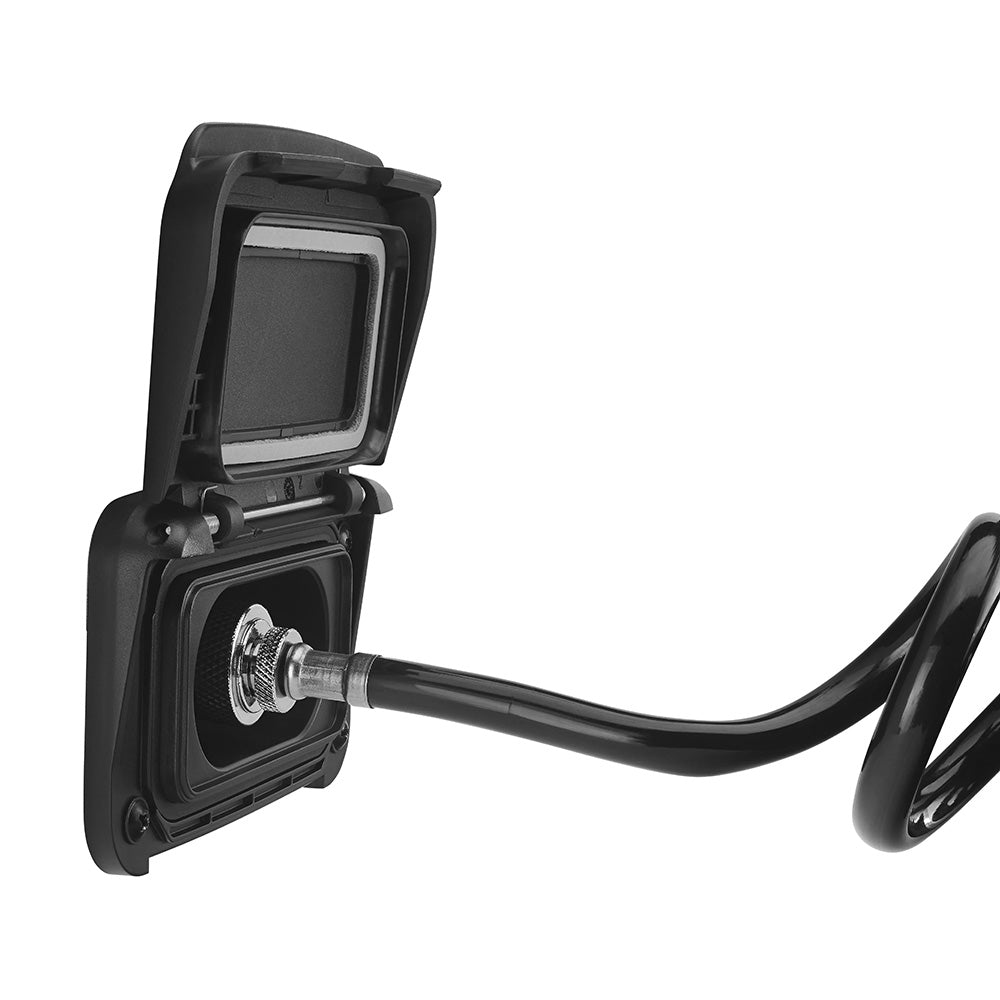

Designed for fast, hassle-free access to cold water wherever the road takes you, this outlet features a nickel-plated brass Quick-Connect coupling for effortless connection and smooth water flow.

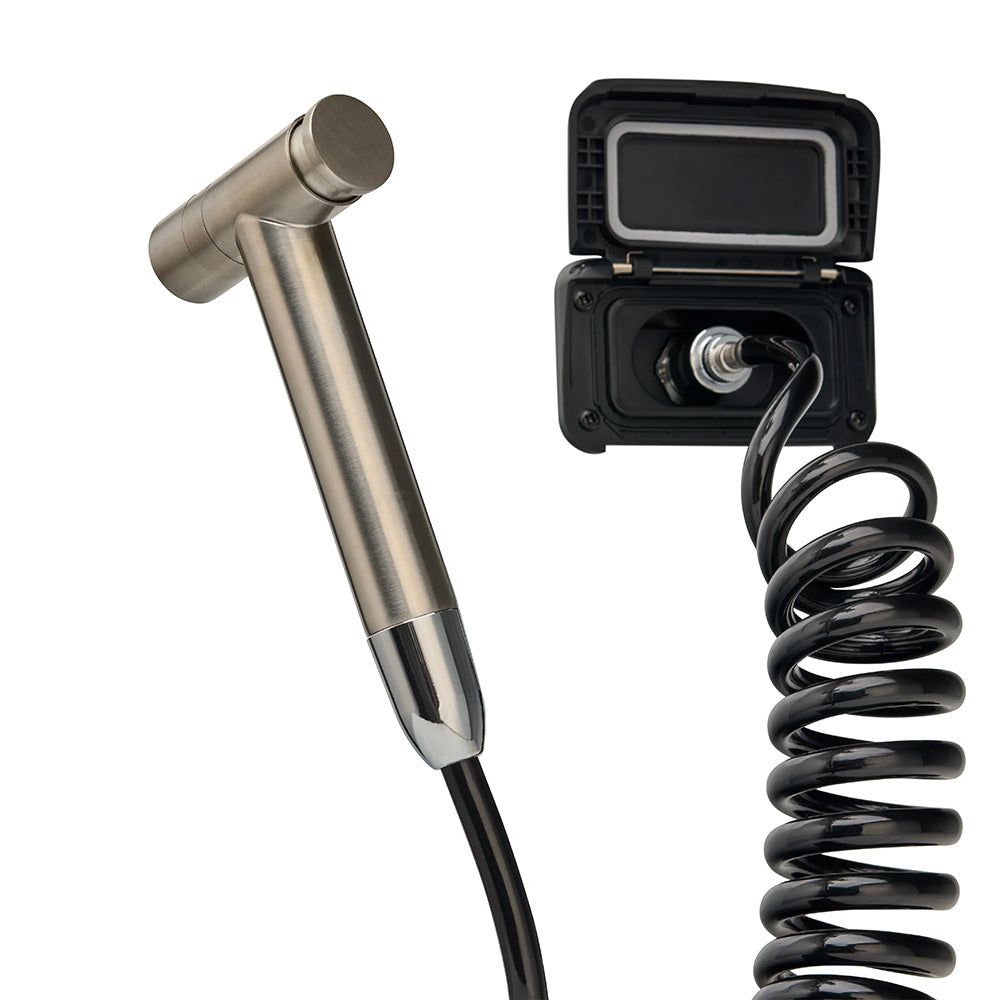

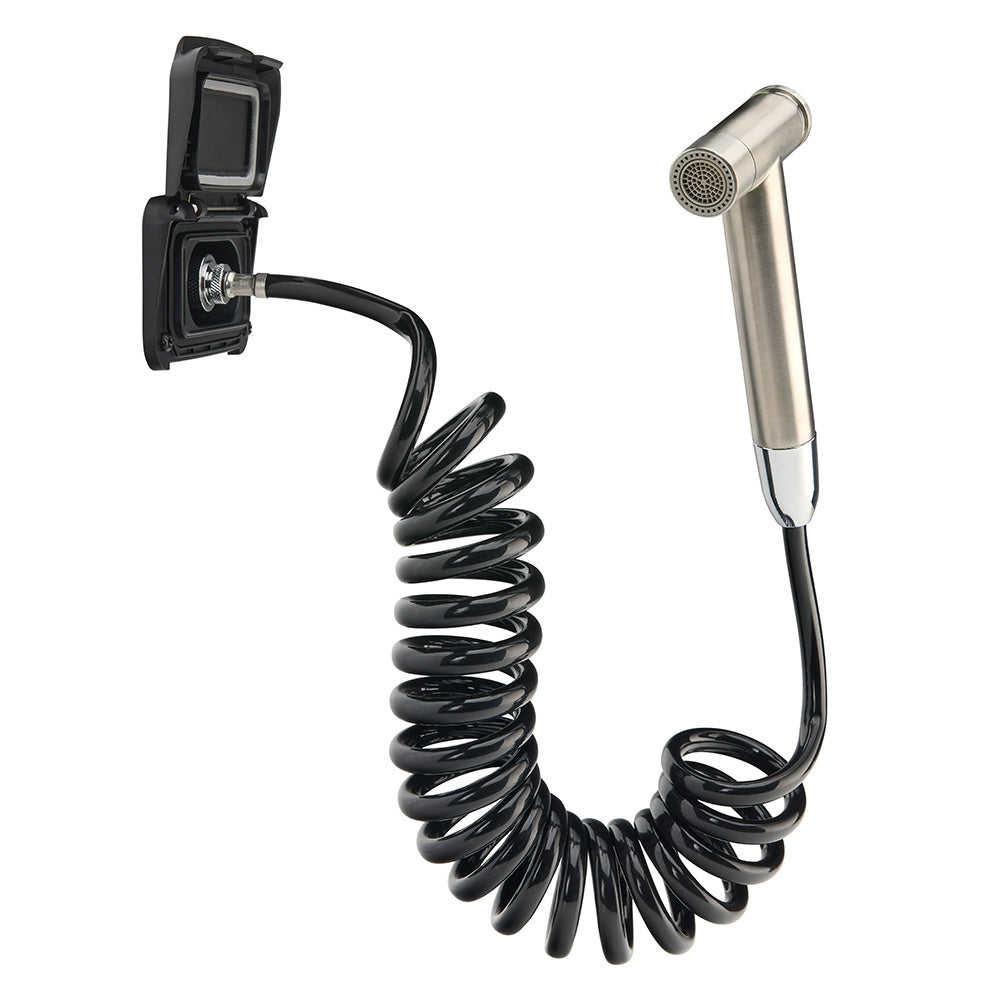

The included 3m (10ft) coiled hose and stainless-steel shower head, with two spray patterns (Jet or Shower), provide flexible, go-anywhere functionality, perfect for vanlifers, boaters, campers, and overlanders.
Built with Scanstrut's marine-grade heritage, it’s crafted from 316 stainless steel and rigorously tested for UV resistance and waterproofing (IP68 & IP69K), ensuring it can withstand whatever the elements throw your way. Like every Ventura Series product, it features a compact, uniform design that integrates beautifully with your exterior setup, matching sockets for power and solar to keep your build clean and cohesive.

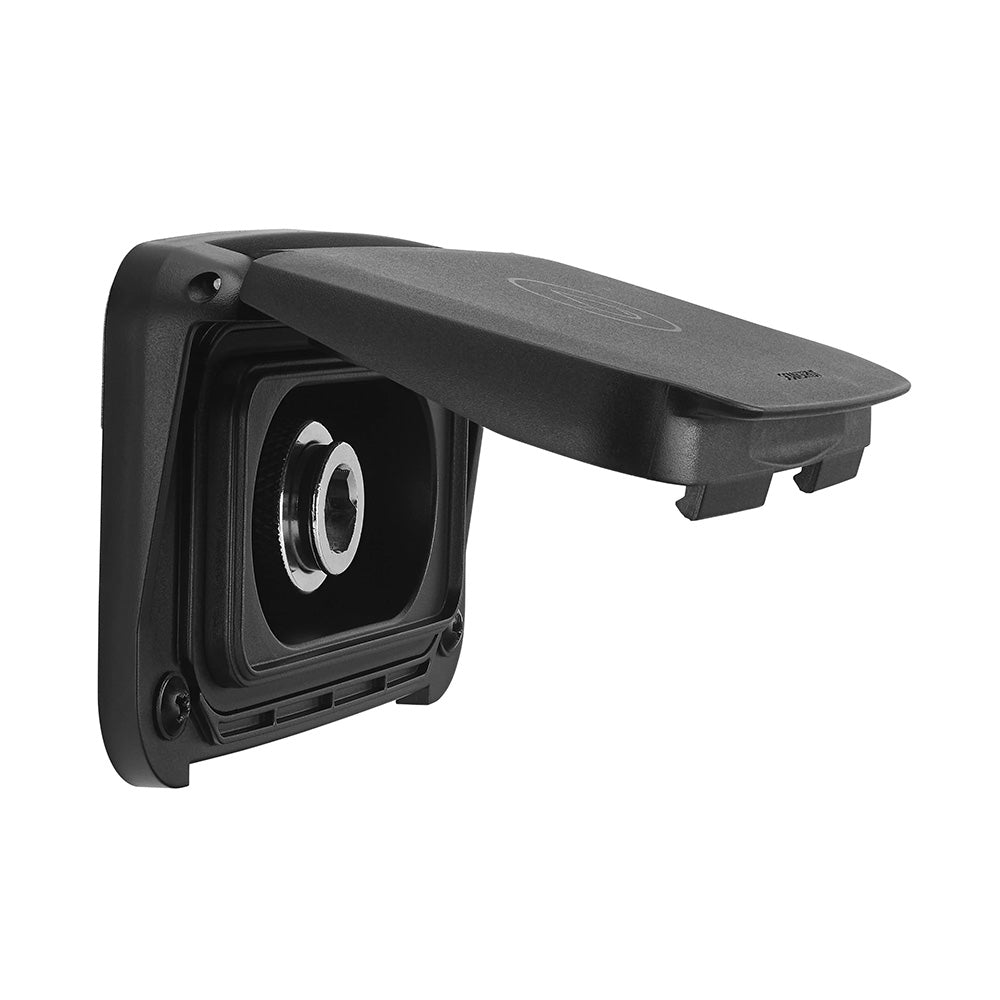

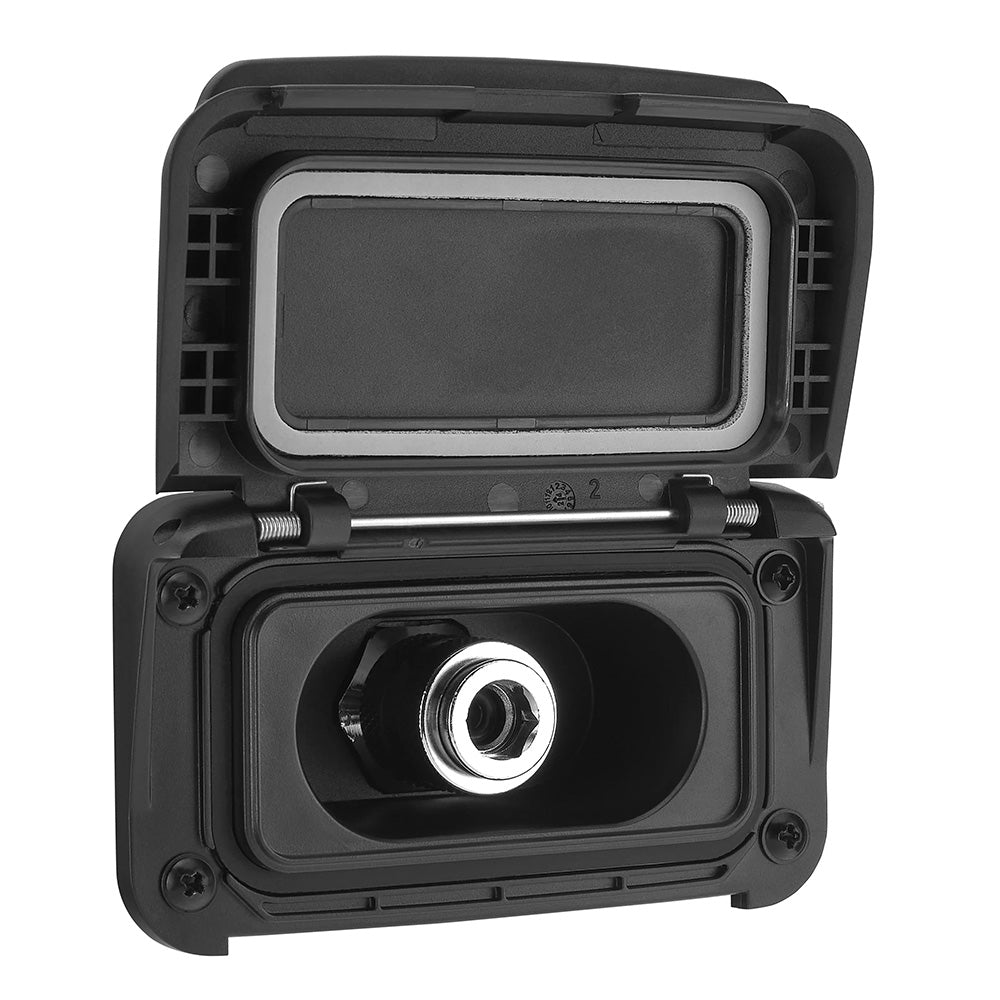

Housing Features:
- IP68, IP69K Waterproof (Cover Closed)
- Quick-Connect Nickel-Plated Brass Coupling
- Marine-Grade 316 Stainless Steel Components
- Self-Sealing Valve

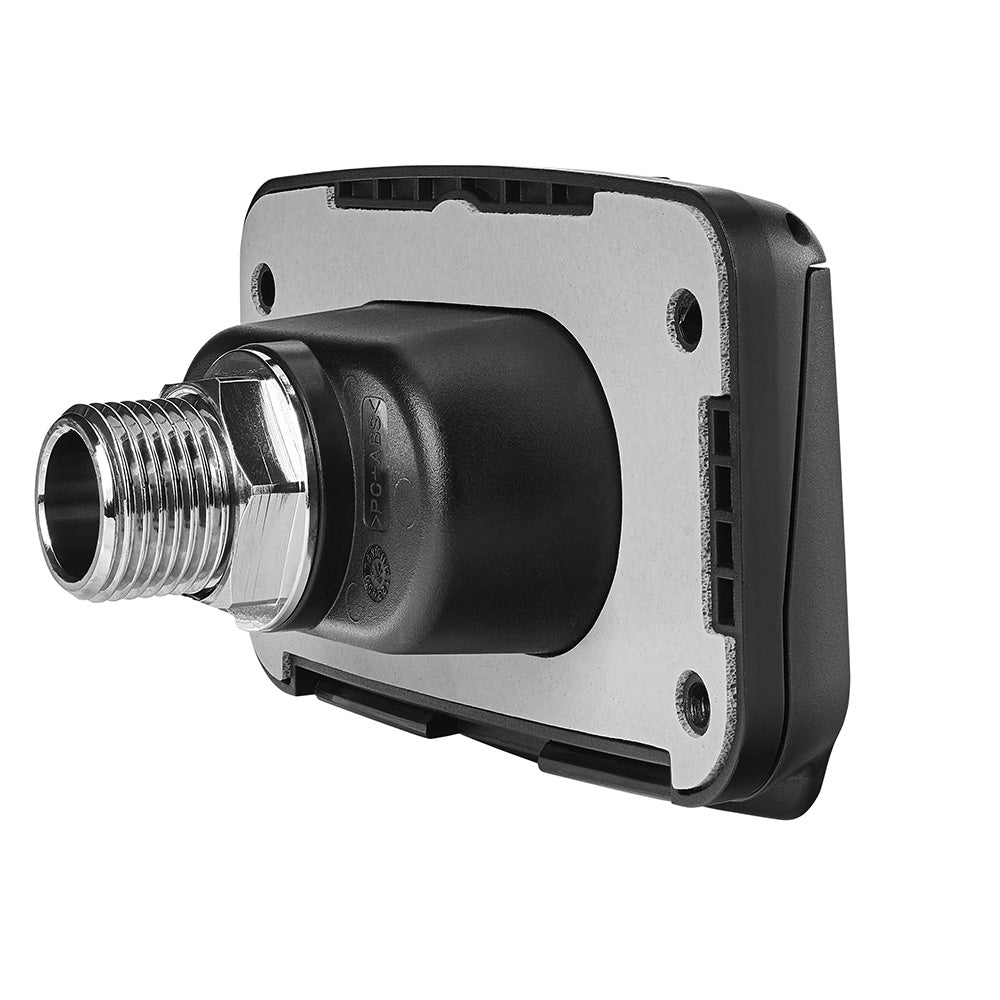

- Water Supply Thread Size 1/2” BSP
- Standard 38mm (1.50”) Holesaw Installation
- Built-in gasket for a watertight seal
- Spring-loaded lid
- 90° Holding Bump-Feature
- Easy install
Sprayer Features:
- Sprayer Type - Full stainless-steel construction, Locking flow switch, multi-adjustable spray pattern jet or shower.
Specifications
Specifications
Identification
| MPN | SC-V-W1 |
|---|---|
| Barcode | 5060114799516 |
General
| Max Water System Pressure | 8 BAR (115PSI) |
|---|---|
| Hose Type | 3m (10ft) length, coiled PU material |
| Sprayer Type | Full stainless-steel construction, Locking flow switch, Adjustable spray pattern |
| Supplied with 3m (10ft) Coiled Hose | Multi-Pattern Stainless Steel Shower/Sprayer Head. |
Physical
| Hose Diameter | 9mm (0.35") |
|---|
Certifications & Protection
| Waterproof Rating | IP68, IP69K Front only when lid closed |
|---|---|
| Certification | ROHS |
