SKU:
SCH/504-11
Regular price
$11210
Unit price
Description
Description

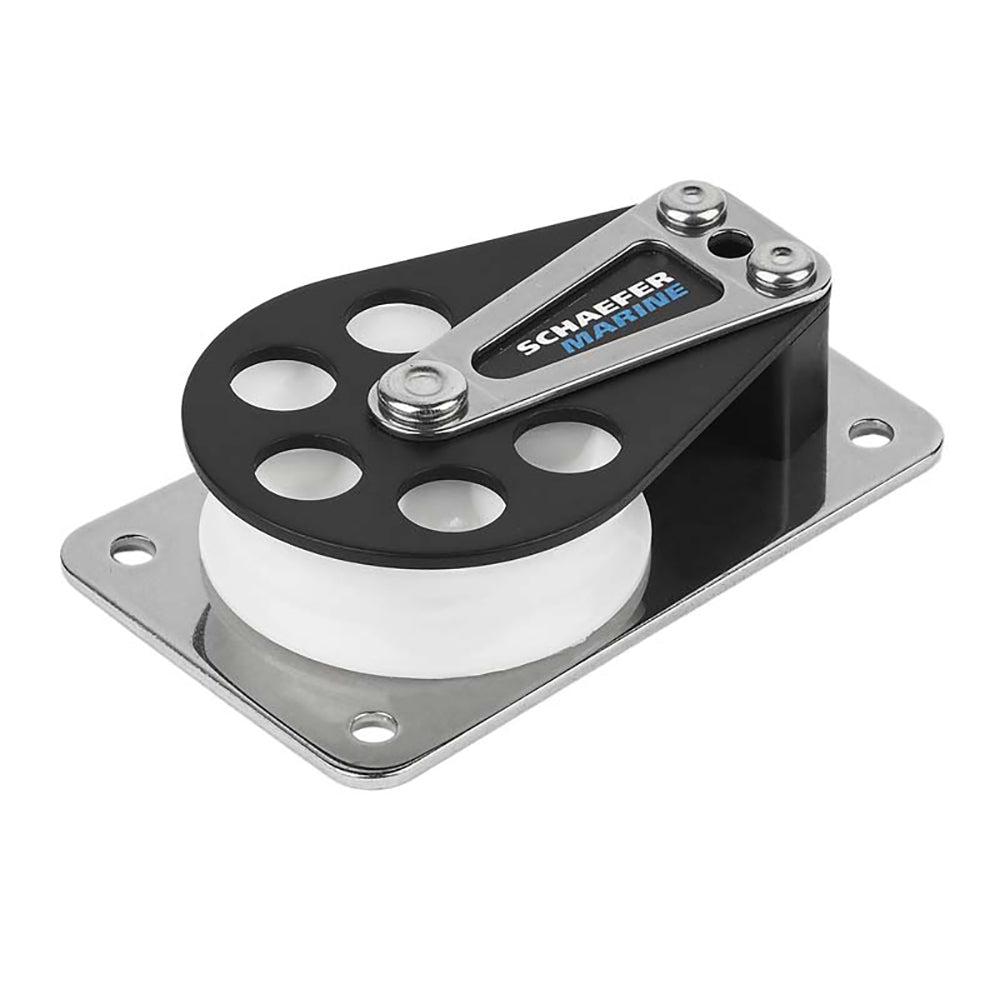

Series 5 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications
Specifications
Identification
| MPN | 504-11 |
|---|---|
| Barcode | 740507011634 |
General
| Note 1 | Sheave Diameter 2" (51 mm) |
|---|---|
| Note 2 | Max. Line 7/16" (11 mm) |
| Note 3 | Length 3-5/8" (92 mm) |
| Note 4 | Width 2-7/32" (57 mm) |
| Note 5 | Height 7/8" (22 mm) |
| Note 6 | Fasteners (4) #10 RH (5 mm) |
| Note 7 | C/C 3" (76 mm) |
| Note 8 | SWL 1750 lbs. (795 kg) |
| Note 9 | Weight 5.9 oz. (167g) |
| Note 10 | Max. Line 7/16" (11mm) |
