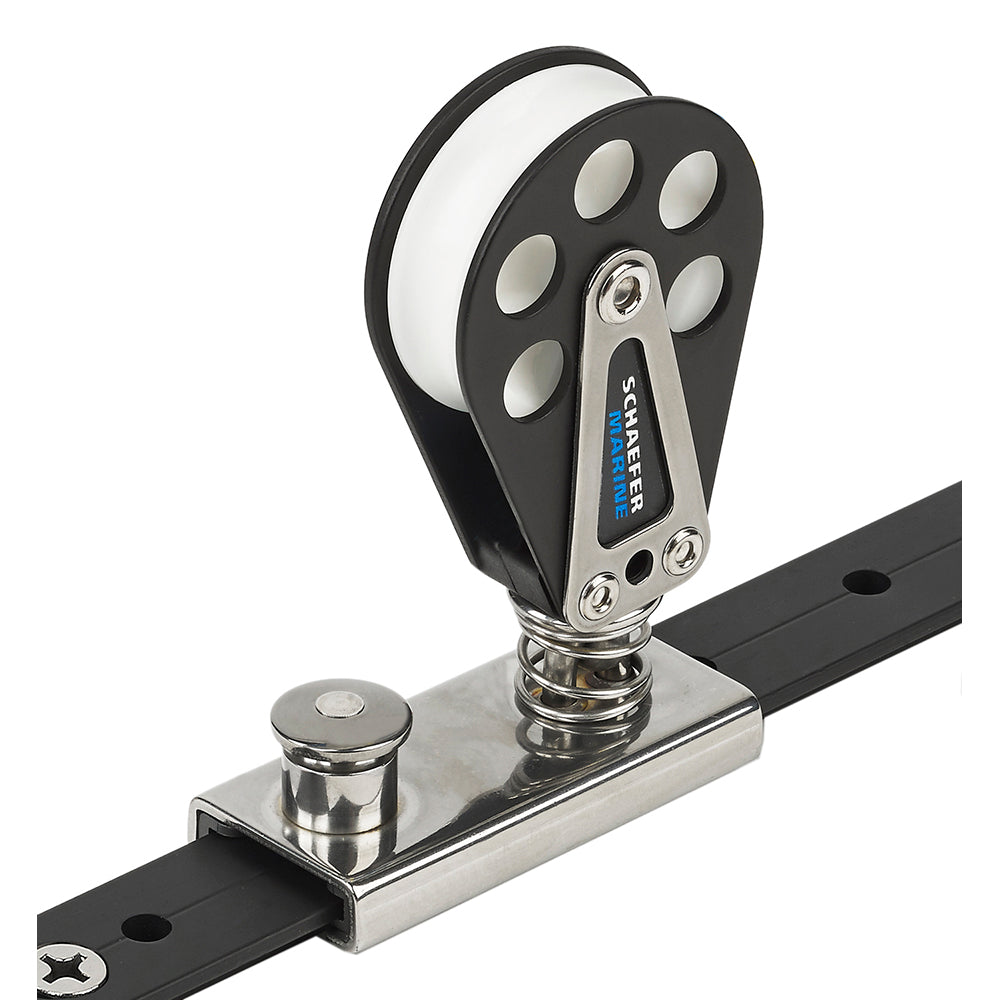

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track
Regular price
$27145
Unit price
SKU:
SCH/504-82
Regular price
$27145
Unit price
Description
Description
Spring Loaded/Lined Slide/Aluminum for 1" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications
Specifications
Identification
| MPN | 504-82 |
|---|---|
| Barcode | 740507020902 |
General
| Note 1 | Track Size 1" x 1/8" (25 mm x 3 mm) |
|---|---|
| Note 2 | Max. Boat Length- 27' (8m) |
| Note 3 | Max. Boat Weight- 5000 lbs. (2270 kgs) |
| Note 4 | Sail Area- 315 sq. ft (29 m2) |
| Note 5 | Sheave Diameter 2" (51 mm) |
| Note 6 | Max Line 7/16" (11 mm) |
| Note 7 | Length 3" (76 mm) |
| Note 8 | Width 1-1/4" (31 mm) |
| Note 9 | Height 4-5/32" (105 mm) |
| Note 10 | Bearing Height 2-7/32" (56 mm) |
| Note 11 | SWL 1750 lbs. (795 kg) |
| Note 12 | Weight 7.0 oz. (198 g) |
