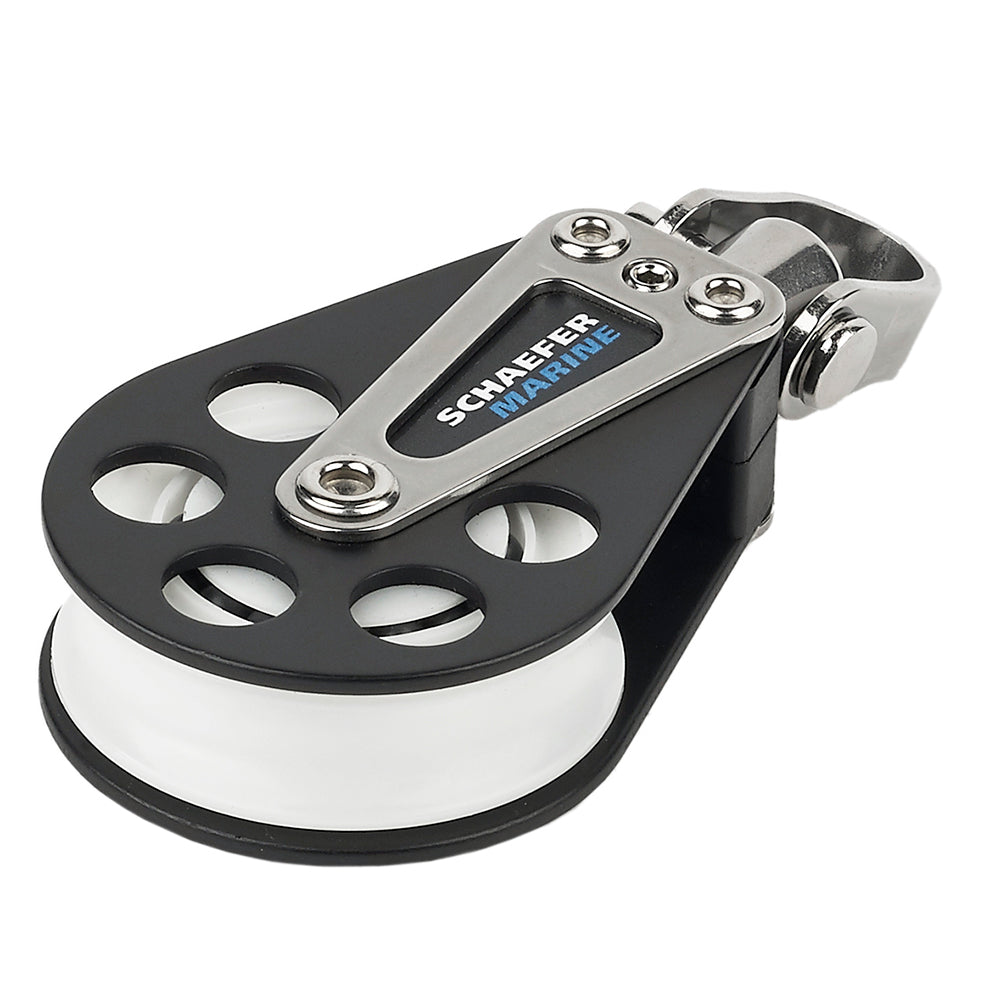

Single Ball Bearing Block
Single block with aluminum cheeks and ball bearing sheave. Delrin™ ball bearing sheave ensures low-friction operation. Swivel head may be locked in place to avoid twist.
Specifications
Specifications
Identification
| MPN | 506-05 |
|---|---|
| Barcode | 740507012075 |
General
| Note 1 | Sheave Diameter 2" (51mm) |
|---|---|
| Note 2 | Thickness 15/16" (24mm) |
| Note 3 | Width 2 1/8" (54mm) |
| Note 4 | Length 4 13/32" (112mm) |
| Note 5 | SWL 1500 lbs. (680kg) |
| Note 6 | Weight 5oz. (142g) |
| Note 7 | Max Line 7/16" (11mm) |
