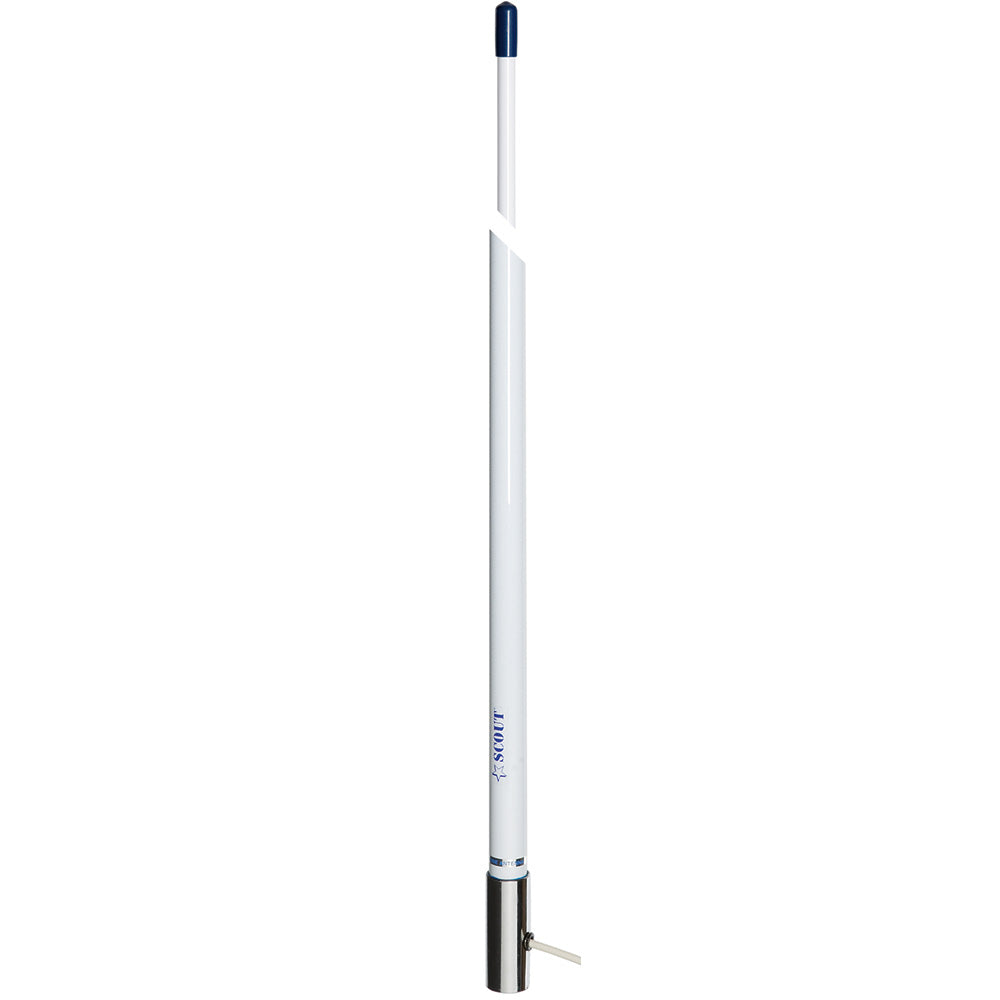

8' White VHF Antenna 6dB Stainless Steel Ferrule with 5M RG-58 Coax Includes PL-259 KS-42
The classical 2,4 m (8’) VHF marine antenna has been totally redesigned by Scout to set a new benchmark in terms of reliability and performance.
The KS-42 is built with a heavy-duty 1,5 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique. Standard thread 1” x 14, chrome brass ferrule. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board. Suggested for medium and large-sized boats.
Features:
- Color: White
- Foam injected – 100% WATERPROOF – IP69
- 5 m coaxial cable RG-58 CU MIL
Specifications
Specifications
Identification
| MPN | PF AN NVHF00007T |
|---|---|
| Barcode | 8052990121816 |
General
| Frequency | 156-162 MHz |
|---|---|
| Impedance | 50 ohms |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 6 dB |
| DC ground | Yes |
| Whip material | Fiberglass |
| Coaxial cable | 5 m (16′) RG-58 CU MIL |
Physical
| Electrical length | 1/2 λ |
|---|---|
| Mounting | 1″ x 14 thread |
| Length | 2,4 m (8′) |
| Weight | 0,86 kilo |
Electrical
| Max power input | 50 W |
|---|
