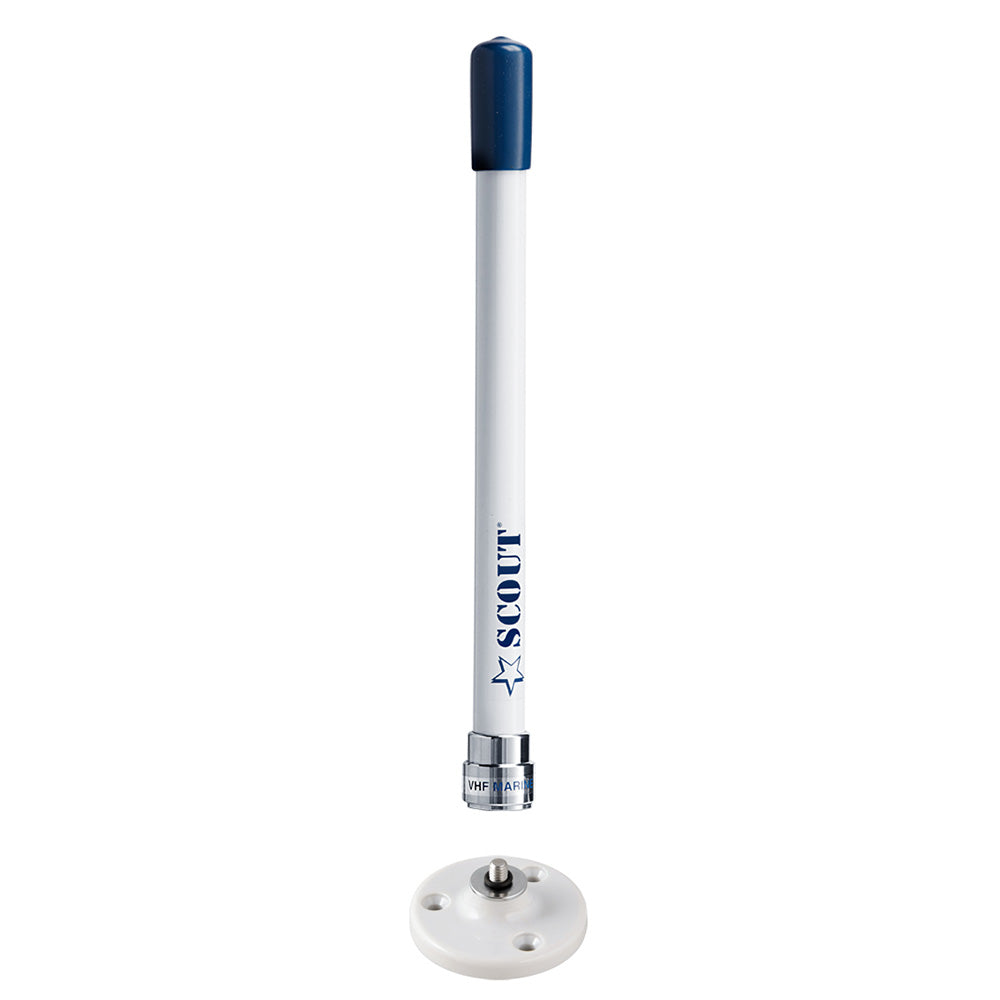

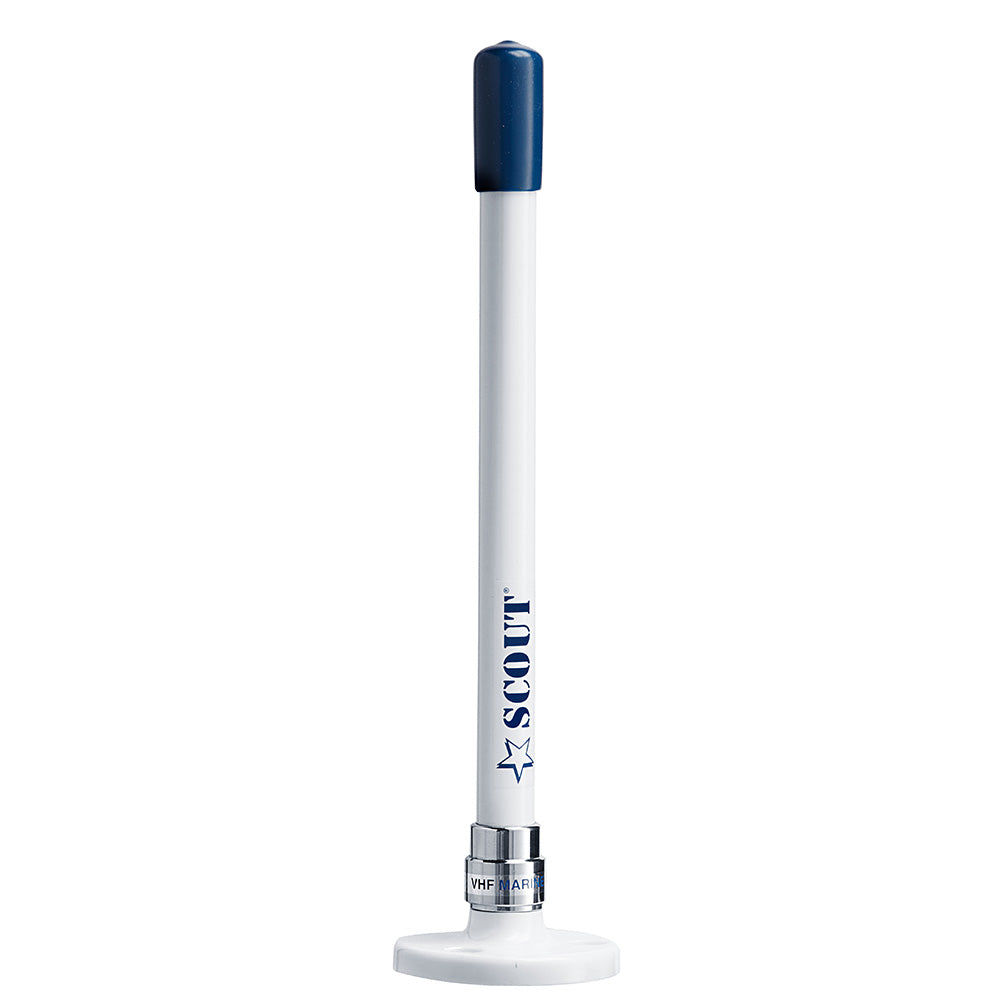

9" Stubby White VHF Antenna with Quick Mount Includes 5M RG-58, Mount & Integrated Connector KS-10
Fine technical construction, great design, and convenient size all in one: this is the new KS-10, the short, removable VHF antenna that many boaters have been asking for. With its total length of only 22 cm (9”), the KS-10 is the shortest VHF antenna of the Scout range; moreover, the whip can be easily removed by hand to facilitate trailering, coverage, and storage. The anti-UV filter avoids the deterioration of the coloring and keeps the antenna bright white.
The mount of the KS-10 (6 cm diameter) has been designed to allow an easy and quick installation on any type of flat surface, and the inner rubber gasket prevents leakage.
The antenna is supplied together with a 5 m (16’) RG-58 coax cable and PL-259 male connector.
Features:
- 100% waterproof antenna
- The fiberglass whip is easy to remove
- Waterproof mount included
- Fiberglass whip with anti-UV filter
- 22 cm length
- 5 m (16′) RG-58 CU MIL coaxial cable
Specifications
Specifications
Identification
| MPN | PF AN NVHF00025 |
|---|---|
| Barcode | 8052990120987 |
General
| Frequency | 156-162 MHz |
|---|---|
| Impedance | 50 ohms |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | Unity Gain |
| DC ground | Yes |
| Whip material | Fiberglass |
| Cable | 5 m (16′) RG-58 CU MIL |
Electrical
| Max power input | 50W |
|---|
Physical
| Mounting | Waterproof mount included |
|---|---|
| Length | 22 cm (9″) |
| Weight | 0,10 kg |
