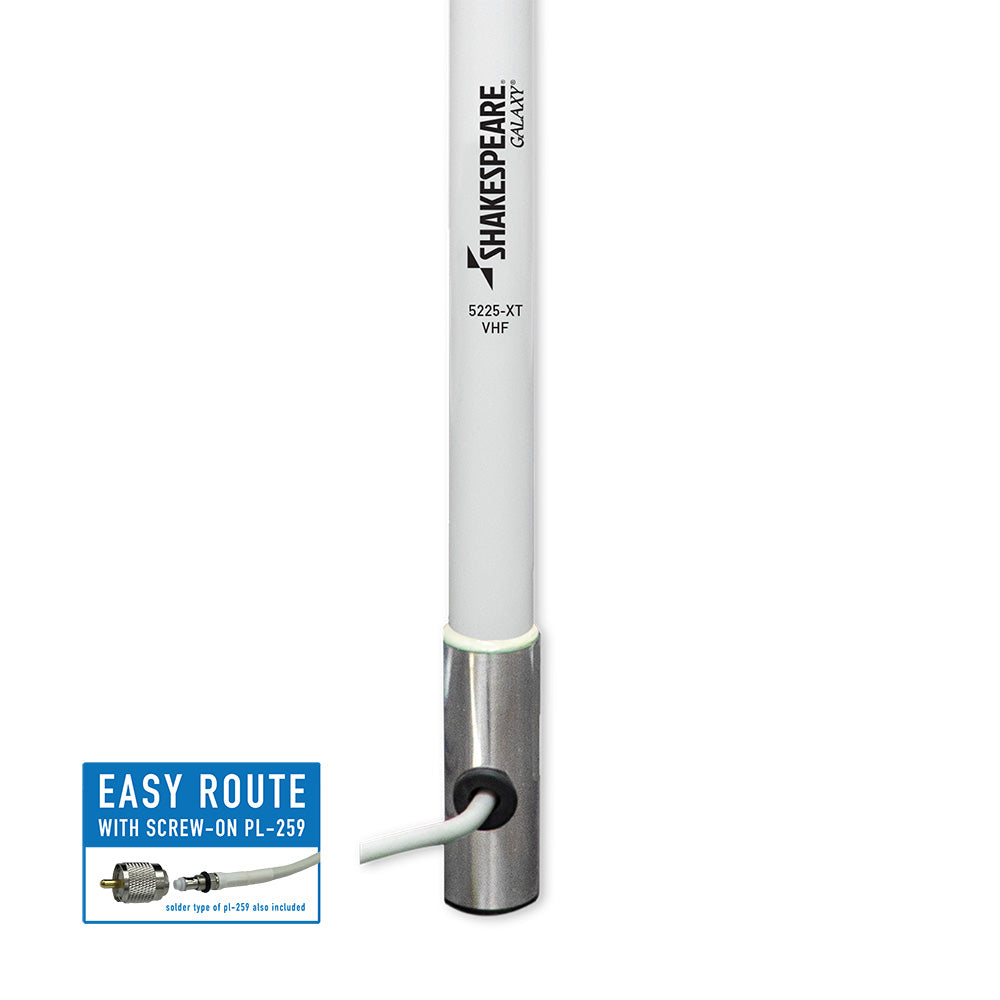

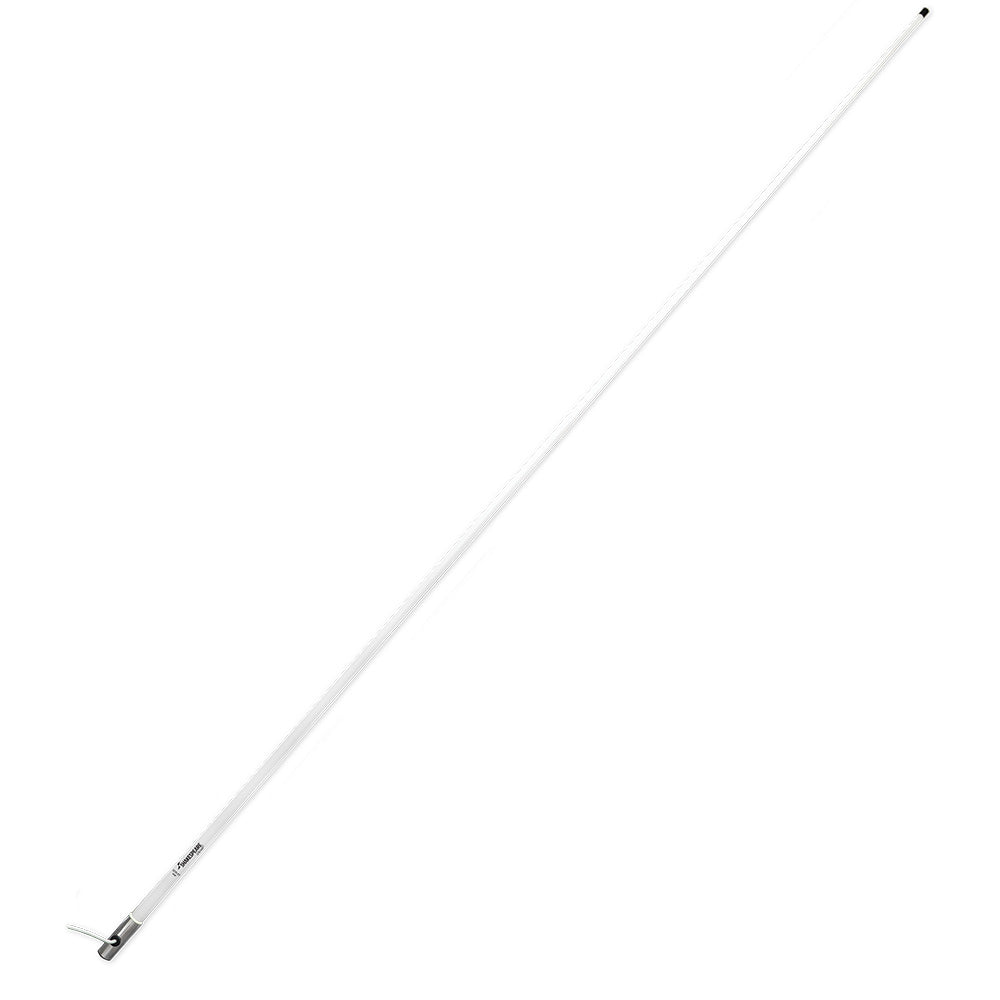

Galaxy 5225-XT 8' VHF Antenna - 6dB Gain - Reduced Length
EXTRA TOUGH!
Shakespeare's best 8', 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.
Features:

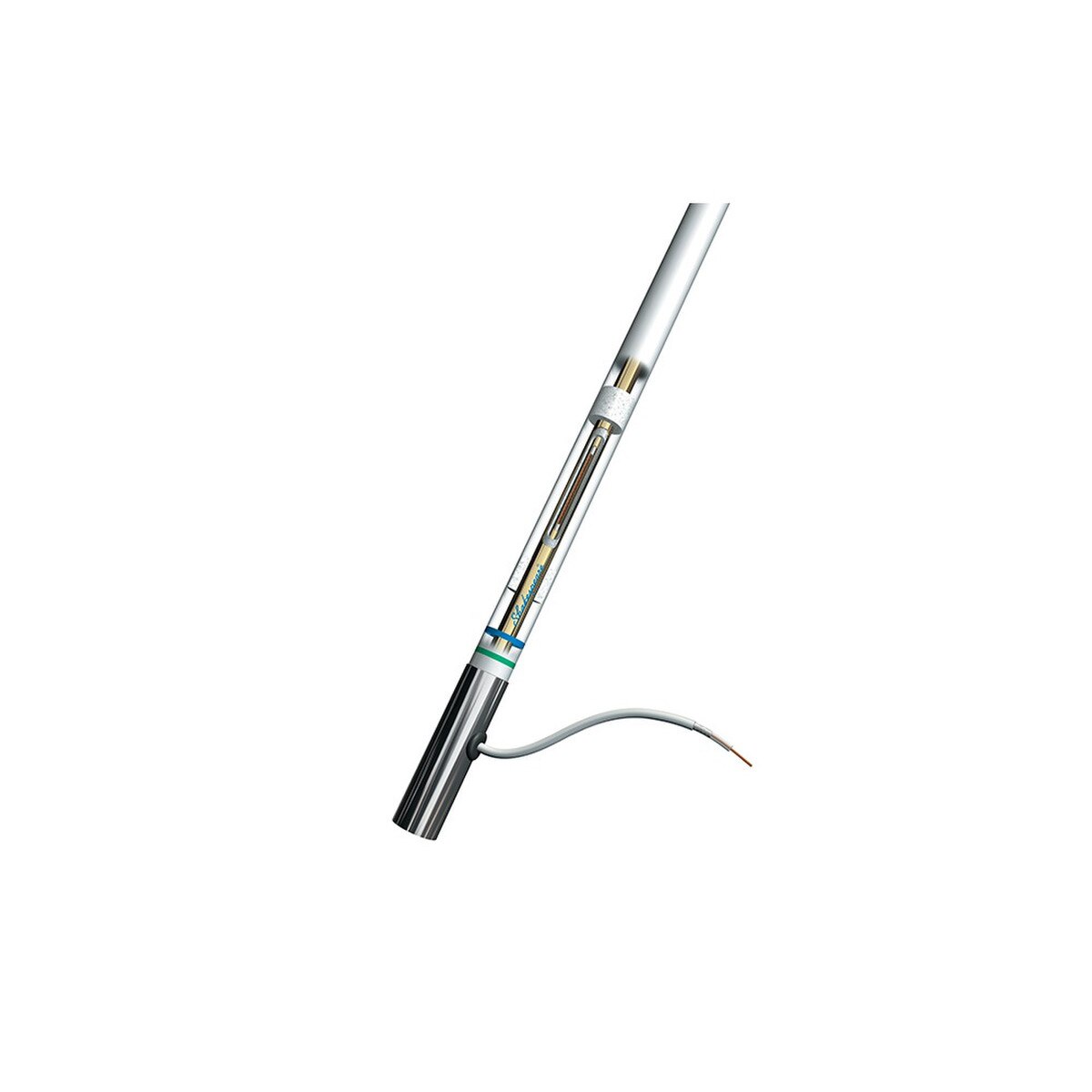

- Collinear-phased 5/8 wave elements
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- 20' RG-8/X low-loss cable plus a PL-259 connector
- One section
- Includes FME cables
Specifications
Specifications
Identification
| MPN | 5225-XT |
|---|---|
| Barcode | 719441200220 |
Performance
| Gain | 6dB |
|---|---|
| Frequency | VHF Marine Band |
| Impedance | 50 ohms |
Physical
| Bandwidth | 3 MHz within 2.0:1 VSWR |
|---|---|
| Suggested mount | Shakespeare Style 4187 Ratchet Mount |
General
| SWR | Nominally 1.5:1 at 156.8 MHz |
|---|---|
| Max Input (Watts) | 100 watts |
| DC Ground | YES |
| Polarization | Vertical |
Certifications & Protection
| Shakespeare Limited Warranty | 5 years |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
Shakespeare
Shakespeare 4187HD Stainless Steel Heavy Duty Ratchet Mount
4187HD
Shakespeare
Shakespeare 5187 Stainless Steel Ratchet Mount
5187
Shakespeare

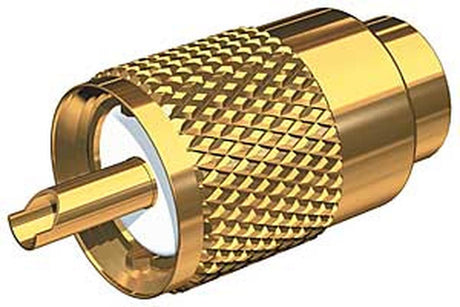

PL-259-8X-G
Shakespeare
Shakespeare PL-259-CP-G - Solderless PL-259 Connector for RG-8X or RG-58/AU Coax - Gold Plated
PL-259-CP-G
Shakespeare

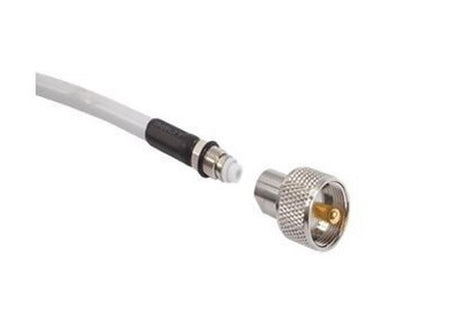

Shakespeare PL-259-ER Screw-On PL-259 Connector f/Cable w/Easy Route FME Mini-End
