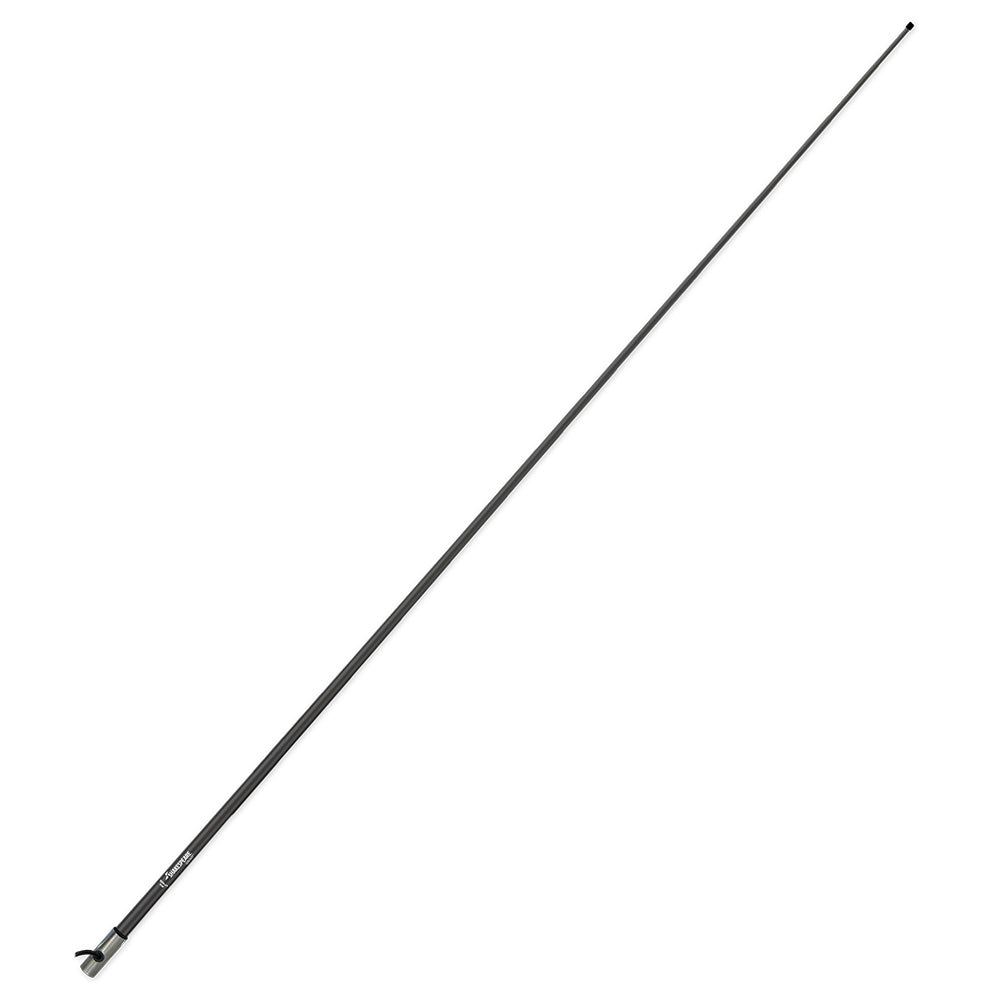

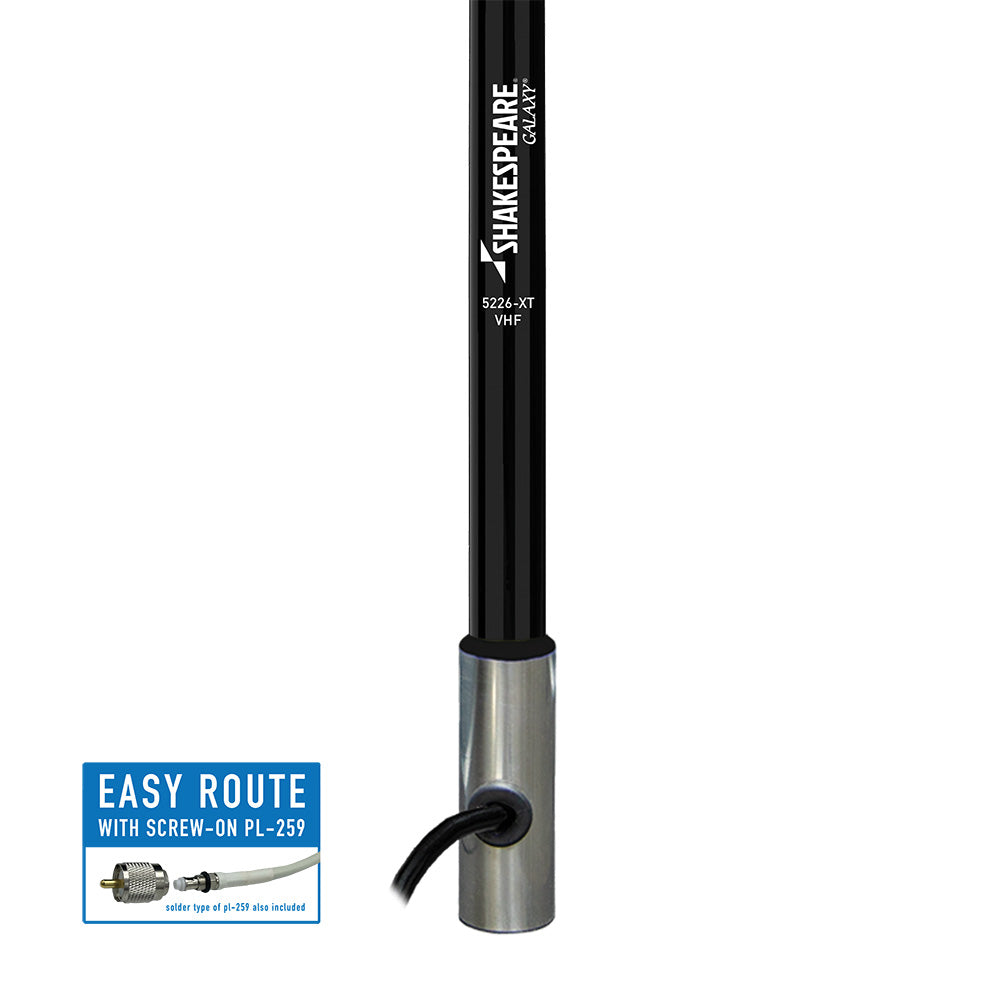

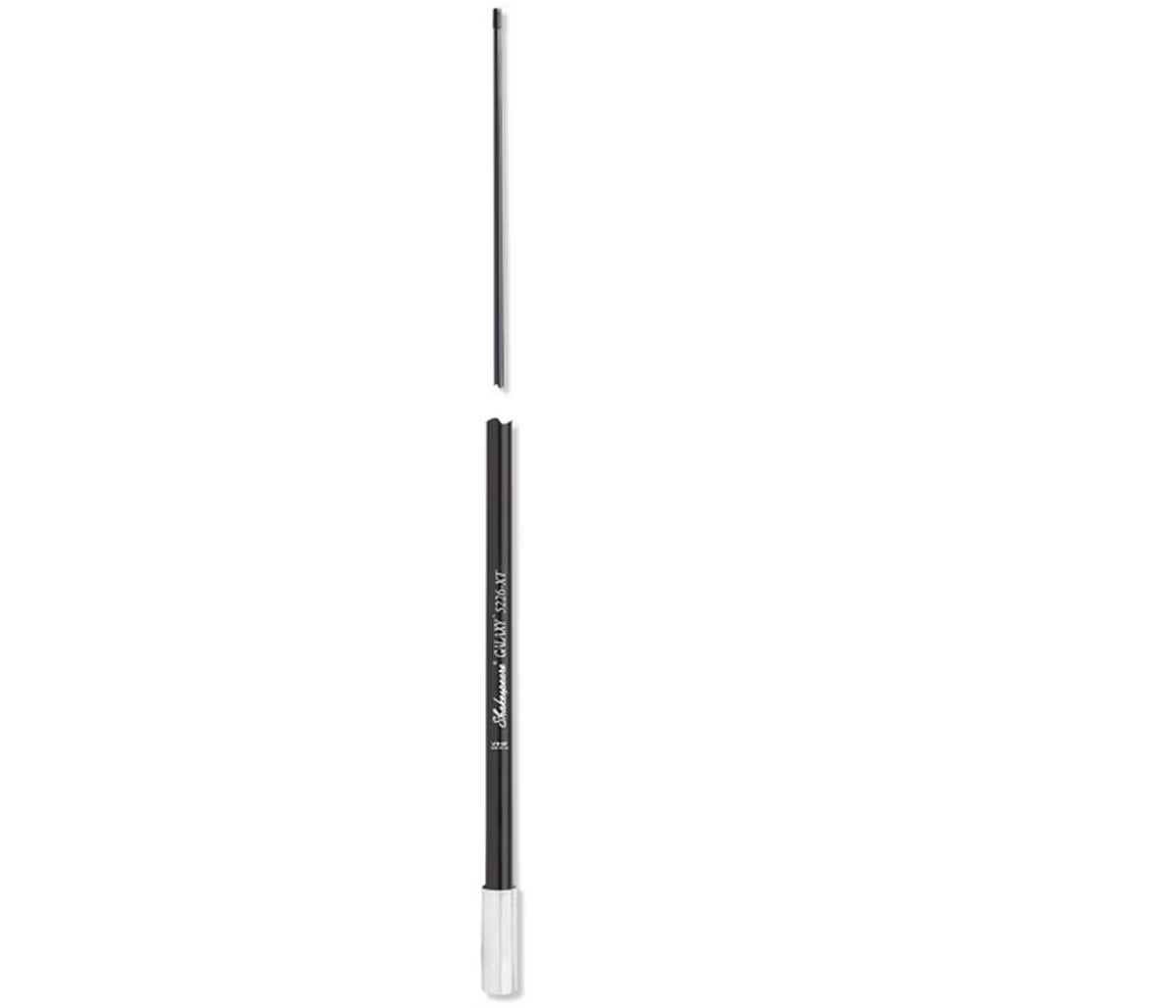

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain
EXTRA TOUGH!
This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.
Features:
- Collinear-phased 5/8 wave elements
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- 20' RG-8/X low-loss cable plus a PL-259 connector
- One section
Specifications
Specifications
Identification
| MPN | 5226-XT |
|---|---|
| Barcode | 719441200237 |
Performance
| Frequency | VHF Marine Band |
|---|---|
| Impedance | 50 ohms |
| Gain | 6 dB |
Physical
| Bandwidth | 3 MHz within 2.0:1 VSWR |
|---|---|
| Height (feet) | 8 |
| Suggested mount | Shakespeare Style 4187 Ratchet Mount |
General
| SWR | Mominally 1.5:1 at 156.8 MHz |
|---|---|
| Max Input (Watts) | 100 watts |
| DC Ground | YES |
| Polarization | Vertical |
Certifications & Protection
| Shakespeare Limited Warranty | 5 years |
|---|
