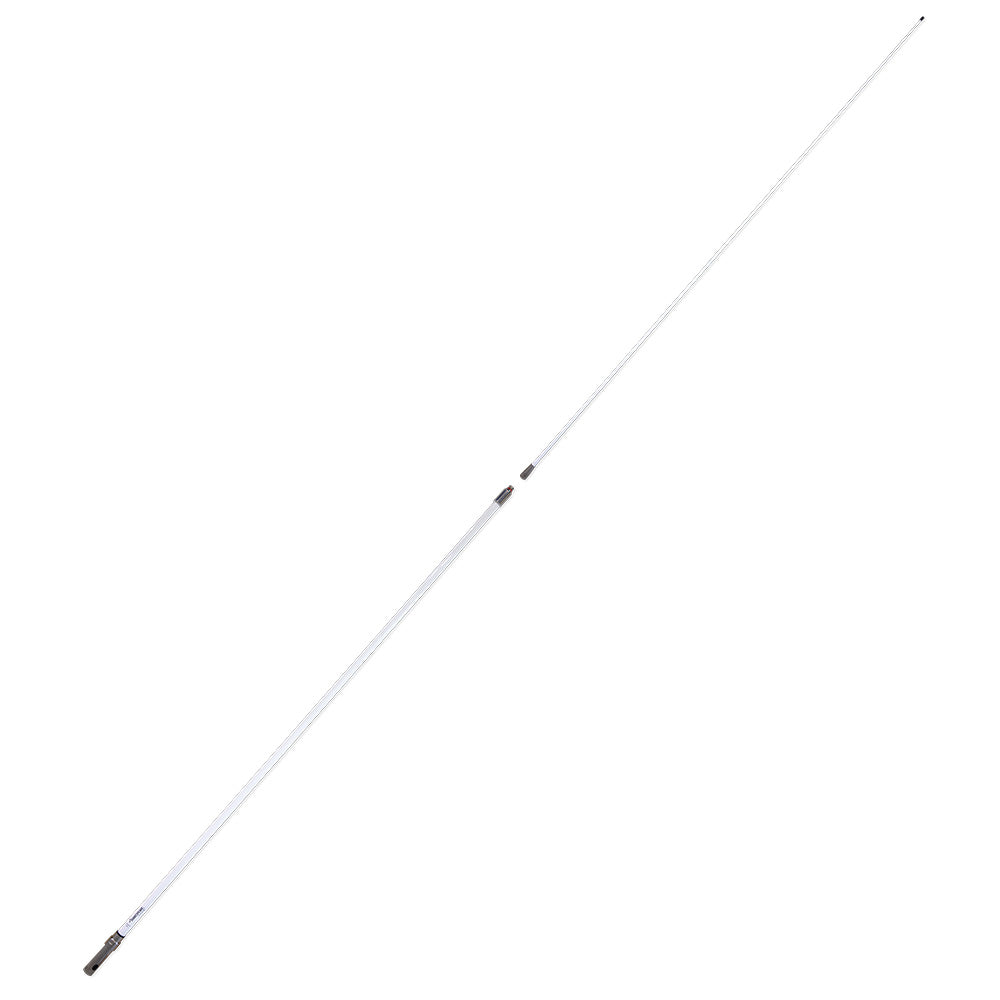

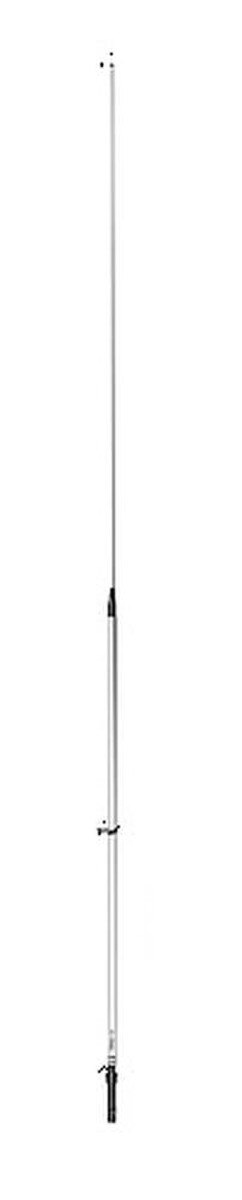

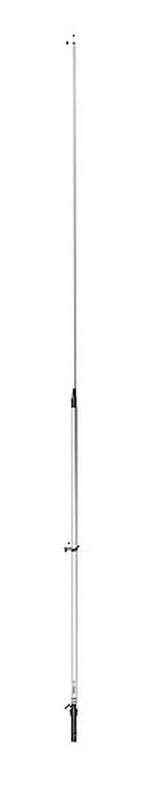

6018-R Phase III VHF Antenna - 17′ 6″ (5.3M) VHF Marine Band 9dB Gain
Good communication over the VHF Marine Band depends on antenna height, quality and dB Gain. This high performing Phase III™ marine antenna is a powerhouse providing all of those necessities in our rugged, high-strength, foam-filled fiberglass radome for stability in high seas, high winds and high speeds.
Features:
Specifications
Specifications
Identification
| MPN | 6018-R |
|---|---|
| Barcode | 719441200657 |
General
| Design | Collinear-phased 1/2-wave elements with choking sleeve |
|---|---|
| Connector Type | SO-239 |
| DC Grounding | No |
Physical
| Height | 18' (5.48m) |
|---|---|
| Weight | 20lbs (9kg) |
| Suggested Mounting | 409-R or 410-R |

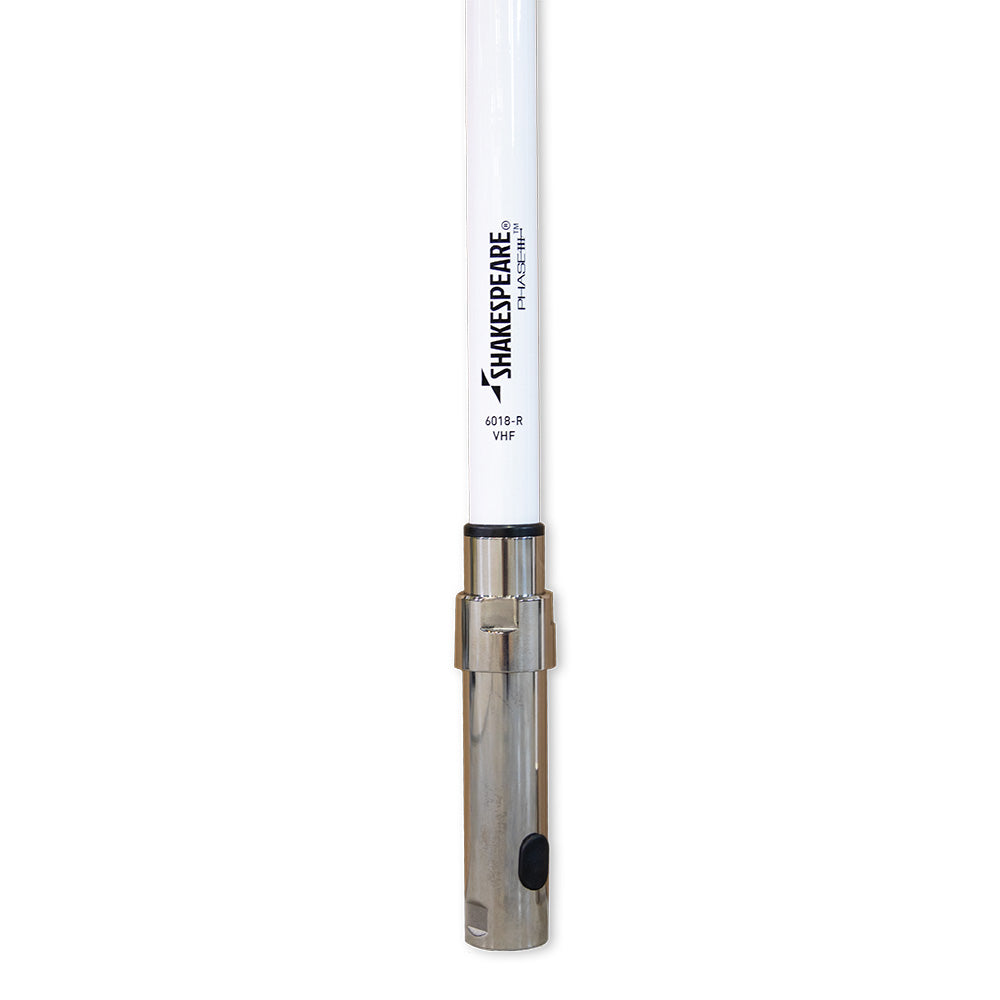

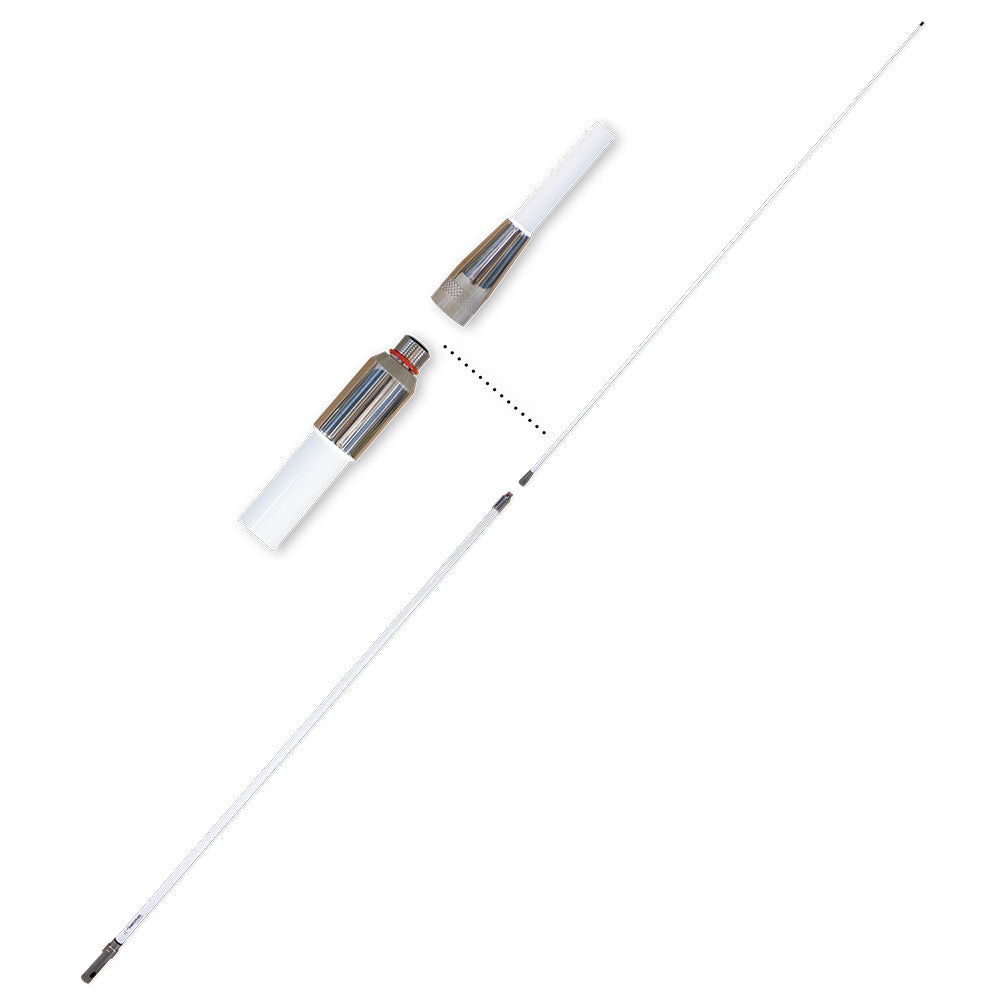

| Silver-plated outer conductor, copper inner conductor• Stainless steel mounting sleeve• Type SO-239 connector inside mounting sleeve for easy mounting and dismounting for stowage• Suggested mount | Shakespeare® Style 409-R or 410-R Mounting Kit• Two sections: Base 110″, Tip 110″ |
Performance
| Gain | 8dB |
|---|---|
| Impedance | 50 ohms |
Electrical
| Max Input Power | 150W |
|---|
Certifications & Protection
| Shakespeare Limited Warranty | 8 years |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
