SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must Be Programmed
FCC-Required AIS Programming
The FCC requires all AIS units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.
Complete the AIS Programming Form
Need This Product Installed?
Need This Product Installed?
We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL
SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must...
Description
Description

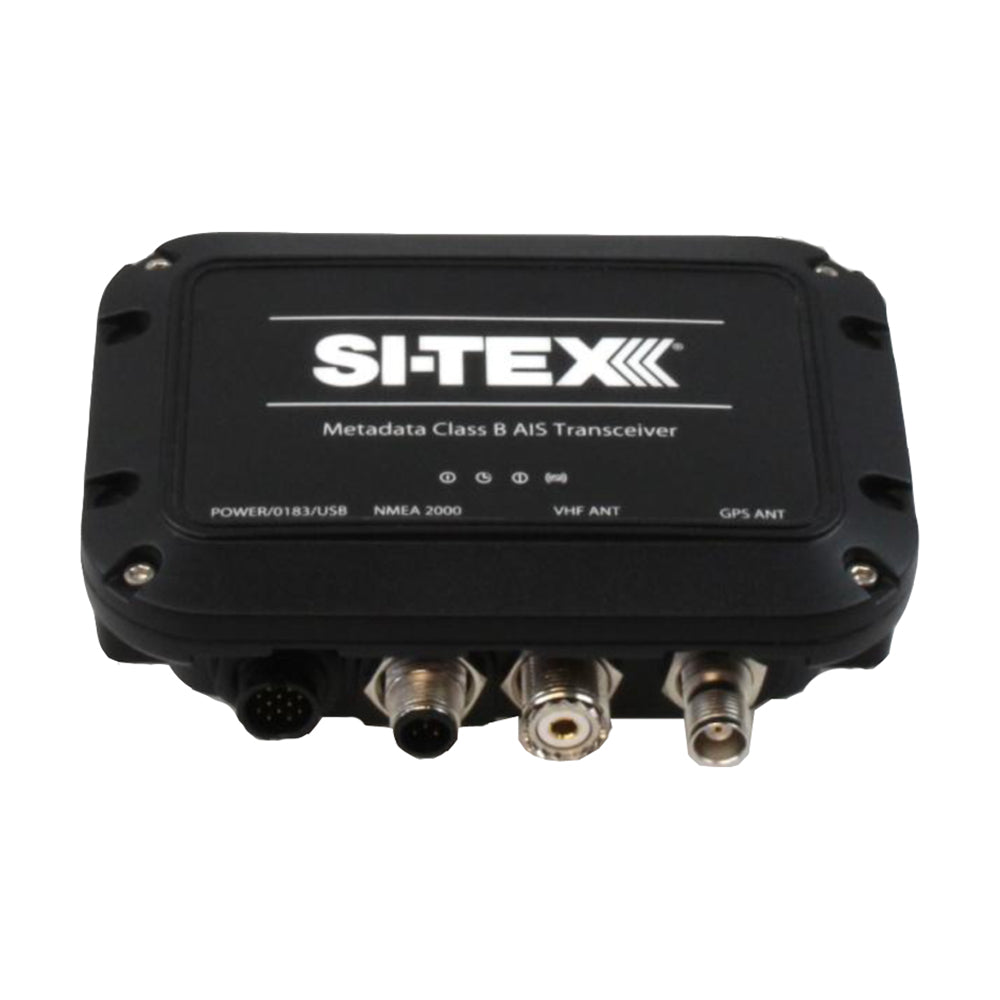

MDA-1 Metadata Class B AIS Transceiver
Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.
Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It also features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data.
Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna.
Specifications
Specifications
Identification
| MPN | MDA-1 |
|---|---|
| Barcode | 010407510484 |
Data Interfaces
| Note 1 | USB |
|---|---|
| Note 2 | NMEA2000 |
| Note 3 | IEC61162-1 (NMEA0183) output, 38400baud |
| Note 4 | IEC61162-1 (NMEA0183) input, 4800baud |
| Note 5 | Silent mode switch input |
Supplied with
| Note 1 | 2m power and NMEA0183 cable |
|---|---|
| Note 2 | User manual and quick start guide |
| Note 3 | Product CD |
| Note 4 | Fixing screws |
