Simrad | SKU: SIM/000-13233-001 | Barcode: 9420024154038

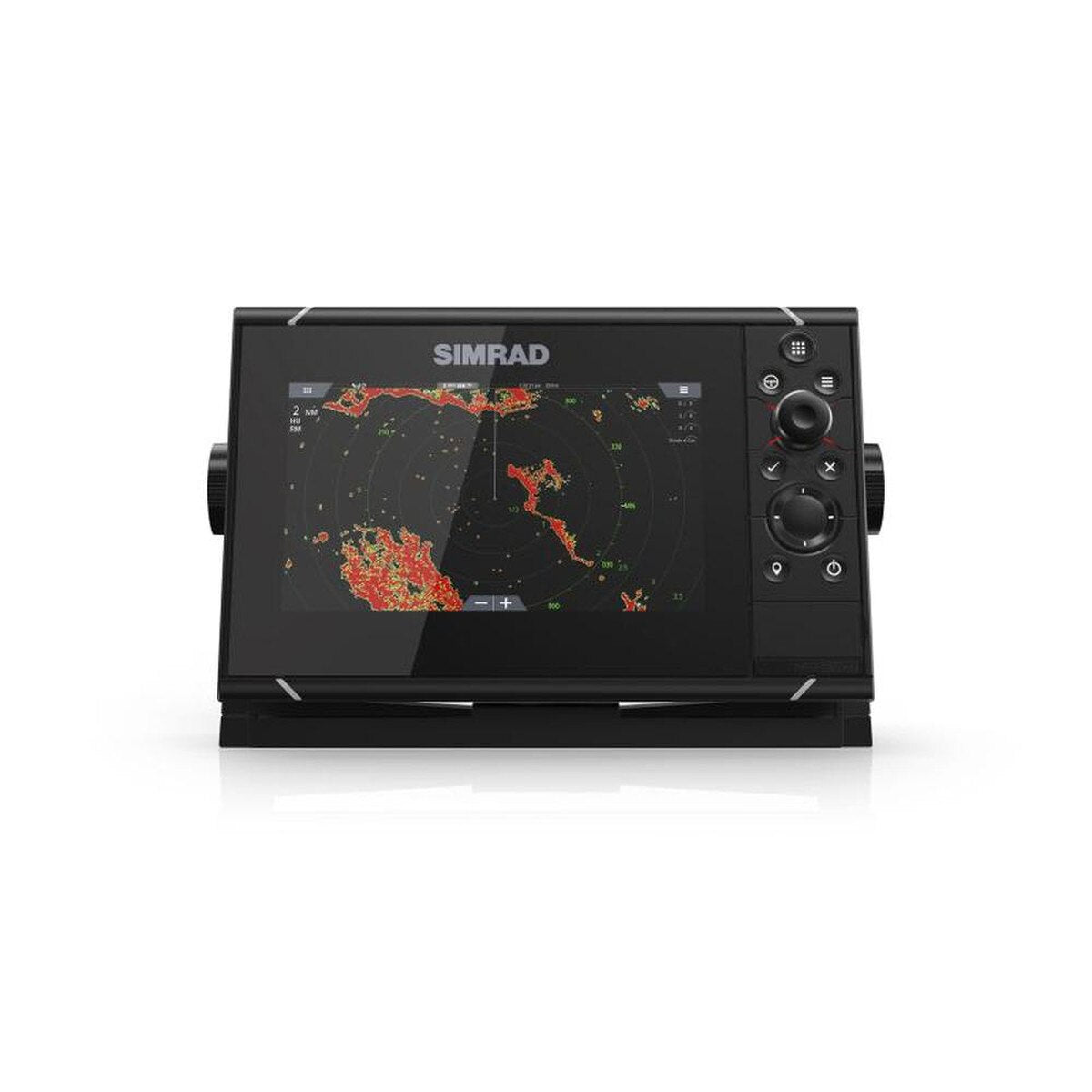

NSS7 evo3

Name: NSS7 evo3
Brand: Simrad
SKU: SIM/000-13233-001
Price: 999.99 USD
Availability: InStock

7" MFD w/ Built-In Sonar & Insight Charts

$999⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

This high definition 7 in display delivers a big picture view of high-detail, C-MAP US Enhanced inland and coastal charts, Radar, Active Imaging Sonar and more. Perfect for larger powerboats and sport fishing center consoles, NSS evo3 has integrated wireless connectivity and an HDMI out, allowing you to mirror your display to your smartphone, tablet, or an on-board TV.

7" MFD w/ Built-In Sonar & Insight Charts

Specifications

Product Series

NSS
MPN

000-13233-001
Physical

Dimensions: 9.4" x 5.9" x 3.5" (239 mm x 150 mm x 90 mm)
Weight: 2.42 lbs (1.1 kg)
Power

Input: 10-31.2v DC
Draw: 20 W
Fuse: 3 A
Screen

Touchscreen: Yes (Full Keypad Control)
Type:
Size: 7"
Resolution: 600 x 1024
Sonar

Built-In Sonar: Yes
Port: 9pin xSonic (2)
Power: 1kW
Port 1: Single channel CHIRP, 50/200 khz, HDI
Port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan
Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT+
Network: Ethernet (Yellow) (2)
NMEA 0183: Yes (Requires Accessory)
NMEA 2000: Yes
J1939: No
Analog Video In: Yes (Requires Accessory)
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 9pin xSonic / 9pin xSonic
IP Rating

IPx7
