Simrad IS42 Smart Instrument Digital Display
Regular price
$62900
Unit price
SKU:
SIM/000-13285-001
Regular price
$62900
Unit price
Description
Description

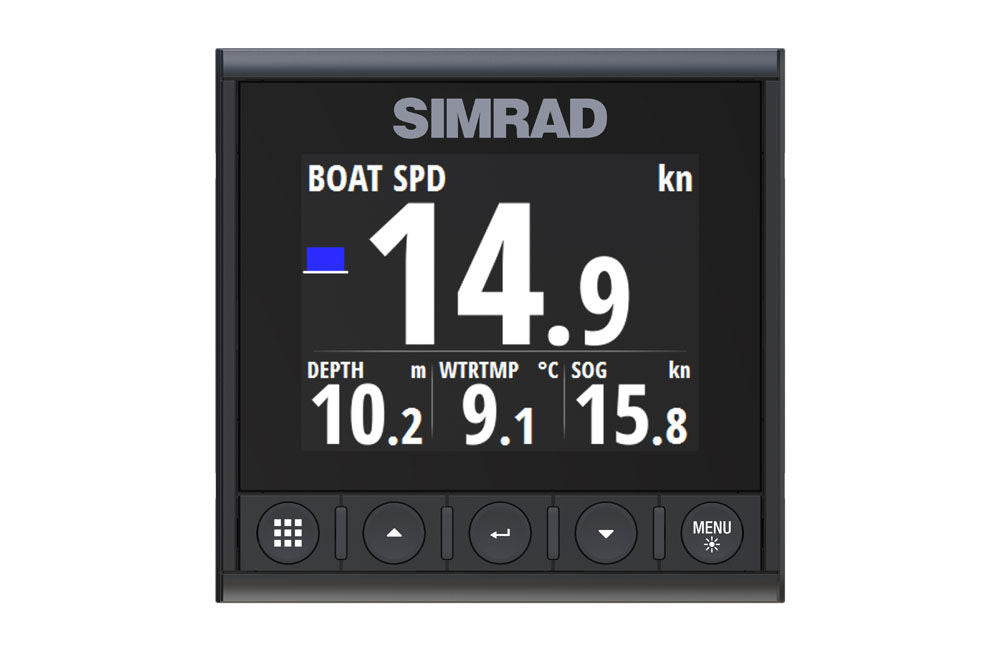

IS42 Smart Instrument Digital Display
The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.
Features:
Specifications:
The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.
Features:
- Optically bonded 4.1" color display
- Multi-purpose digital instrument
- Display wind, speed, depth, engine data, autopilot status and more
- Intuitive operation
- Easy installation
- Add an OP12 keypad for full Simrad autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
- Low-profile glass helm design
- Low power consumption
- Certified NMEA 2000® connectivity
Specifications:
Specifications
Specifications
Identification
| MPN | 000-13285-001 |
|---|---|
| Barcode | 9420024155103 |
Physical
| Dimensions | 118 x 115 x 28mm (4.6" x 4.5" x 1.1")Weight: 0.32kg (0.7lbs)Power Consumption: 1.8 Watts (MAX)Network Load: 3 LENColor: BlackDisplay Size: 4.1" (diagonal). 4:3 Aspect ratioDisplay Type: Transmissive TFT-LCD, bonded. White LED backlightDsiplay Resolution: 320 x 240 pixelsIllumination: White for day mode. Red, green, blue or white for night modeEnvironmental Protection, Waterproof: IPx7Environmental Protection, Humidity: up to 95% RHCompass Safe Distance: 300mm (1.0")Temperature Operating: -15 to +55°C (5°F to +131°F)Temperature Storage: -30 to +70 °C (-22 to +158° F) |
|---|
